200 Каталог KORLOY 2016 Металлорежущий инструмент и станочная оснастка ENG Стр.B145

Каталог KORLOY 2016 Инструмент и оснастка Стр. B145 0200 ENG Lab2u

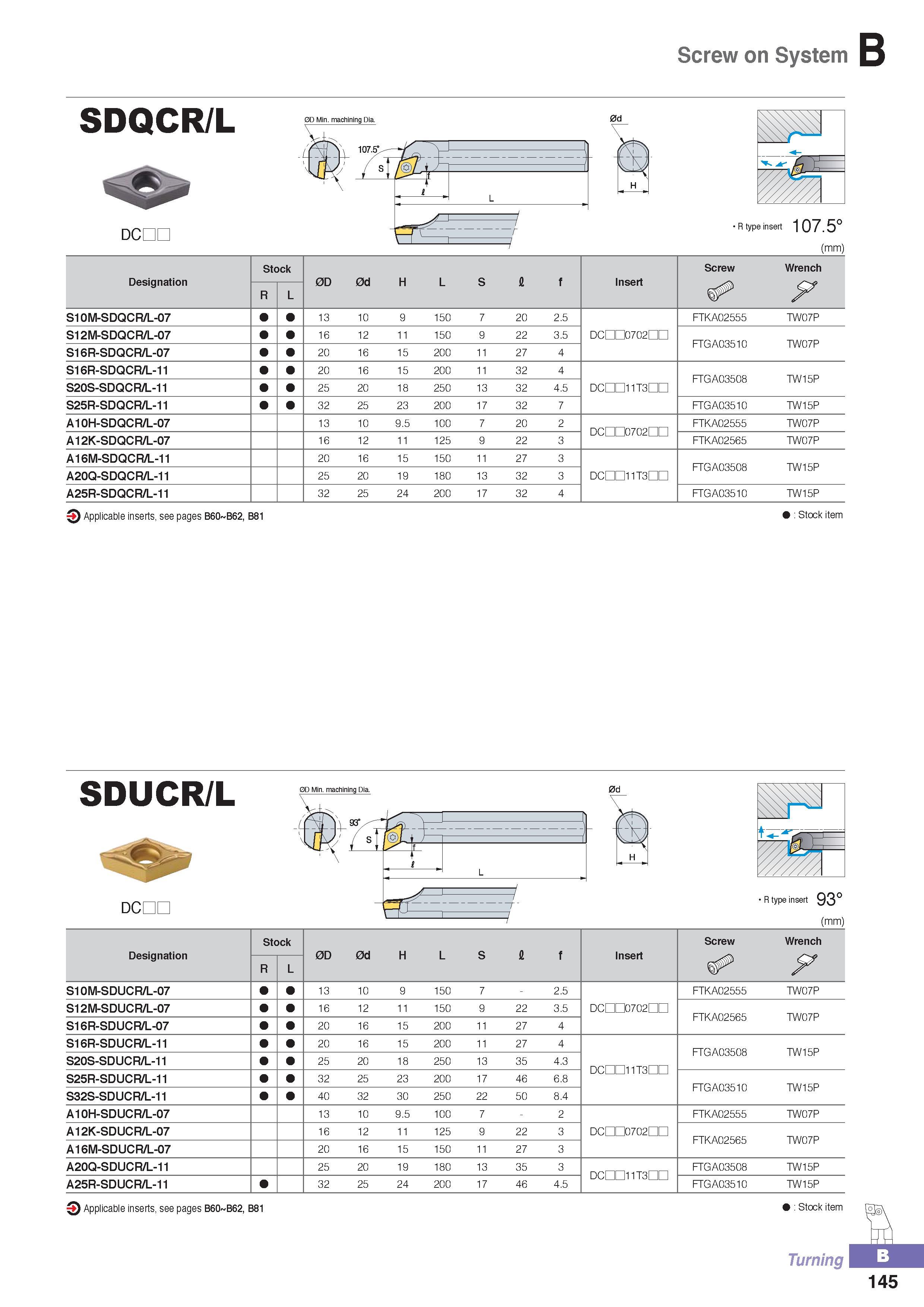

Screw on System Designation Stock 0D 0d H L S fl Insert Screw Wrench R L F S10M-SDQCR/L-07 13 10 9 150 7 20 2.5 FTKA02555 TW07P S12M-SDQCR/L-07 16 12 11 150 9 22 3.5 DGDD0702nn FTGA0351C TW07P S16R-SDQCR/L-07 20 16 15 200 11 27 4 S16R-SDQCR/L-11 20 16 15 200 11 32 4 FTGA03508 TW15P S20S-SDQCR/L-11 25 20 18 250 13 32 4.5 DGDn11T3Dn S25R-SDQCR/L-11 32 25 23 200 17 32 7 FTGA03510 TW15P A10H-SDQCR/L-07 13 10 9.5 100 7 20 2 DGDD0702nn FTKA02555 TW07P A12K-SDQCR/L-07 16 12 11 125 9 22 3 FTKA02565 TW07P A16M-SDQCR/L-11 20 16 15 150 11 27 3 FTGA03508 TW15P A20Q-SDQCR/L-11 25 20 19 180 13 32 3 DGDn11T3Dn A25R-SDQCR/L-11 32 25 24 200 17 32 4 FTGA03510 TW15P Applicable inserts, see pages B60 B62, B81 Stock item Designation Stock 0D 0d H L S fl Insert Screw Wrench R L X S10M-SDUCR/L-07 13 10 9 150 7 - 2.5 FTKA02555 TW07P S12M-SDUCR/L-07 16 12 11 150 9 22 3.5 DGnn0702nn FTKA02565 TW07P S16R-SDUCR/L-07 20 16 15 200 11 27 4 S16R-SDUCR/L-11 20 16 15 200 11 27 4 FTGA03508 TW15P S20S-SDUCR/L-11 25 20 18 250 13 35 4.3 DGDD11T3nn S25R-SDUCR/L-11 32 25 23 200 17 46 6.8 FTGA03510 TW15P S32S-SDUCR/L-11 40 32 30 250 22 50 8.4 A10H-SDUCR/L-07 13 10 9.5 100 7 - 2 FTKA02555 TW07P A12K-SDUCR/L-07 16 12 11 125 9 22 3 DGnn0702nn FTKA02565 TW07P A16M-SDUCR/L-07 20 16 15 150 11 27 3 A20Q-SDUCR/L-11 25 20 19 180 13 35 3 DGDn11T3Dn FTGA03508 TW15P A25R-SDUCR/L-11 32 25 24 200 17 46 4.5 FTGA03510 TW15P Applicable inserts, see pages B60 B62, B81 Stock item fogj Turnin i 145
