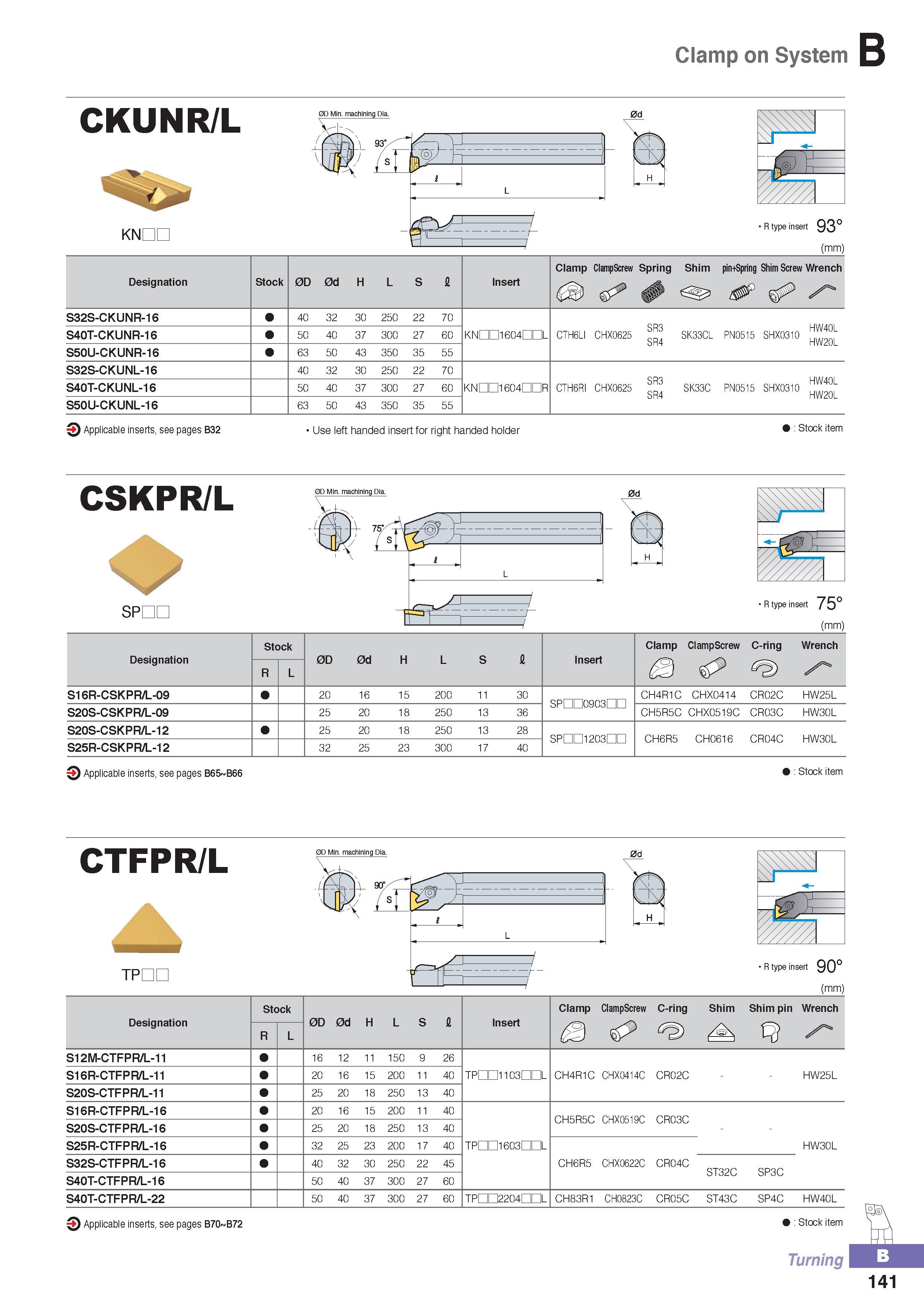

Clamp on System CKUNR/L 0D Min. machining Dia. KNDC R type insert 93° (mm) Designation Stock 0D 0d H L S fi Insert Clamp ClampScrew Spring Shim pin+Spring Shim Screw Wrench S32S-CKUNR-16 40 32 30 250 22 70 SR3 SR4 HW40L HW20L S40T-CKUNR-16 50 40 37 300 27 60 KNDn1604nDL CTH6LI CHX0625 SK33CL PN0515 SHX0310 S50U-CKUNR-16 63 50 43 350 35 55 S32S-CKUNL-16 40 32 30 250 22 70 SR3 SR4 HW40L HW20L S40T-CKUNL-16 50 40 37 300 27 60 KNDD1604nnR CTH6RI CHX0625 SK33C PN0515 SHX0310 S50U-CKUNL-16 63 50 43 350 35 55 3 Applicable inserts, see pages B32 Use left handed insert for right handed holder Stock item CSKPR/L 0D Min. machining Dia. SPDC j m I L R type insert 75° (mm) Designation Stock 0D 0d H L S a Insert Clamp ClampScrew C-ring Wrench R L & S16R-CSKPR/L-09 20 16 15 200 11 30 Spnri0903nn CH4R1C CHX0414 CR02C HW25L S20S-CSKPR/L-09 25 20 18 250 13 36 CH5R5C CHX0519C CR03C HW30L S20S-CSKPR/L-12 25 20 18 250 13 28 Smn1203nn CH6R5 CH0616 CR04C HW30L S25R-CSKPR/L-12 32 25 23 300 17 40 3 Applicable inserts, see pages B65 B66 Stock item CTFPR/L 0D Min. machining Dia. TPDC R type insert 90° (mm) Designation Stock 0D 0d H L S A Insert Clamp ClampScrew C-ring Shim Shim pin Wrench R 1 /Q 2) S12M-CTFPR/L-11 16 12 11 150 9 26 S16R-CTFPR/L-11 20 16 15 200 11 40 TPnn1103nnL CH4R1C CHX0414C CR02C HW25L S20S-CTFPR/L-11 25 20 18 250 13 40 S16R-CTFPR/L-16 20 16 15 200 11 40 CH5R5C CHX0519C CR03C S20S-CTFPR/L-16 25 20 18 250 13 40 S25R-CTFPR/L-16 32 25 23 200 17 40 TPnn1603nnL HW30L S32S-CTFPR/L-16 40 32 30 250 22 45 CH6R5 CHX0622C CR04C ST32C SP3C S40T-CTFPR/L-16 50 40 37 300 27 60 S40T-CTFPR/L-22 50 40 37 300 27 60 TPnD2204nnL CH83R1 CH0823C CR05C ST43C SP4C HW40L Applicable inserts, see pages B70 B72 Stock item Turning 141
