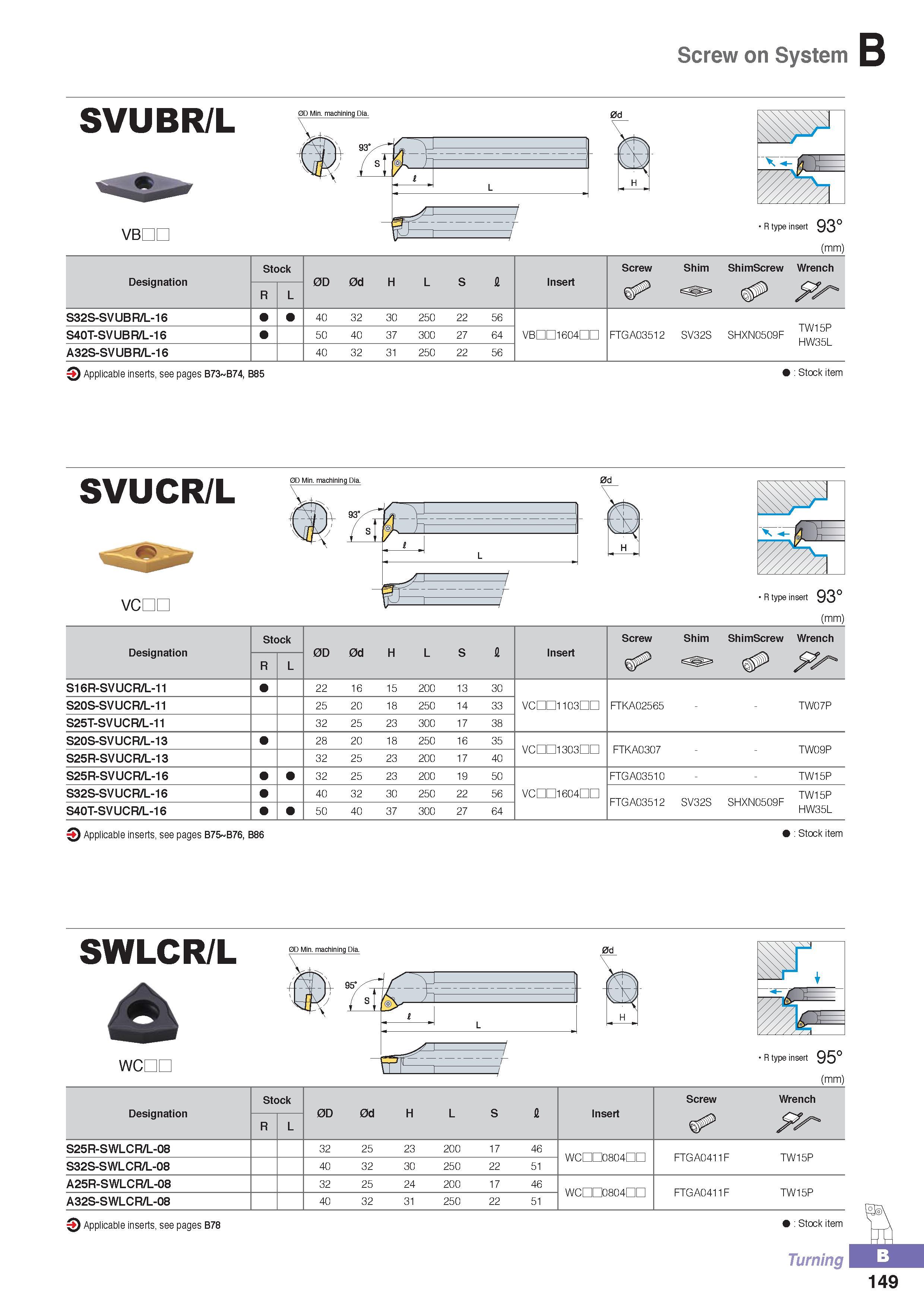

Screw on System SVUBR/L 0D Min. machining Dia. VBDC R type insert 93° (mm) Designation Stock 0D 0d H L S fl Insert Screw Shim ShimScrew Wrench R L S32S-SVUBR/L-16 40 32 30 250 22 56 TW15P HW35L S40T-SVUBR/L-16 50 40 37 300 27 64 VBnri1604nn FTGA03512 SV32S SHXN0509F A32S-SVUBR/L-16 40 32 31 250 22 56 Applicable inserts, see pages B73 B74, B85 Stock item SVUCR/L 0D Min. machining Dia. vcdc R type insert 93° (mm) Designation Stock 0D 0d H L S A Insert Screw Shim ShimScrew Wrench R L I 5 py S16R-SVUCR/L-11 22 16 15 200 13 30 S20S-SVUCR/L-11 25 20 18 250 14 33 VCnn1103nn FTKA02565 TW07P S25T-SVUCR/L-11 32 25 23 300 17 38 S20S-SVUCR/L-13 28 20 18 250 16 35 VCDn1303Dn FTKA0307 TW09P S25R-SVUCR/L-13 32 25 23 200 17 40 S25R-SVUCR/L-16 32 25 23 200 19 50 FTGA03510 TW15P S32S-SVUCR/L-16 40 32 30 250 22 56 VCDD1604nn FTGA03512 SV32S SHXN0509F TW15P S40T-SVUCR/L-16 50 40 37 300 27 64 HW35L O Applicable inserts, see pages B75 B76, B86 Stock item SWLCR/L A 0D Min. machining Dia. wcdc 1 I m L R type insert 95° (mm) Stock Screw Wrench Designation 0D 0d H L S A Insert R L yy S25R-SWLCR/L-08 32 25 23 200 17 46 WCDD0804nn FTGA0411F TW15P S32S-SWLCR/L-08 40 32 30 250 22 51 A25R-SWLCR/L-08 32 25 24 200 17 46 WCDD0804nn FTGA0411F TW15P A32S-SWLCR/L-08 40 32 31 250 22 51 3 Applicable inserts, see pages B78 Stock item Turning 149
