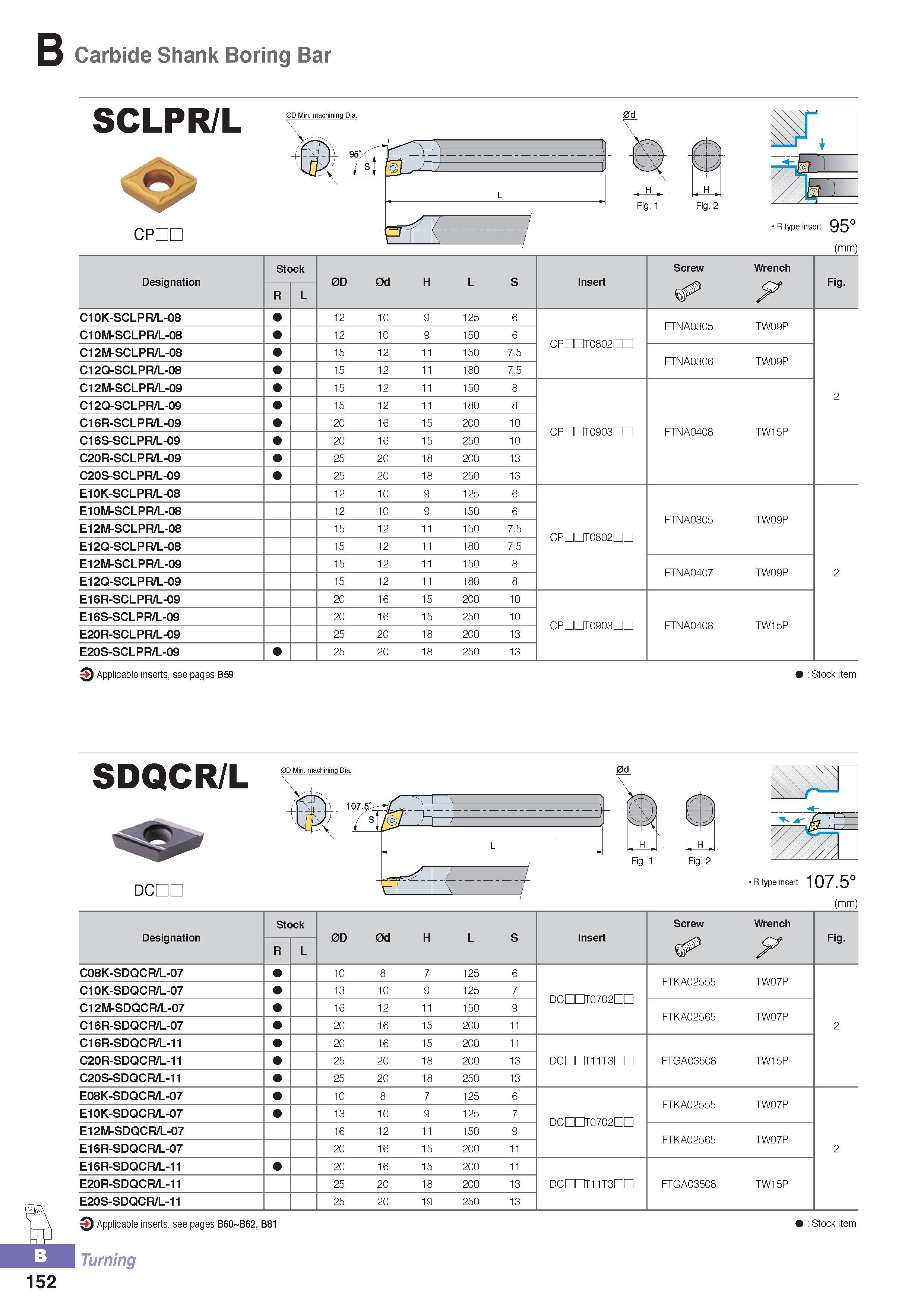

Carbide Shank Boring Bar SCLPR/L 0D Min. machining Dia. CPDC _i W- f -/ H Fig. 1 H Fig. 2 R type insert 95° (mm) Designation Stock 0D 0d H L S Insert Screw Wrench Fig. R L C10K-SCLPR/L-08 12 10 9 125 6 FTNA0305 TW09P C10M-SCLPR/L-08 12 10 9 150 6 CPDCT0802DD C12M-SCLPR/L-08 15 12 11 150 7.5 FTNA0306 TW09P C12Q-SCLPR/L-08 15 12 11 180 7.5 C12M-SCLPR/L-09 15 12 11 150 8 2 C12Q-SCLPR/L-09 15 12 11 180 8 C16R-SCLPR/L-09 20 16 15 200 10 CPDCT0903DD FTNA0408 TW1 5P C16S-SCLPR/L-09 20 16 15 250 10 C20R-SCLPR/L-09 25 20 18 200 13 C20S-SCLPR/L-09 25 20 18 250 13 E10K-SCLPR/L-08 12 10 9 125 6 E10M-SCLPR/L-08 12 10 9 150 6 FTNA0305 TW09P E12M-SCLPR/L-08 15 12 11 150 7.5 CPDCT0802DD E12Q-SCLPR/L-08 15 12 11 180 7.5 E12M-SCLPR/L-09 15 12 11 150 8 FTNA0407 TW09P 2 E12Q-SCLPR/L-09 15 12 11 180 8 E16R-SCLPR/L-09 20 16 15 200 10 E16S-SCLPR/L-09 20 16 15 250 10 CPDCT0903DD FTNA0408 TW15P E20R-SCLPR/L-09 25 20 18 200 13 E20S-SCLPR/L-09 25 20 18 250 13 3 Applicable inserts, see pages B59 Stock item SDQCR/L 0D Min. machining Dia. dcdc ,J 3= R type insert 107.5° (mm) Designation Stock 0D 0d H L S Insert Screw Wrench Fig. R L F C08K-SDQCR/L-07 10 8 7 125 6 FTKA02555 TW07P C10K-SDQCR/L-07 13 10 9 125 7 DCDCT0702DD C12M-SDQCR/L-07 16 12 11 150 9 FTKA02565 TW07P C16R-SDQCR/L-07 20 16 15 200 11 2 C16R-SDQCR/L-11 20 16 15 200 11 C20R-SDQCR/L-11 25 20 18 200 13 DCDCT11T3DD FTGA03508 TW15P C20S-SDQCR/L-11 25 20 18 250 13 E08K-SDQCR/L-07 10 8 7 125 6 FTKA02555 TW07P E10K-SDQCR/L-07 13 10 9 125 7 DCDCT0702DD E12M-SDQCR/L-07 16 12 11 150 9 FTKA02565 TW07P E16R-SDQCR/L-07 20 16 15 200 11 2 E16R-SDQCR/L-11 20 16 15 200 11 E20R-SDQCR/L-11 25 20 18 200 13 DOTDT11T3Dn FTGA03508 TW15P E20S-SDQCR/L-11 25 20 19 250 13 3 Applicable inserts, see pages B60 B62, B81 Turning Stock item 152
