Internal metal turning tools Features Carbide Shank Boring Bar KORLOY Excellent cutting performance even in internal machining with chattering Comparison o

Internal metal turning tools Features Carbide Shank Boring Bar KORLOY Excellent cutting performance even in internal machining with chattering Comparison o

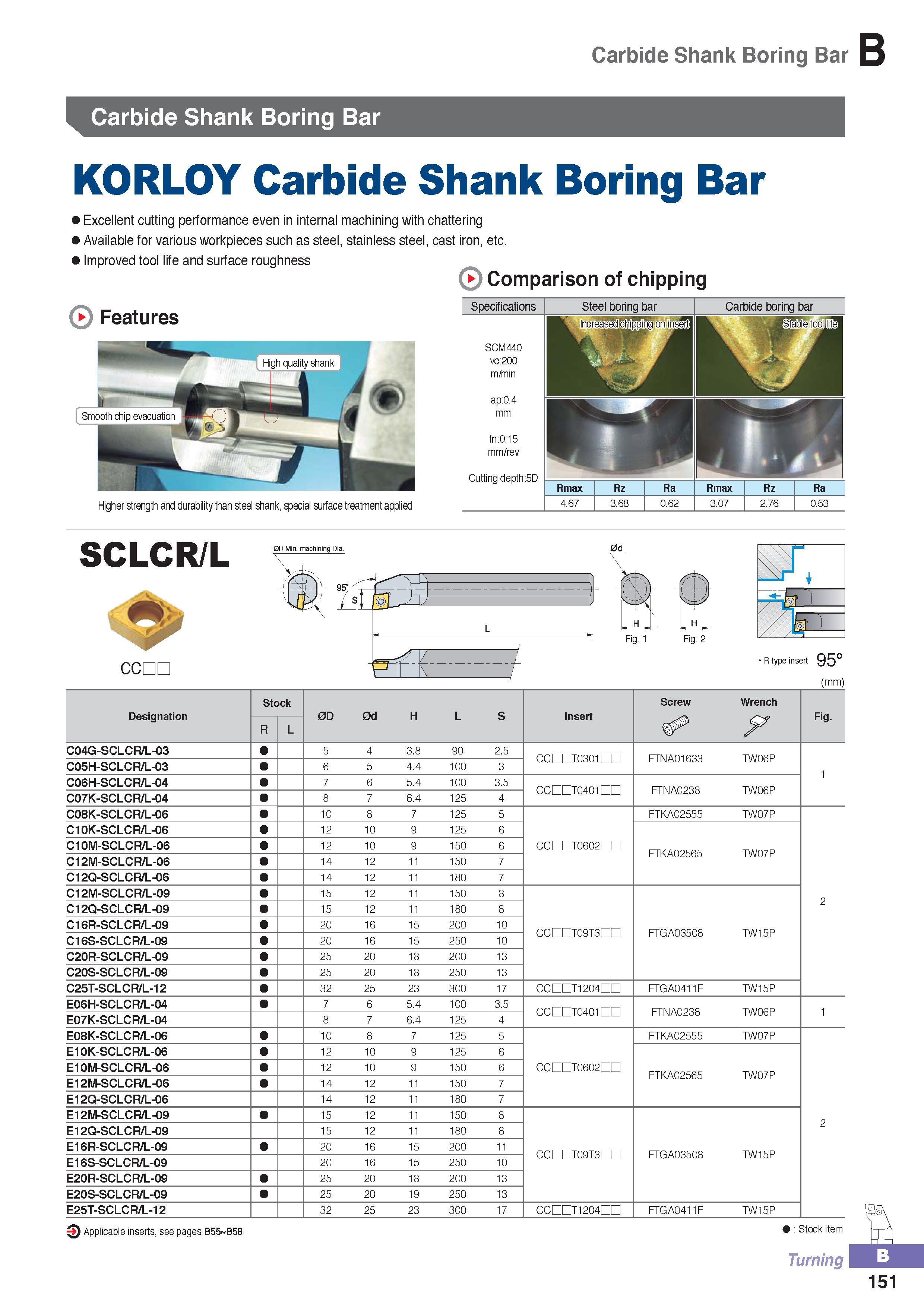

Internal metal turning tools Features Carbide Shank Boring Bar KORLOY Excellent cutting performance even in internal machining with chattering Comparison of chipping Available for various workpieces such as steel, stainless steel, cast iron, etc. Improved tool life and surface roughness Features Higher strength and durability than steel shank, special surface treatment applied Specifications Steel boring bar Carbide boring bar SoM440 vc:200 m/min ap:0.4 mm fn:0.15 mm/rev outting depth:5D \ Increased chipping on insertl P M dm jable todljH ill W Rmax Rz Ra Rmax Rz Ra 4.67 3.68 0.62 3.07 2.76 0.53 SCLCR/L 0D Min. machining Dia. oonc H_ Fig. 1 H Fig. 2 R type insert 95° (mm) Stock Screw Wrench Designation 0D 0d H L S Insert Fig. R L X C04G-SCLCR/L-03 5 4 3.8 90 2.5 CCDDT0301nn FTNA01633 TW06P C05H-SCLCR/L-03 6 5 4.4 100 3 C06H-SCLCR/L-04 7 6 5.4 100 3.5 CCDDT0401nn FTNA0238 TW06P 1 C07K-SCLCR/L-04 8 7 6.4 125 4 C08K-SCLCR/L-06 10 8 7 125 5 FTKA02555 TW07P C10K-SCLCR/L-06 12 10 9 125 6 C10M-SCLCR/L-06 12 10 9 150 6 CCDDT0602nn FTKA02565 TW07P C12M-SCLCR/L-06 14 12 11 150 7 C12Q-SCLCR/L-06 14 12 11 180 7 C12M-SCLCR/L-09 15 12 11 150 8 2 C12Q-SCLCR/L-09 15 12 11 180 8 C16R-SCLCR/L-09 20 16 15 200 10 CCDDT09T3nn FTGA03508 TW15P C16S-SCLCR/L-09 20 16 15 250 10 C20R-SCLCR/L-09 25 20 18 200 13 C20S-SCLCR/L-09 25 20 18 250 13 C25T-SCLCR/L-12 32 25 23 300 17 CCDDT1204nn FTGA0411F TW15P E06H-SCLCR/L-04 7 6 5.4 100 3.5 CCDDT0401nn FTNA0238 TW06P E07K-SCLCR/L-04 8 7 6.4 125 4 1 E08K-SCLCR/L-06 10 8 7 125 5 FTKA02555 TW07P E10K-SCLCR/L-06 12 10 9 125 6 E10M-SCLCR/L-06 12 10 9 150 6 CCDDT0602nn FTKA02565 TW07P E12M-SCLCR/L-06 14 12 11 150 7 E12Q-SCLCR/L-06 14 12 11 180 7 E12M-SCLCR/L-09 15 12 11 150 8 2 E12Q-SCLCR/L-09 15 12 11 180 8 E16R-SCLCR/L-09 20 16 15 200 11 CCDDT09T3nn FTGA03508 TW15P E16S-SCLCR/L-09 20 16 15 250 10 E20R-SCLCR/L-09 25 20 18 200 13 E20S-SCLCR/L-09 25 20 19 250 13 E25T-SCLCR/L-12 32 25 23 300 17 CCDDT1204nn FTGA0411F TW15P 3 Applicable inserts, see pages B55 B58 Stock item Turning 151 Carbide Shank Boring Bar Carbide Shank Boring Bar
