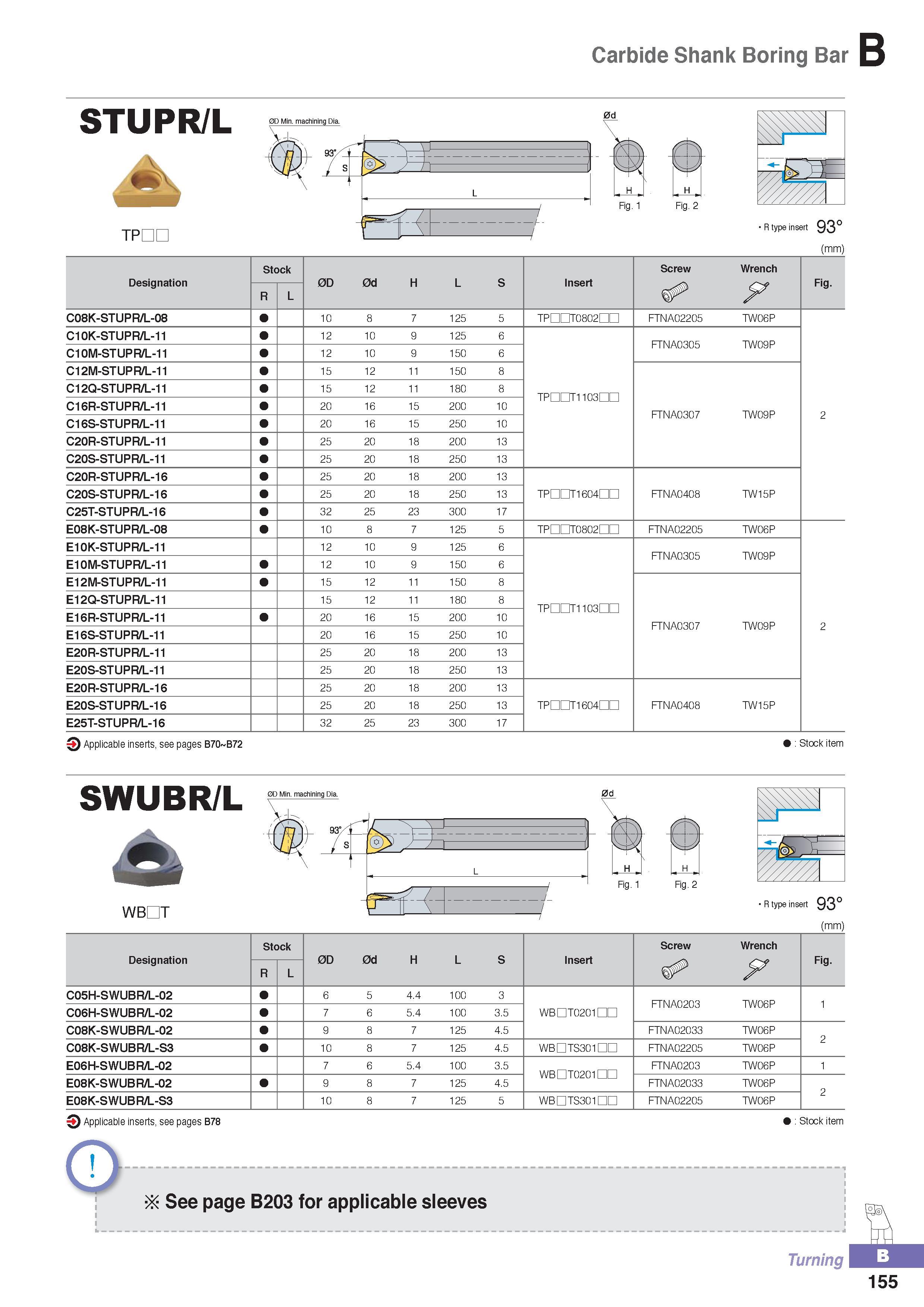

Carbide Shank Boring Bar STUPR/L TPDC R type insert 93° (mm) Designation Stock 0D 0d H L S Insert Screw Wrench Fig. R L C08K-STUPR/L-08 10 8 7 125 5 TPDDT0802nn FTNA02205 TW06P C10K-STUPR/L-11 12 10 9 125 6 FTNA0305 TW09P C10M-STUPR/L-11 12 10 9 150 6 C12M-STUPR/L-11 15 12 11 150 8 C12Q-STUPR/L-11 15 12 11 180 8 TPDDT1103nn C16R-STUPR/L-11 20 16 15 200 10 FTNA0307 TW09P 2 C16S-STUPR/L-11 20 16 15 250 10 C20R-STUPR/L-11 25 20 18 200 13 C20S-STUPR/L-11 25 20 18 250 13 C20R-STUPR/L-16 25 20 18 200 13 C20S-STUPR/L-16 25 20 18 250 13 TPDDT1604nn FTNA0408 TW15P C25T-STUPR/L-16 32 25 23 300 17 E08K-STUPR/L-08 10 8 7 125 5 TPDDT0802nn FTNA02205 TW06P E10K-STUPR/L-11 12 10 9 125 6 FTNA0305 TW09P E10M-STUPR/L-11 12 10 9 150 6 E12M-STUPR/L-11 15 12 11 150 8 E12Q-STUPR/L-11 15 12 11 180 8 TPDDT1103nn E16R-STUPR/L-11 20 16 15 200 10 FTNA0307 TW09P 2 E16S-STUPR/L-11 20 16 15 250 10 E20R-STUPR/L-11 25 20 18 200 13 E20S-STUPR/L-11 25 20 18 250 13 E20R-STUPR/L-16 25 20 18 200 13 E20S-STUPR/L-16 25 20 18 250 13 TPDDT1604nn FTNA0408 TW15P E25T-STUPR/L-16 32 25 23 300 17 3 Applicable inserts, see pages B70 B72 Stock item SWUBR/L 0D Min. machining Dia. WBDT H Fig. 2 R type insert 93° (mm) Designation Stock 0D 0d H L S Insert Screw Wrench Fig. R L C05H-SWUBR/L-02 6 5 4.4 100 3 FTNA0203 TW06P C06H-SWUBR/L-02 7 6 5.4 100 3.5 WBDT0201 1 C08K-SWUBR/L-02 9 8 7 125 4.5 FTNA02033 TW06P 2 C08K-SWUBR/L-S3 10 8 7 125 4.5 WBDTS301Dn FTNA02205 TW06P E06H-SWUBR/L-02 7 6 5.4 100 3.5 WBDT0201Dn FTNA0203 TW06P 1 E08K-SWUBR/L-02 9 8 7 125 4.5 FTNA02033 TW06P 2 E08K-SWUBR/L-S3 10 8 7 125 5 WBDTS301Dn FTNA02205 TW06P 3 Applicable inserts, see pages B78 Stock item Turning 155
