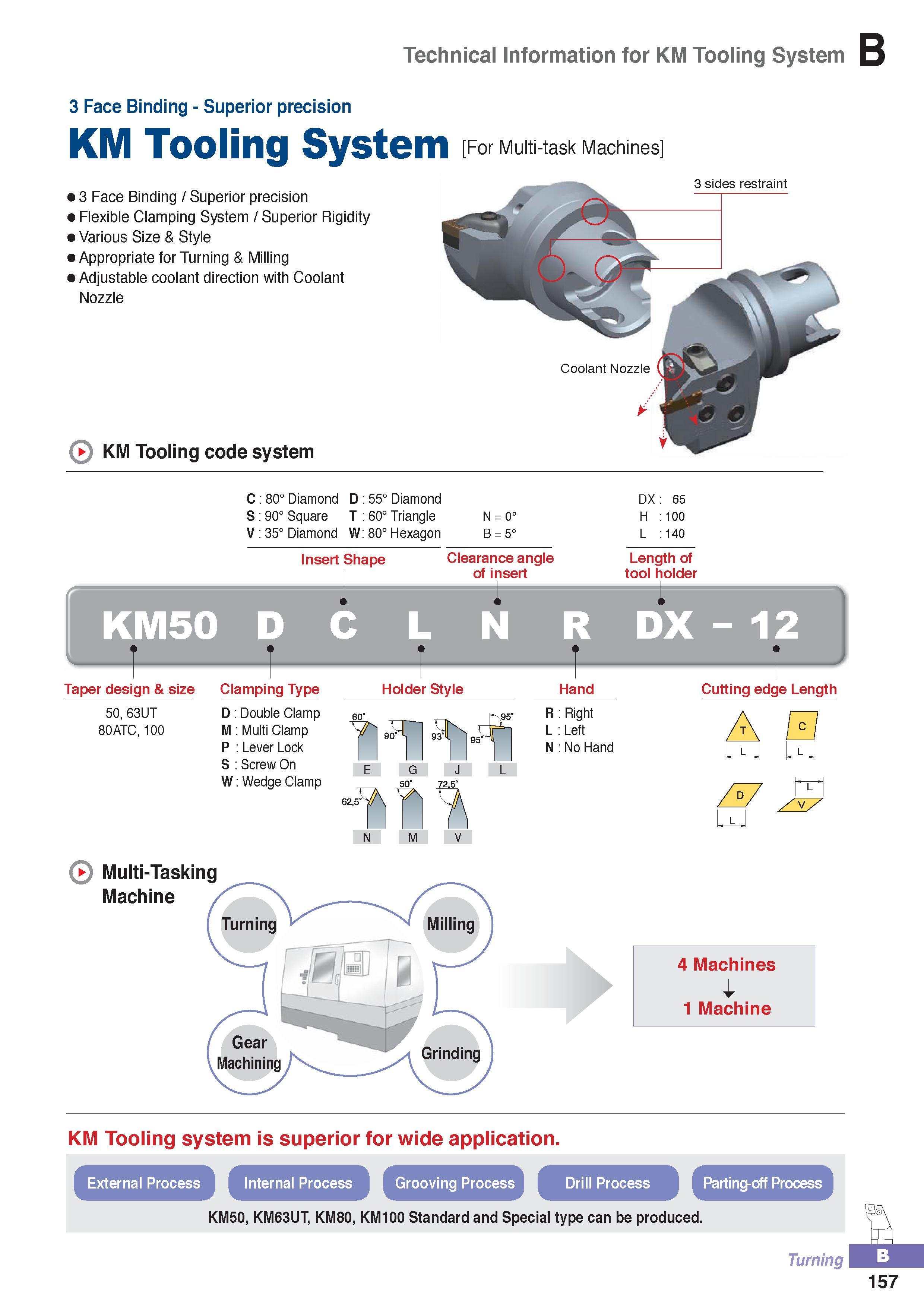

Technical Information for KM Tooling System Korloy For Multi-task Machines 3 Face Binding Superior precision Flexible Clamping System Superior Rigidity Various Size & Style Appropriate for Turning & Milling Adjustable coolant direction with Coolant Nozzle KM Tooling code system 3 sides restraint C 80° Diamond D 55° Diamond S 90° Square T 60° Triangle N = 0° V 35° Diamond W: 80° Hexagon B = 5° Insert Shape Clearance angle of insert DX H L 65 100 140 Length of tool holder KM50 D C L N R DX - 12 Taper design & size Clamping Type Holder Style 50, 63UT 80ATC, 100 D Double Clamp M Multi Clamp P Lever Lock S Screw On W Wedge Clamp 50" 72.5' Multi-Tasking Machine J L Hand R Right L Left N No Hand Cutting edge Length KM Tooling system is superior for wide application. External Process Internal Process Grooving Process Parting-off Process KM50, KM63UT, KM80, KM100 Standard and Special type can be produced. Turning 157 E G N M V 3 Face Binding - Superior precision KM Tooling System
