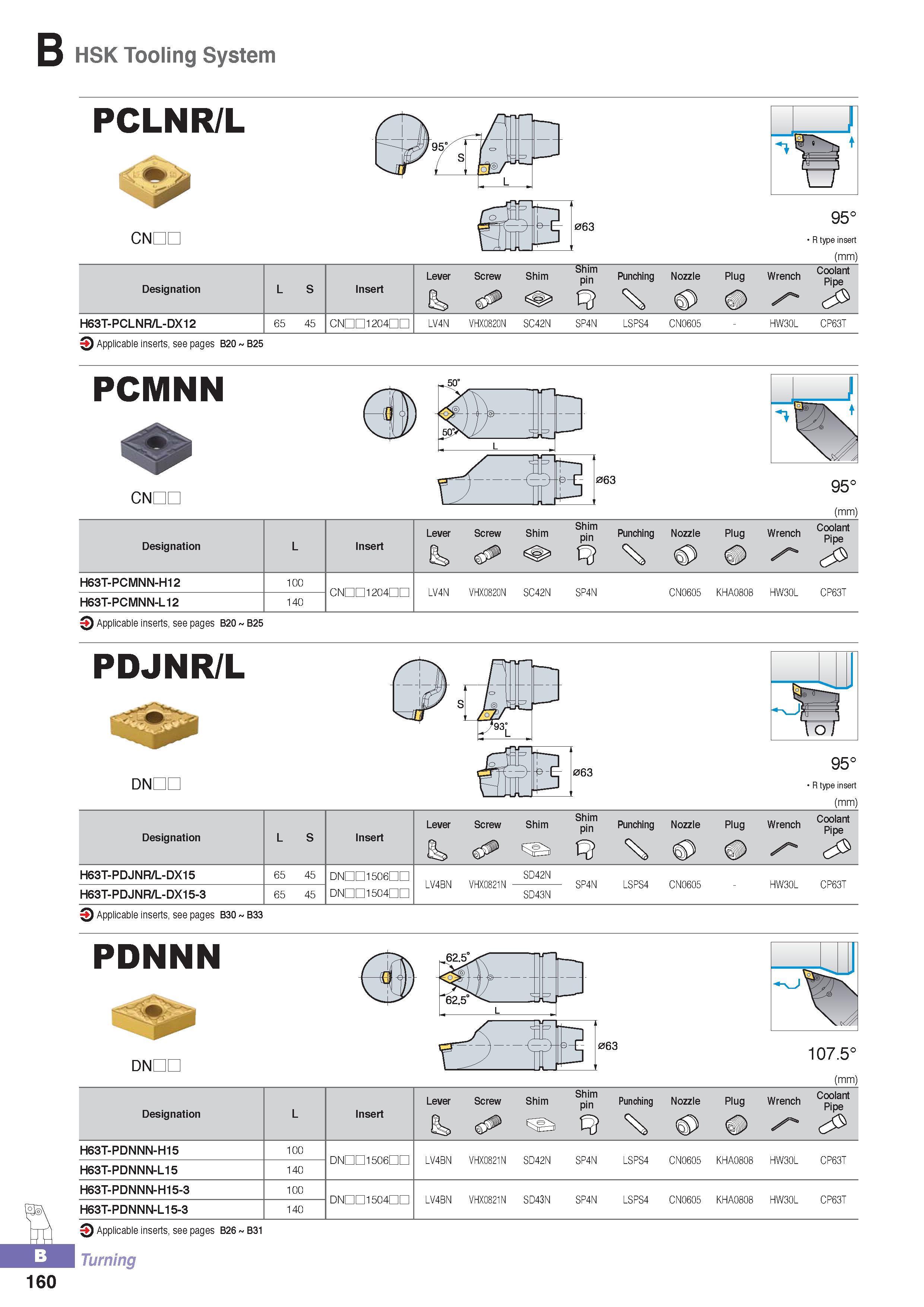

B HSK Tooling System PCLNR/L CNDC o 063 95° R type insert (mm) Designation L S Insert Lever 6a Screw Shim Shim pin Punching Nozzle Plug Wrench Coolant Pipe H63T-PCLNR/L-DX12 65 45 C D1204Dn LV4N VHX0820N SC42N SP4N LSPS4 CN0605 - HW30L CP63T 3 Applicable inserts, see pages B20 B25 PCMNN ,.50° r CNDC 063 (mm) Designation L Insert Lever Screw Shim Shim pin Punching Nozzle Plug Wrench Coolant Pipe H63T-PCMNN-H12 100 cNnni204nn LV4N VHX0820N SC42N SP4N CN0605 KHA0808 HW30L CP63T H63T-PCMNN-L12 140 3 Applicable inserts, see pages B20 B25 PDJNR/L DNDC 063 95° R type insert (mm) Designation L S Insert Lever Screw Shim Shim pin Punching Nozzle Plug Wrench Coolant Pipe H63T-PDJNR/L-DX15 65 45 D Dl506Dn LV4BN VHX0821N SD42N SP4N LSPS4 CN0605 HW30L CP63T H63T-PDJNR/L-DX15-3 65 45 D D1504Dn SD43N 3 Applicable inserts, see pages B30 B33 PDNNN 62.5 ni DNDC 063 107.5° (mm) Designation L Insert Lever Ea Screw <5 Shim Shim pin Punching Nozzle Plug Wrench Coolant Pipe H63T-PDNNN-H15 100 DNDD1506nn LV4BN VHX0821N SD42N SP4N LSPS4 CN0605 KHA0808 HW30L CP63T H63T-PDNNN-L15 140 H63T-PDNNN-H15-3 100 DNDD1504nn LV4BN VHX0821N SD43N SP4N LSPS4 CN0605 KHA0808 HW30L CP63T H63T-PDNNN-L15-3 140 160 3 Applicable inserts, see pages B26 B31 Turning
