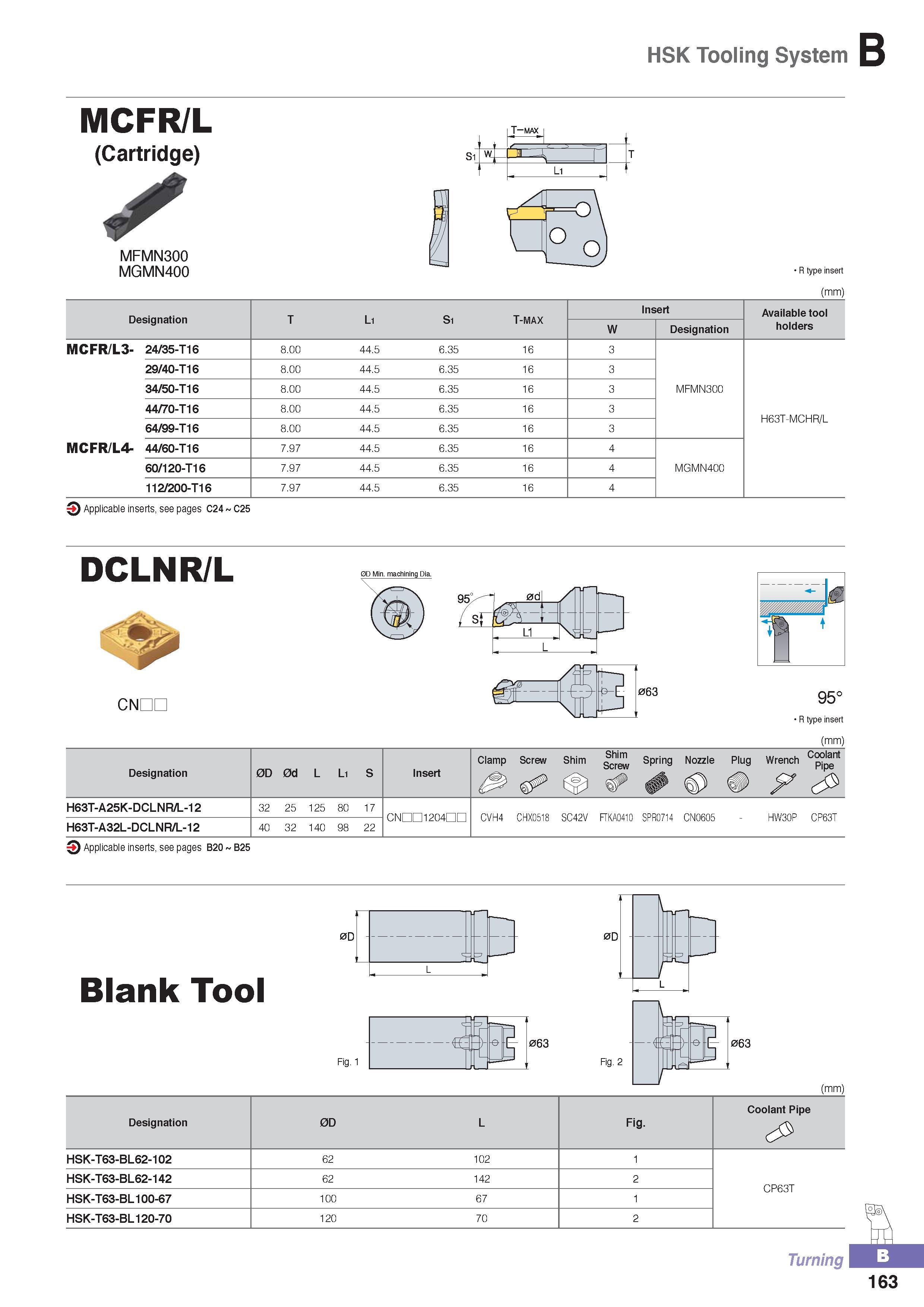

HSK Tooling System B MCFR/L (Cartridge) MFMN300 MGMN400 R type insert (mm) Designation T L1 S1 T-max Insert Available tool W Designation holders MCFR/L3- 24/35-T16 8.00 44.5 6.35 16 3 29/40-T16 8.00 44.5 6.35 16 3 34/50-T16 8.00 44.5 6.35 16 3 MFMN300 44/70-T16 8.00 44.5 6.35 16 3 H63T-MCHR/L 64/99-T16 8.00 44.5 6.35 16 3 MCFR/L4- 44/60-T16 7.97 44.5 6.35 16 4 60/120-T16 7.97 44.5 6.35 16 4 MGMN400 112/200-T16 7.97 44.5 6.35 16 4 3 Applicable inserts, see pages C24 C25 DCLNR/L 0D Min. machining Dia. CNDC I 95° R type insert (mm) Designation 0D 0d L Insert Clamp Screw Shim c Screw Spring Nozzle Plug Wrench Coolant Pipe H63T-A25K-DCLNR/L-12 32 25 125 80 17 H63T-A32L-DCLNR/L-12 40 32 140 98 22 CNDD1204nC CVH4 CHX0518 SC42V FTKA0410 SPR0714 CN0605 HW30P CP63T 3 Applicable inserts, see pages B20 B25 Blank Tool 0D Fig. 1 063 063 Fig. 2 (mm) Designation 0D L Fig. Coolant Pipe HSK-T63-BL62-102 62 102 HSK-T63-BL62-142 62 142 2 CP63T HSK-T63-BL100-67 100 67 HSK-T63-BL120-70 120 70 2 Turning 163 S
