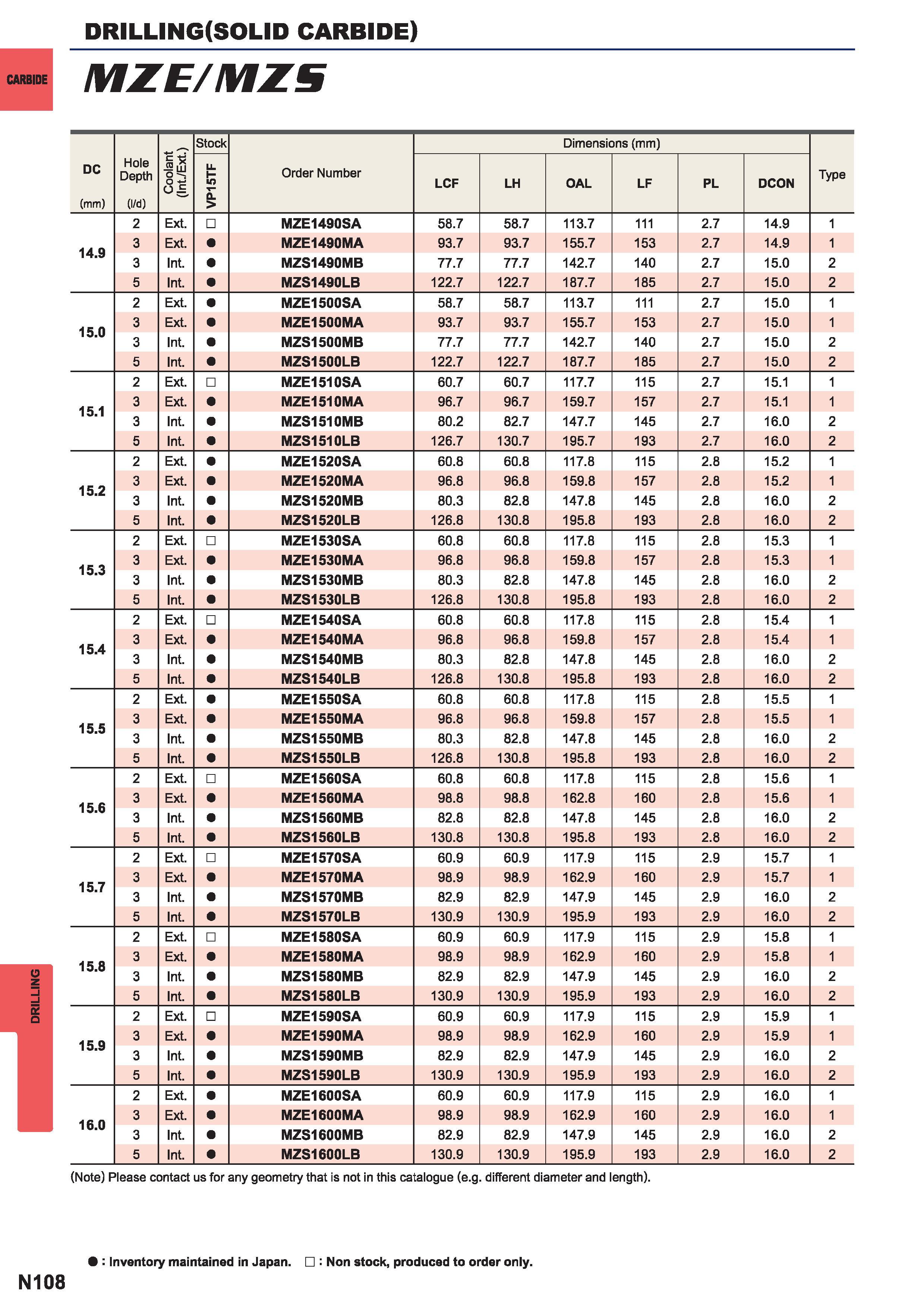

DRILLING DRILLING (SOLID CARBIDE) MZE MIS DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) Type LL H LCF LH OAL LF PL DCON 2 Ext. MZE1490SA 58.7 58.7 113.7 111 2.7 14.9 1 14.9 3 Ext. MZE1490MA 93.7 93.7 155.7 153 2.7 14.9 1 3 Int. MZS1490MB 77.7 77.7 142.7 140 2.7 15.0 2 5 Int. MZS1490LB 122.7 122.7 187.7 185 2.7 15.0 2 2 Ext. MZE1500SA 58.7 58.7 113.7 111 2.7 15.0 1 15.0 3 Ext. MZE1500MA 93.7 93.7 155.7 153 2.7 15.0 1 3 Int. MZS1500MB 77.7 77.7 142.7 140 2.7 15.0 2 5 Int. MZS1500LB 122.7 122.7 187.7 185 2.7 15.0 2 2 Ext. MZE1510SA 60.7 60.7 117.7 115 2.7 15.1 1 15.1 3 Ext. MZE1510MA 96.7 96.7 159.7 157 2.7 15.1 1 3 Int. MZS1510MB 80.2 82.7 147.7 145 2.7 16.0 2 5 Int. MZS1510LB 126.7 130.7 195.7 193 2.7 16.0 2 2 Ext. MZE1520SA 60.8 60.8 117.8 115 2.8 15.2 1 15.2 3 Ext. MZE1520MA 96.8 96.8 159.8 157 2.8 15.2 1 3 Int. MZS1520MB 80.3 82.8 147.8 145 2.8 16.0 2 5 Int. MZS1520LB 126.8 130.8 195.8 193 2.8 16.0 2 2 Ext. MZE1530SA 60.8 60.8 117.8 115 2.8 15.3 1 15.3 3 Ext. MZE1530MA 96.8 96.8 159.8 157 2.8 15.3 1 3 Int. MZS1530MB 80.3 82.8 147.8 145 2.8 16.0 2 5 Int. MZS1530LB 126.8 130.8 195.8 193 2.8 16.0 2 2 Ext. MZE1540SA 60.8 60.8 117.8 115 2.8 15.4 1 15.4 3 Ext. MZE1540MA 96.8 96.8 159.8 157 2.8 15.4 1 3 Int. MZS1540MB 80.3 82.8 147.8 145 2.8 16.0 2 5 Int. MZS1540LB 126.8 130.8 195.8 193 2.8 16.0 2 2 Ext. MZE1550SA 60.8 60.8 117.8 115 2.8 15.5 1 15.5 3 Ext. MZE1550MA 96.8 96.8 159.8 157 2.8 15.5 1 3 Int. MZS1550MB 80.3 82.8 147.8 145 2.8 16.0 2 5 Int. MZS1550LB 126.8 130.8 195.8 193 2.8 16.0 2 2 Ext. MZE1560SA 60.8 60.8 117.8 115 2.8 15.6 1 15.6 3 Ext. MZE1560MA 98.8 98.8 162.8 160 2.8 15.6 1 3 Int. MZS1560MB 82.8 82.8 147.8 145 2.8 16.0 2 5 Int. MZS1560LB 130.8 130.8 195.8 193 2.8 16.0 2 2 Ext. MZE1570SA 60.9 60.9 117.9 115 2.9 15.7 1 15.7 3 Ext. MZE1570MA 98.9 98.9 162.9 160 2.9 15.7 1 3 Int. MZS1570MB 82.9 82.9 147.9 145 2.9 16.0 2 5 Int. MZS1570LB 130.9 130.9 195.9 193 2.9 16.0 2 2 Ext. MZE1580SA 60.9 60.9 117.9 115 2.9 15.8 1 15.8 3 Ext. MZE1580MA 98.9 98.9 162.9 160 2.9 15.8 1 3 Int. MZS1580MB 82.9 82.9 147.9 145 2.9 16.0 2 5 Int. MZS1580LB 130.9 130.9 195.9 193 2.9 16.0 2 2 Ext. MZE1590SA 60.9 60.9 117.9 115 2.9 15.9 1 15.9 3 Ext. MZE1590MA 98.9 98.9 162.9 160 2.9 15.9 1 3 Int. MZS1590MB 82.9 82.9 147.9 145 2.9 16.0 2 5 Int. MZS1590LB 130.9 130.9 195.9 193 2.9 16.0 2 2 Ext. MZE1600SA 60.9 60.9 117.9 115 2.9 16.0 1 16.0 3 Ext. MZE1600MA 98.9 98.9 162.9 160 2.9 16.0 1 3 Int. MZS1600MB 82.9 82.9 147.9 145 2.9 16.0 2 5 Int. MZS1600LB 130.9 130.9 195.9 193 2.9 16.0 2 (Note) Please contact us for any geometry that is not In this catalogue (e.g. different diameter and length). Inventory maintained in Japan. Non stock produced to order only. N108
