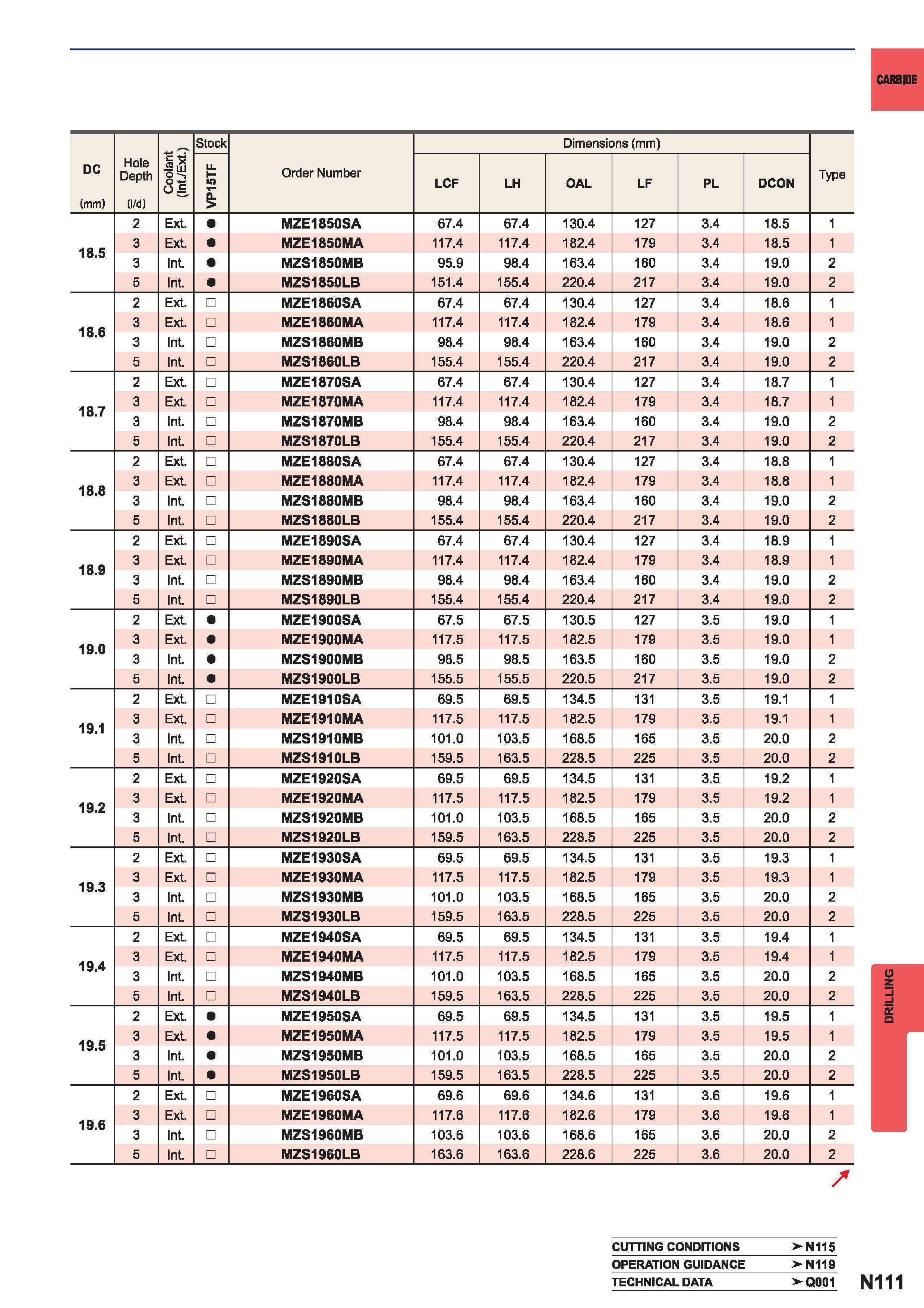

1427 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N111

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N111 1427 ENG Lab2u

CARBIDE DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) Type VP15TF LCF LH OAL LF PL DCON 2 Ext. MZE1850SA 67.4 67.4 130.4 127 3.4 18.5 1 18.5 3 Ext. MZE1850MA 117.4 117.4 182.4 179 3.4 18.5 1 3 Int. MZS1850MB 95.9 98.4 163.4 160 3.4 19.0 2 5 Int. MZS1850LB 151.4 155.4 220.4 217 3.4 19.0 2 2 Ext. MZE1860SA 67.4 67.4 130.4 127 3.4 18.6 1 18.6 3 Ext. MZE1860MA 117.4 117.4 182.4 179 3.4 18.6 1 3 Int. MZS1860MB 98.4 98.4 163.4 160 3.4 19.0 2 5 Int. MZS1860LB 155.4 155.4 220.4 217 3.4 19.0 2 2 Ext. MZE1870SA 67.4 67.4 130.4 127 3.4 18.7 1 18.7 3 Ext. MZE1870MA 117.4 117.4 182.4 179 3.4 18.7 1 3 Int. MZS1870MB 98.4 98.4 163.4 160 3.4 19.0 2 5 Int. MZS1870LB 155.4 155.4 220.4 217 3.4 19.0 2 2 Ext. MZE1880SA 67.4 67.4 130.4 127 3.4 18.8 1 18.8 3 Ext. MZE1880MA 117.4 117.4 182.4 179 3.4 18.8 1 3 Int. MZS1880MB 98.4 98.4 163.4 160 3.4 19.0 2 5 Int. MZS1880LB 155.4 155.4 220.4 217 3.4 19.0 2 2 Ext. MZE1890SA 67.4 67.4 130.4 127 3.4 18.9 1 18.9 3 Ext. MZE1890MA 117.4 117.4 182.4 179 3.4 18.9 1 3 Int. MZS1890MB 98.4 98.4 163.4 160 3.4 19.0 2 5 Int. MZS1890LB 155.4 155.4 220.4 217 3.4 19.0 2 2 Ext. MZE1900SA 67.5 67.5 130.5 127 3.5 19.0 1 19.0 3 Ext. MZE1900MA 117.5 117.5 182.5 179 3.5 19.0 1 3 Int. MZS1900MB 98.5 98.5 163.5 160 3.5 19.0 2 5 Int. MZS1900LB 155.5 155.5 220.5 217 3.5 19.0 2 2 Ext. MZE1910SA 69.5 69.5 134.5 131 3.5 19.1 1 19.1 3 Ext. MZE1910MA 117.5 117.5 182.5 179 3.5 19.1 1 3 Int. MZS1910MB 101.0 103.5 168.5 165 3.5 20.0 2 5 Int. MZS1910LB 159.5 163.5 228.5 225 3.5 20.0 2 2 Ext. MZE1920SA 69.5 69.5 134.5 131 3.5 19.2 1 19.2 3 Ext. MZE1920MA 117.5 117.5 182.5 179 3.5 19.2 1 3 Int. MZS1920MB 101.0 103.5 168.5 165 3.5 20.0 2 5 Int. MZS1920LB 159.5 163.5 228.5 225 3.5 20.0 2 2 Ext. MZE1930SA 69.5 69.5 134.5 131 3.5 19.3 1 19.3 3 Ext. MZE1930MA 117.5 117.5 182.5 179 3.5 19.3 1 3 Int. MZS1930MB 101.0 103.5 168.5 165 3.5 20.0 2 5 Int. MZS1930LB 159.5 163.5 228.5 225 3.5 20.0 2 2 Ext. MZE1940SA 69.5 69.5 134.5 131 3.5 19.4 1 19.4 3 Ext. MZE1940MA 117.5 117.5 182.5 179 3.5 19.4 1 3 Int. MZS1940MB 101.0 103.5 168.5 165 3.5 20.0 2 5 Int. MZS1940LB 159.5 163.5 228.5 225 3.5 20.0 2 2 Ext. MZE1950SA 69.5 69.5 134.5 131 3.5 19.5 1 19.5 3 Ext. MZE1950MA 117.5 117.5 182.5 179 3.5 19.5 1 3 Int. MZS1950MB 101.0 103.5 168.5 165 3.5 20.0 2 5 Int. MZS1950LB 159.5 163.5 228.5 225 3.5 20.0 2 2 Ext. MZE1960SA 69.6 69.6 134.6 131 3.6 19.6 1 19.6 3 Ext. MZE1960MA 117.6 117.6 182.6 179 3.6 19.6 1 3 Int. MZS1960MB 103.6 103.6 168.6 165 3.6 20.0 2 5 Int. MZS1960LB 163.6 163.6 228.6 225 3.6 20.0 2 CUTTING CONDITIONS N115 OPERATION GUIDANCE -N119 TECHNICAL DATA -Q001 N111 DRILLING
