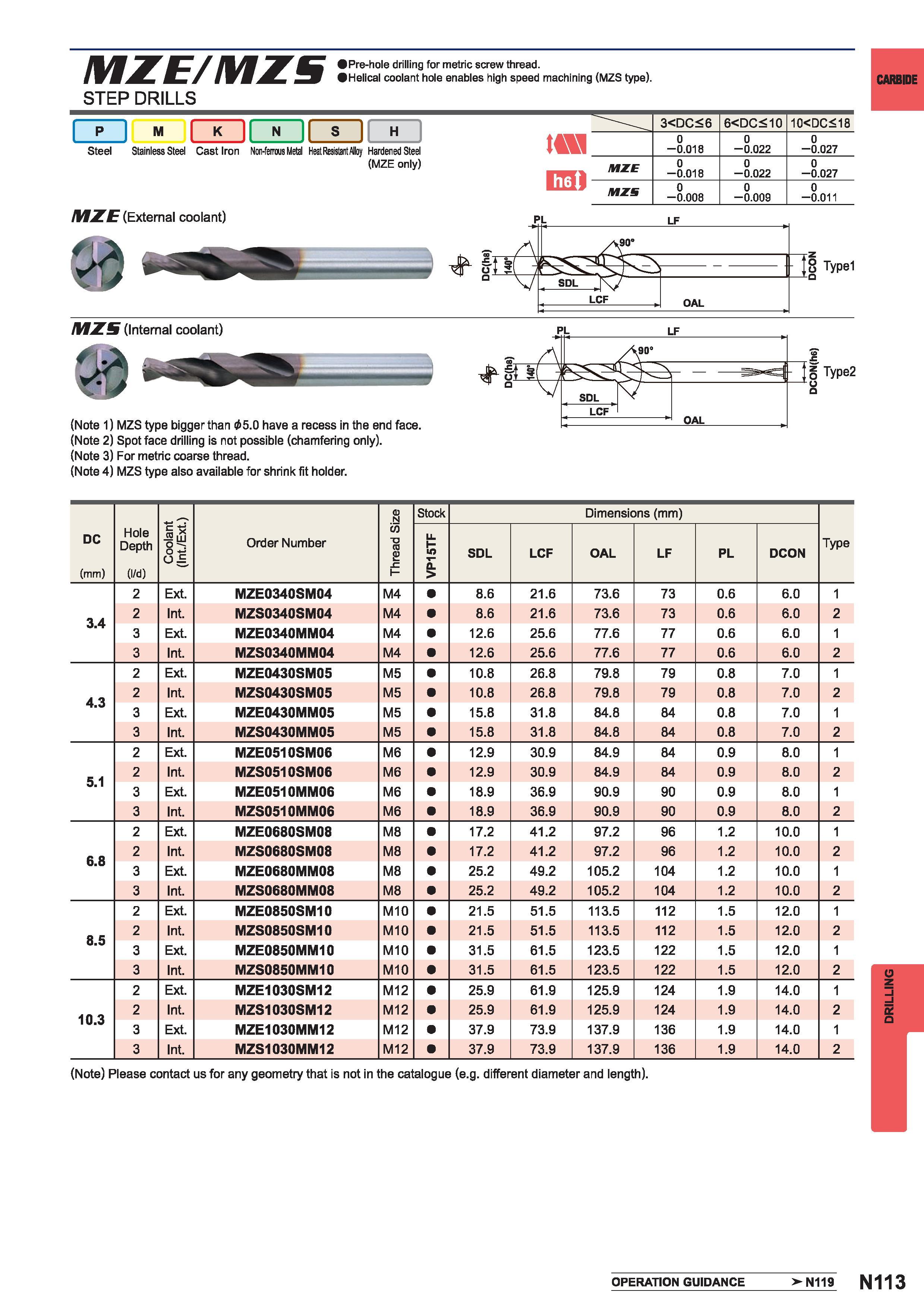

MZE MZS STEP DRILLS Pre-hole drilling for metric screw thread. Helical coolant hole enables high speed machining (MZS type). 3DC6 6DC10 10DC18 0 -0.018 0 -0.022 0 -0.027 MZE 0 -0.018 0 -0.022 0 -0.027 MZS 0 -0.008 0 -0.009 0 -0.011 f P M K N S H Steel Stainless Steel Cast Iron Non-ferrous Metal HeatResislantflltoy Hardened Steel (MZE only) ten EH) MZE (External coolant) o Typel Q MZS (Internal coolant) (Note 1) MZS type bigger than 05.0 have a recess in the end face. (Note 2) Spot face drilling is not possible (chamfering only). (Note 3) For metric coarse thread. (Note 4) MZS type also available for shrink fit holder. DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Order Number Thread Size Stock Dimensions (mm) Type LL H SDL LCF OAL LF PL DCON 2 Ext. MZE0340SM04 M4 8.6 21.6 73.6 73 0.6 6.0 1 3.4 2 Int. MZS0340SM04 M4 8.6 21.6 73.6 73 0.6 6.0 2 3 Ext. MZE0340MM04 M4 12.6 25.6 77.6 77 0.6 6.0 1 3 Int. MZS0340MM04 M4 12.6 25.6 77.6 77 0.6 6.0 2 2 Ext. MZE0430SM05 M5 10.8 26.8 79.8 79 0.8 7.0 1 4.3 2 Int. MZS0430SM05 M5 10.8 26.8 79.8 79 0.8 7.0 2 3 Ext. MZE0430MM05 M5 15.8 31.8 84.8 84 0.8 7.0 1 3 Int. MZS0430MM05 M5 15.8 31.8 84.8 84 0.8 7.0 2 2 Ext. MZE0510SM06 M6 12.9 30.9 84.9 84 0.9 8.0 1 5.1 2 Int. MZS0510SM06 M6 12.9 30.9 84.9 84 0.9 8.0 2 3 Ext. MZE0510MM06 M6 18.9 36.9 90.9 90 0.9 8.0 1 3 Int. MZS0510MM06 M6 18.9 36.9 90.9 90 0.9 8.0 2 2 Ext. MZE0680SM08 M8 17.2 41.2 97.2 96 1.2 10.0 1 6.8 2 Int. MZS0680SM08 M8 17.2 41.2 97.2 96 1.2 10.0 2 3 Ext. MZE0680MM08 M8 25.2 49.2 105.2 104 1.2 10.0 1 3 Int. MZS0680MM08 M8 25.2 49.2 105.2 104 1.2 10.0 2 2 Ext. MZE0850SM10 M10 21.5 51.5 113.5 112 1.5 12.0 1 8.5 2 Int. MZS0850SM10 M10 21.5 51.5 113.5 112 1.5 12.0 2 3 Ext. MZE0850MM10 M10 31.5 61.5 123.5 122 1.5 12.0 1 3 Int. MZS0850MM10 M10 31.5 61.5 123.5 122 1.5 12.0 2 2 Ext. MZE1030SM12 M12 25.9 61.9 125.9 124 1.9 14.0 1 10.3 2 Int. MZS1030SM12 M12 25.9 61.9 125.9 124 1.9 14.0 2 3 Ext. MZE1030MM12 M12 37.9 73.9 137.9 136 1.9 14.0 1 3 Int. MZS1030MM12 M12 37.9 73.9 137.9 136 1.9 14.0 2 (Note) Please contact us for any geometry that is not in the catalogue (e.g. different diameter and length). CARBIDE OPERATION GUIDANCE -N119 N113 DRILLING
