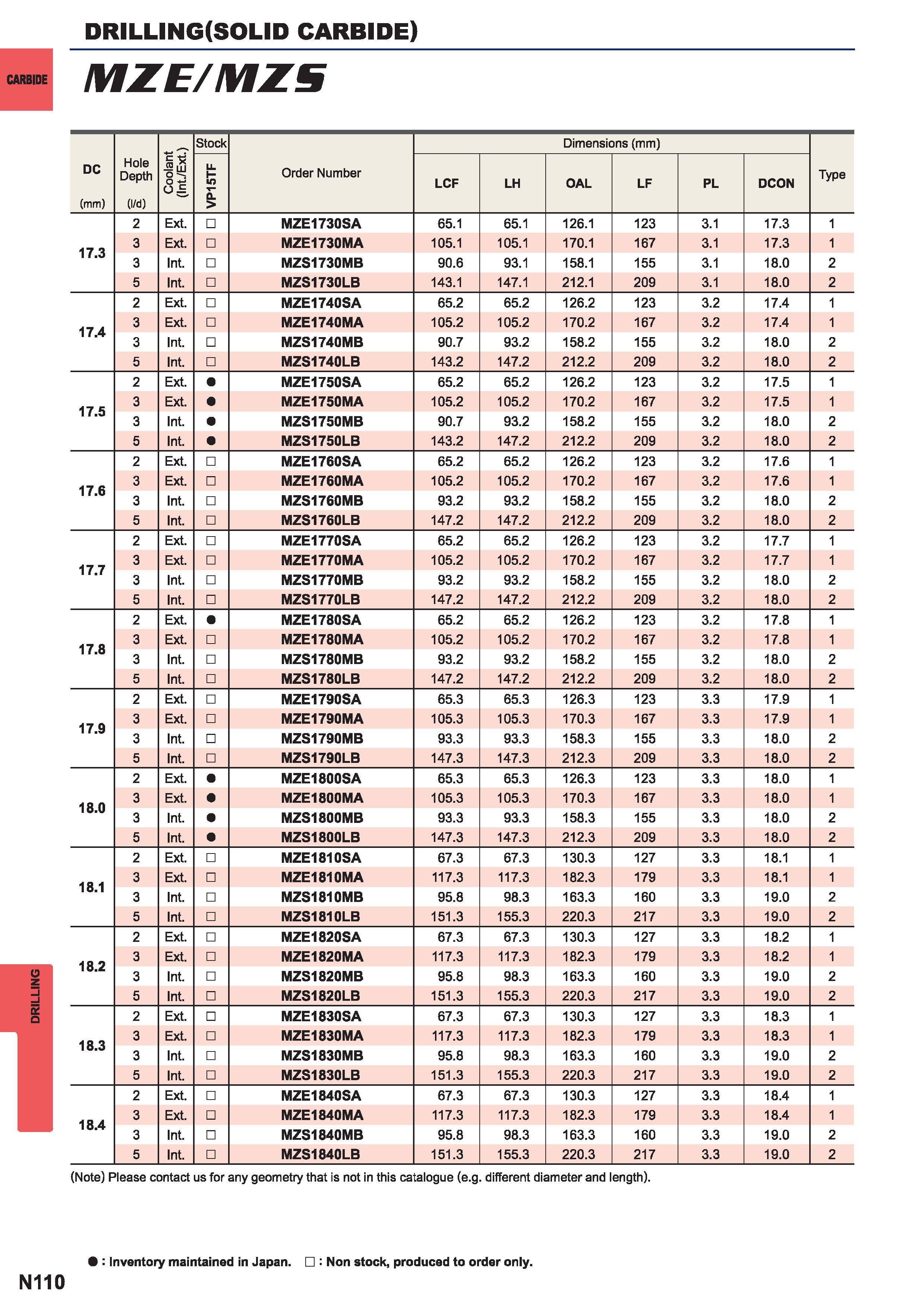

1426 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N110

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N110 1426 ENG Lab2u

DRILLING DRILLING (SOLID CARBIDE) MZE MIS DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) Type VP15TF LCF LH OAL LF PL DCON 2 Ext. MZE1730SA 65.1 65.1 126.1 123 3.1 17.3 1 17.3 3 Ext. MZE1730MA 105.1 105.1 170.1 167 3.1 17.3 1 3 Int. MZS1730MB 90.6 93.1 158.1 155 3.1 18.0 2 5 Int. MZS1730LB 143.1 147.1 212.1 209 3.1 18.0 2 2 Ext. MZE1740SA 65.2 65.2 126.2 123 3.2 17.4 1 17.4 3 Ext. MZE1740MA 105.2 105.2 170.2 167 3.2 17.4 1 3 Int. MZS1740MB 90.7 93.2 158.2 155 3.2 18.0 2 5 Int. MZS1740LB 143.2 147.2 212.2 209 3.2 18.0 2 2 Ext. MZE1750SA 65.2 65.2 126.2 123 3.2 17.5 1 17.5 3 Ext. MZE1750MA 105.2 105.2 170.2 167 3.2 17.5 1 3 Int. MZS1750MB 90.7 93.2 158.2 155 3.2 18.0 2 5 Int. MZS1750LB 143.2 147.2 212.2 209 3.2 18.0 2 2 Ext. MZE1760SA 65.2 65.2 126.2 123 3.2 17.6 1 17.6 3 Ext. MZE1760MA 105.2 105.2 170.2 167 3.2 17.6 1 3 Int. MZS1760MB 93.2 93.2 158.2 155 3.2 18.0 2 5 Int. MZS1760LB 147.2 147.2 212.2 209 3.2 18.0 2 2 Ext. MZE1770SA 65.2 65.2 126.2 123 3.2 17.7 1 17.7 3 Ext. MZE1770MA 105.2 105.2 170.2 167 3.2 17.7 1 3 Int. MZS1770MB 93.2 93.2 158.2 155 3.2 18.0 2 5 Int. MZS1770LB 147.2 147.2 212.2 209 3.2 18.0 2 2 Ext. MZE1780SA 65.2 65.2 126.2 123 3.2 17.8 1 17.8 3 Ext. MZE1780MA 105.2 105.2 170.2 167 3.2 17.8 1 3 Int. MZS1780MB 93.2 93.2 158.2 155 3.2 18.0 2 5 Int. MZS1780LB 147.2 147.2 212.2 209 3.2 18.0 2 2 Ext. MZE1790SA 65.3 65.3 126.3 123 3.3 17.9 1 17.9 3 Ext. MZE1790MA 105.3 105.3 170.3 167 3.3 17.9 1 3 Int. MZS1790MB 93.3 93.3 158.3 155 3.3 18.0 2 5 Int. MZS1790LB 147.3 147.3 212.3 209 3.3 18.0 2 2 Ext. MZE1800SA 65.3 65.3 126.3 123 3.3 18.0 1 18.0 3 Ext. MZE1800MA 105.3 105.3 170.3 167 3.3 18.0 1 3 Int. MZS1800MB 93.3 93.3 158.3 155 3.3 18.0 2 5 Int. MZS1800LB 147.3 147.3 212.3 209 3.3 18.0 2 2 Ext. MZE1810SA 67.3 67.3 130.3 127 3.3 18.1 1 18.1 3 Ext. MZE1810MA 117.3 117.3 182.3 179 3.3 18.1 1 3 Int. MZS1810MB 95.8 98.3 163.3 160 3.3 19.0 2 5 Int. MZS1810LB 151.3 155.3 220.3 217 3.3 19.0 2 2 Ext. MZE1820SA 67.3 67.3 130.3 127 3.3 18.2 1 18.2 3 Ext. MZE1820MA 117.3 117.3 182.3 179 3.3 18.2 1 3 Int. MZS1820MB 95.8 98.3 163.3 160 3.3 19.0 2 5 Int. MZS1820LB 151.3 155.3 220.3 217 3.3 19.0 2 2 Ext. MZE1830SA 67.3 67.3 130.3 127 3.3 18.3 1 18.3 3 Ext. MZE1830MA 117.3 117.3 182.3 179 3.3 18.3 1 3 Int. MZS1830MB 95.8 98.3 163.3 160 3.3 19.0 2 5 Int. MZS1830LB 151.3 155.3 220.3 217 3.3 19.0 2 2 Ext. MZE1840SA 67.3 67.3 130.3 127 3.3 18.4 1 18.4 3 Ext. MZE1840MA 117.3 117.3 182.3 179 3.3 18.4 1 3 Int. MZS1840MB 95.8 98.3 163.3 160 3.3 19.0 2 5 Int. MZS1840LB 151.3 155.3 220.3 217 3.3 19.0 2 (Note) Please contact us for any geometry that is not in this catalogue (e.g. different diameter and length). Inventory maintained in Japan. Non stock produced to order only. N110
