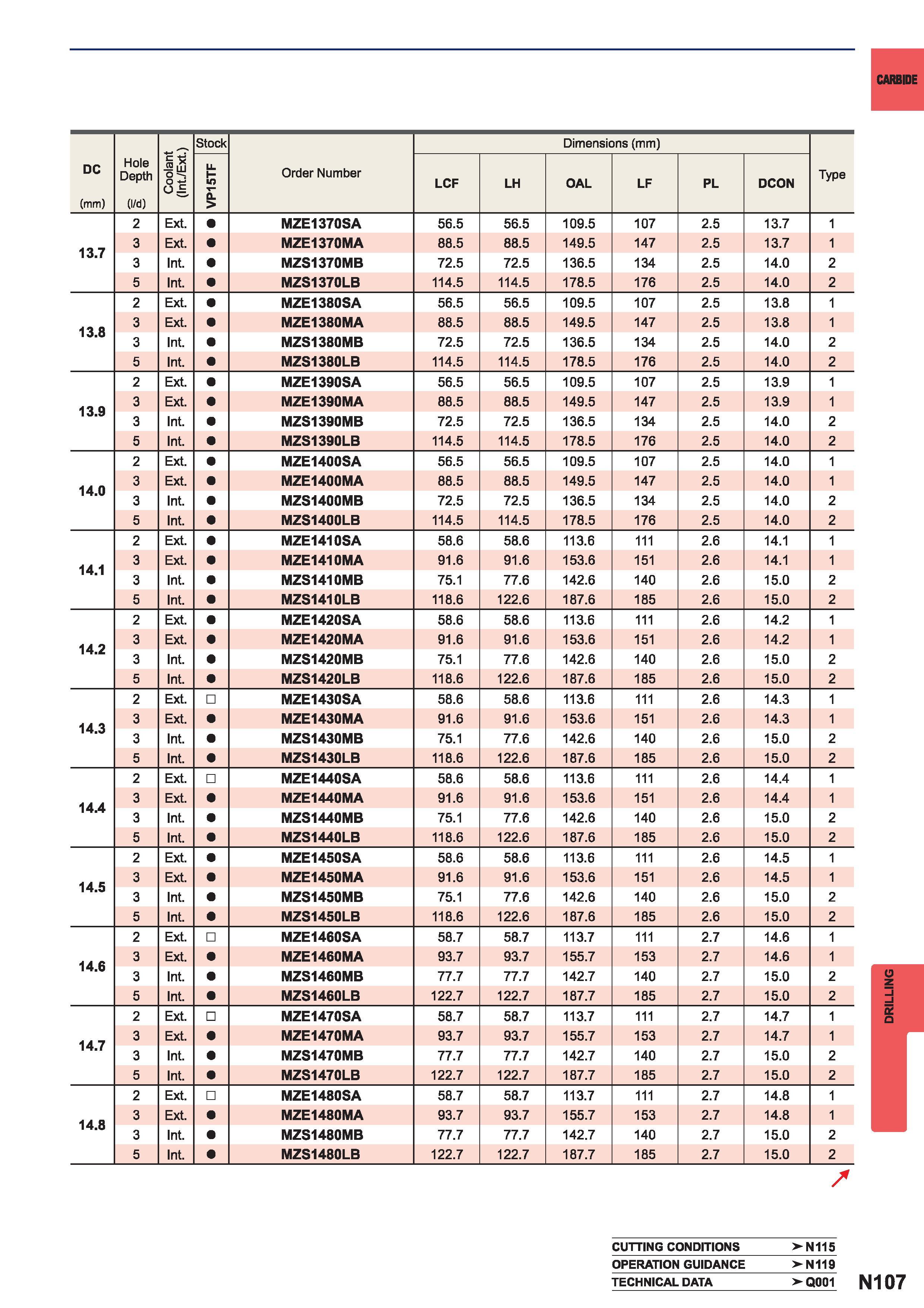

CARBIDE DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) Type LL H LCF LH OAL LF PL DCON 2 Ext. MZE1370SA 56.5 56.5 109.5 107 2.5 13.7 1 13.7 3 Ext. MZE1370MA 88.5 88.5 149.5 147 2.5 13.7 1 3 Int. MZS1370MB 72.5 72.5 136.5 134 2.5 14.0 2 5 Int. MZS1370LB 114.5 114.5 178.5 176 2.5 14.0 2 2 Ext. MZE1380SA 56.5 56.5 109.5 107 2.5 13.8 1 13.8 3 Ext. MZE1380MA 88.5 88.5 149.5 147 2.5 13.8 1 3 Int. MZS1380MB 72.5 72.5 136.5 134 2.5 14.0 2 5 Int. MZS1380LB 114.5 114.5 178.5 176 2.5 14.0 2 2 Ext. MZE1390SA 56.5 56.5 109.5 107 2.5 13.9 1 13.9 3 Ext. MZE1390MA 88.5 88.5 149.5 147 2.5 13.9 1 3 Int. MZS1390MB 72.5 72.5 136.5 134 2.5 14.0 2 5 Int. MZS1390LB 114.5 114.5 178.5 176 2.5 14.0 2 2 Ext. MZE1400SA 56.5 56.5 109.5 107 2.5 14.0 1 14.0 3 Ext. MZE1400MA 88.5 88.5 149.5 147 2.5 14.0 1 3 Int. MZS1400MB 72.5 72.5 136.5 134 2.5 14.0 2 5 Int. MZS1400LB 114.5 114.5 178.5 176 2.5 14.0 2 2 Ext. MZE141OSA 58.6 58.6 113.6 111 2.6 14.1 1 14.1 3 Ext. MZE1410MA 91.6 91.6 153.6 151 2.6 14.1 1 3 Int. MZS1410MB 75.1 77.6 142.6 140 2.6 15.0 2 5 Int. MZS1410LB 118.6 122.6 187.6 185 2.6 15.0 2 2 Ext. MZE1420SA 58.6 58.6 113.6 111 2.6 14.2 1 14.2 3 Ext. MZE1420MA 91.6 91.6 153.6 151 2.6 14.2 1 3 Int. MZS1420MB 75.1 77.6 142.6 140 2.6 15.0 2 5 Int. MZS1420LB 118.6 122.6 187.6 185 2.6 15.0 2 2 Ext. MZE1430SA 58.6 58.6 113.6 111 2.6 14.3 1 14.3 3 Ext. MZE1430MA 91.6 91.6 153.6 151 2.6 14.3 1 3 Int. MZS1430MB 75.1 77.6 142.6 140 2.6 15.0 2 5 Int. MZS1430LB 118.6 122.6 187.6 185 2.6 15.0 2 2 Ext. MZE1440SA 58.6 58.6 113.6 111 2.6 14.4 1 14.4 3 Ext. MZE1440MA 91.6 91.6 153.6 151 2.6 14.4 1 3 Int. MZS1440MB 75.1 77.6 142.6 140 2.6 15.0 2 5 Int. MZS1440LB 118.6 122.6 187.6 185 2.6 15.0 2 2 Ext. MZE1450SA 58.6 58.6 113.6 111 2.6 14.5 1 14.5 3 Ext. MZE1450MA 91.6 91.6 153.6 151 2.6 14.5 1 3 Int. MZS1450MB 75.1 77.6 142.6 140 2.6 15.0 2 5 Int. MZS1450LB 118.6 122.6 187.6 185 2.6 15.0 2 2 Ext. MZE1460SA 58.7 58.7 113.7 111 2.7 14.6 1 14.6 3 Ext. MZE1460MA 93.7 93.7 155.7 153 2.7 14.6 1 3 Int. MZS1460MB 77.7 77.7 142.7 140 2.7 15.0 2 5 Int. MZS1460LB 122.7 122.7 187.7 185 2.7 15.0 2 2 Ext. MZE1470SA 58.7 58.7 113.7 111 2.7 14.7 1 14.7 3 Ext. MZE1470MA 93.7 93.7 155.7 153 2.7 14.7 1 3 Int. MZS1470MB 77.7 77.7 142.7 140 2.7 15.0 2 5 Int. MZS1470LB 122.7 122.7 187.7 185 2.7 15.0 2 2 Ext. MZE1480SA 58.7 58.7 113.7 111 2.7 14.8 1 14.8 3 Ext. MZE1480MA 93.7 93.7 155.7 153 2.7 14.8 1 3 Int. MZS1480MB 77.7 77.7 142.7 140 2.7 15.0 2 5 Int. MZS1480LB 122.7 122.7 187.7 185 2.7 15.0 2 CUTTING CONDITIONS N115 OPERATION GUIDANCE -N119 TECHNICAL DATA -Q001 N107 DRILLING
