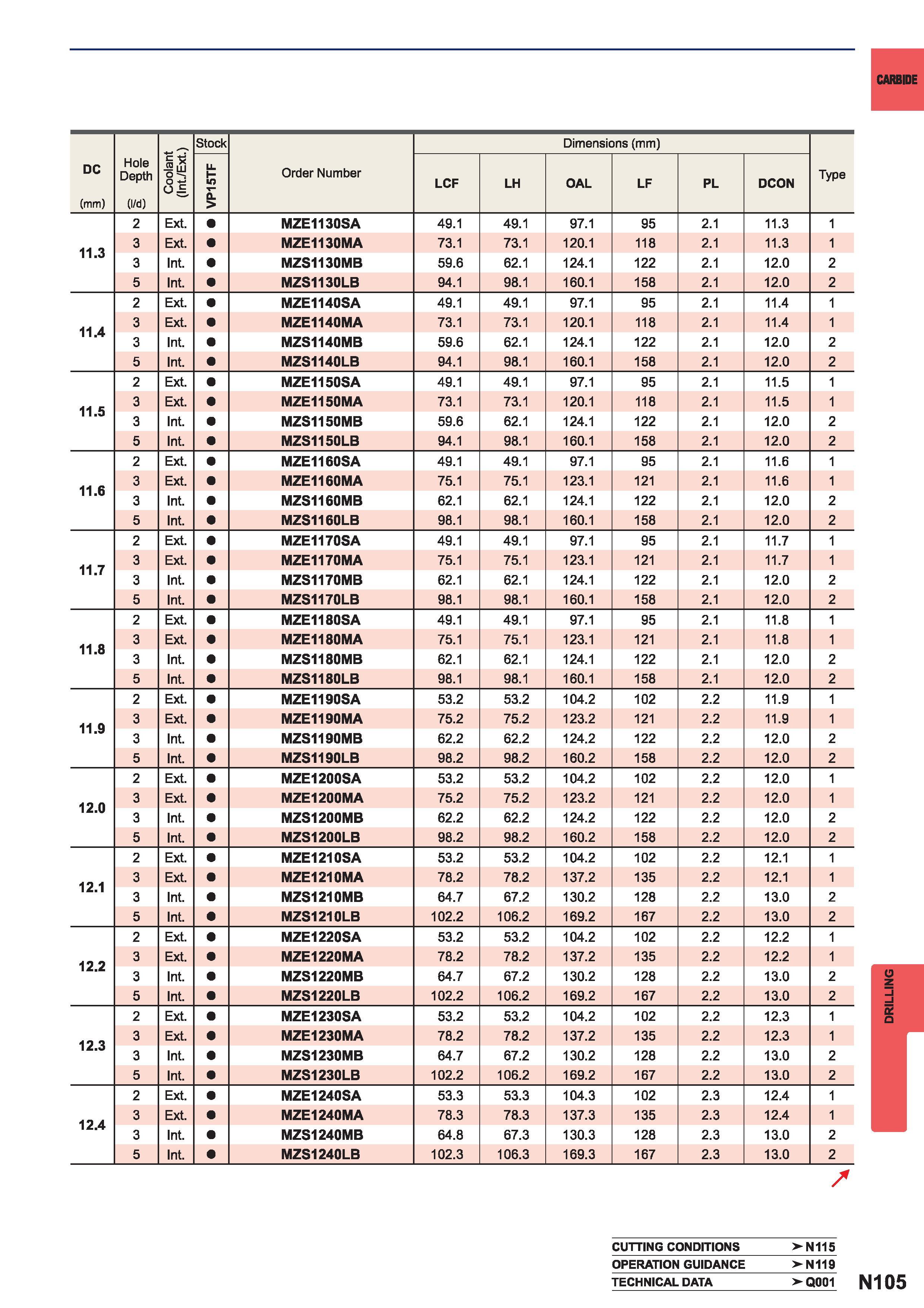

CARBIDE DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) Type LL H LCF LH OAL LF PL DCON 2 Ext. MZE1130SA 49.1 49.1 97.1 95 2.1 11.3 1 11.3 3 Ext. MZE1130MA 73.1 73.1 120.1 118 2.1 11.3 1 3 Int. MZS1130MB 59.6 62.1 124.1 122 2.1 12.0 2 5 Int. MZS1130LB 94.1 98.1 160.1 158 2.1 12.0 2 2 Ext. MZE1140SA 49.1 49.1 97.1 95 2.1 11.4 1 11.4 3 Ext. MZE1140MA 73.1 73.1 120.1 118 2.1 11.4 1 3 Int. MZS1140MB 59.6 62.1 124.1 122 2.1 12.0 2 5 Int. MZS1140LB 94.1 98.1 160.1 158 2.1 12.0 2 2 Ext. MZE1150SA 49.1 49.1 97.1 95 2.1 11.5 1 11.5 3 Ext. MZE1150MA 73.1 73.1 120.1 118 2.1 11.5 1 3 Int. MZS1150MB 59.6 62.1 124.1 122 2.1 12.0 2 5 Int. MZS1150LB 94.1 98.1 160.1 158 2.1 12.0 2 2 Ext. MZE1160SA 49.1 49.1 97.1 95 2.1 11.6 1 11.6 3 Ext. MZE1160MA 75.1 75.1 123.1 121 2.1 11.6 1 3 Int. MZS1160MB 62.1 62.1 124.1 122 2.1 12.0 2 5 Int. MZS1160LB 98.1 98.1 160.1 158 2.1 12.0 2 2 Ext. MZE1170SA 49.1 49.1 97.1 95 2.1 11.7 1 11.7 3 Ext. MZE1170MA 75.1 75.1 123.1 121 2.1 11.7 1 3 Int. MZS1170MB 62.1 62.1 124.1 122 2.1 12.0 2 5 Int. MZS1170LB 98.1 98.1 160.1 158 2.1 12.0 2 2 Ext. MZE1180SA 49.1 49.1 97.1 95 2.1 11.8 1 11.8 3 Ext. MZE1180MA 75.1 75.1 123.1 121 2.1 11.8 1 3 Int. MZS1180MB 62.1 62.1 124.1 122 2.1 12.0 2 5 Int. MZS1180LB 98.1 98.1 160.1 158 2.1 12.0 2 2 Ext. MZE1190SA 53.2 53.2 104.2 102 2.2 11.9 1 11.9 3 Ext. MZE1190MA 75.2 75.2 123.2 121 2.2 11.9 1 3 Int. MZS1190MB 62.2 62.2 124.2 122 2.2 12.0 2 5 Int. MZS1190LB 98.2 98.2 160.2 158 2.2 12.0 2 2 Ext. MZE1200SA 53.2 53.2 104.2 102 2.2 12.0 1 12.0 3 Ext. MZE1200MA 75.2 75.2 123.2 121 2.2 12.0 1 3 Int. MZS1200MB 62.2 62.2 124.2 122 2.2 12.0 2 5 Int. MZS1200LB 98.2 98.2 160.2 158 2.2 12.0 2 2 Ext. MZE1210SA 53.2 53.2 104.2 102 2.2 12.1 1 12.1 3 Ext. MZE1210MA 78.2 78.2 137.2 135 2.2 12.1 1 3 Int. MZS1210MB 64.7 67.2 130.2 128 2.2 13.0 2 5 Int. MZS1210LB 102.2 106.2 169.2 167 2.2 13.0 2 2 Ext. MZE1220SA 53.2 53.2 104.2 102 2.2 12.2 1 12.2 3 Ext. MZE1220MA 78.2 78.2 137.2 135 2.2 12.2 1 3 Int. MZS1220MB 64.7 67.2 130.2 128 2.2 13.0 2 5 Int. MZS1220LB 102.2 106.2 169.2 167 2.2 13.0 2 2 Ext. MZE1230SA 53.2 53.2 104.2 102 2.2 12.3 1 12.3 3 Ext. MZE1230MA 78.2 78.2 137.2 135 2.2 12.3 1 3 Int. MZS1230MB 64.7 67.2 130.2 128 2.2 13.0 2 5 Int. MZS1230LB 102.2 106.2 169.2 167 2.2 13.0 2 2 Ext. MZE1240SA 53.3 53.3 104.3 102 2.3 12.4 1 12.4 3 Ext. MZE1240MA 78.3 78.3 137.3 135 2.3 12.4 1 3 Int. MZS1240MB 64.8 67.3 130.3 128 2.3 13.0 2 5 Int. MZS1240LB 102.3 106.3 169.3 167 2.3 13.0 2 CUTTING CONDITIONS N115 OPERATION GUIDANCE -N119 TECHNICAL DATA -Q001 N105 DRILLING
