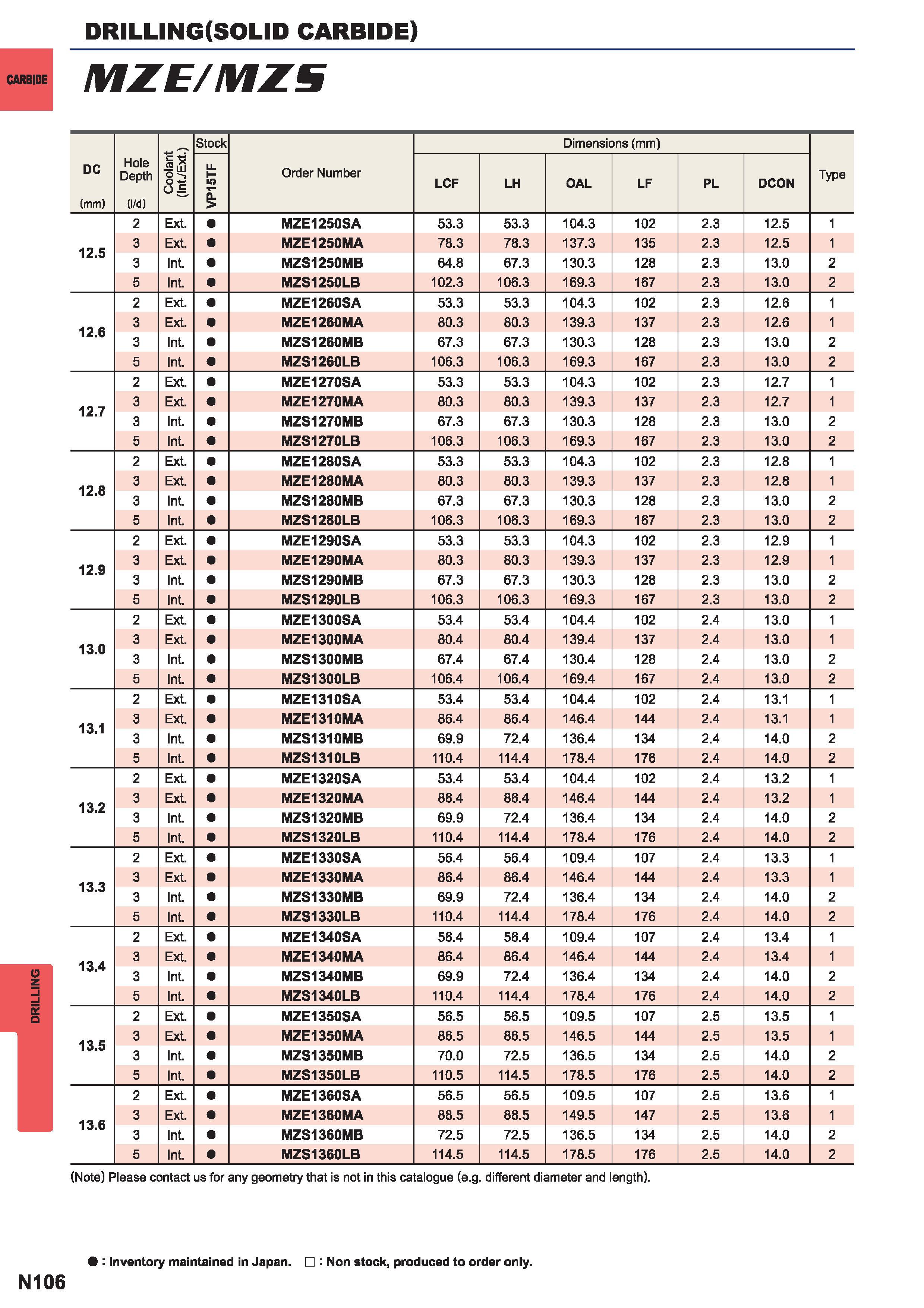

1422 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N106

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N106 1422 ENG Lab2u

DRILLING DRILLING (SOLID CARBIDE) M.IE MIS DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) Type LL H LCF LH OAL LF PL DCON 2 Ext. MZE1250SA 53.3 53.3 104.3 102 2.3 12.5 1 12.5 3 Ext. MZE1250MA 78.3 78.3 137.3 135 2.3 12.5 1 3 Int. MZS1250MB 64.8 67.3 130.3 128 2.3 13.0 2 5 Int. MZS1250LB 102.3 106.3 169.3 167 2.3 13.0 2 2 Ext. MZE1260SA 53.3 53.3 104.3 102 2.3 12.6 1 12.6 3 Ext. MZE1260MA 80.3 80.3 139.3 137 2.3 12.6 1 3 Int. MZS1260MB 67.3 67.3 130.3 128 2.3 13.0 2 5 Int. MZS1260LB 106.3 106.3 169.3 167 2.3 13.0 2 2 Ext. MZE1270SA 53.3 53.3 104.3 102 2.3 12.7 1 12.7 3 Ext. MZE1270MA 80.3 80.3 139.3 137 2.3 12.7 1 3 Int. MZS1270MB 67.3 67.3 130.3 128 2.3 13.0 2 5 Int. MZS1270LB 106.3 106.3 169.3 167 2.3 13.0 2 2 Ext. MZE1280SA 53.3 53.3 104.3 102 2.3 12.8 1 12.8 3 Ext. MZE1280MA 80.3 80.3 139.3 137 2.3 12.8 1 3 Int. MZS1280MB 67.3 67.3 130.3 128 2.3 13.0 2 5 Int. MZS1280LB 106.3 106.3 169.3 167 2.3 13.0 2 2 Ext. MZE1290SA 53.3 53.3 104.3 102 2.3 12.9 1 12.9 3 Ext. MZE1290MA 80.3 80.3 139.3 137 2.3 12.9 1 3 Int. MZS1290MB 67.3 67.3 130.3 128 2.3 13.0 2 5 Int. MZS1290LB 106.3 106.3 169.3 167 2.3 13.0 2 2 Ext. MZE1300SA 53.4 53.4 104.4 102 2.4 13.0 1 13.0 3 Ext. MZE1300MA 80.4 80.4 139.4 137 2.4 13.0 1 3 Int. MZS1300MB 67.4 67.4 130.4 128 2.4 13.0 2 5 Int. MZS1300LB 106.4 106.4 169.4 167 2.4 13.0 2 2 Ext. MZE1310SA 53.4 53.4 104.4 102 2.4 13.1 1 13.1 3 Ext. MZE1310MA 86.4 86.4 146.4 144 2.4 13.1 1 3 Int. MZS1310MB 69.9 72.4 136.4 134 2.4 14.0 2 5 Int. MZS1310LB 110.4 114.4 178.4 176 2.4 14.0 2 2 Ext. MZE1320SA 53.4 53.4 104.4 102 2.4 13.2 1 13.2 3 Ext. MZE1320MA 86.4 86.4 146.4 144 2.4 13.2 1 3 Int. MZS1320MB 69.9 72.4 136.4 134 2.4 14.0 2 5 Int. MZS1320LB 110.4 114.4 178.4 176 2.4 14.0 2 2 Ext. MZE1330SA 56.4 56.4 109.4 107 2.4 13.3 1 13.3 3 Ext. MZE1330MA 86.4 86.4 146.4 144 2.4 13.3 1 3 Int. MZS1330MB 69.9 72.4 136.4 134 2.4 14.0 2 5 Int. MZS1330LB 110.4 114.4 178.4 176 2.4 14.0 2 2 Ext. MZE1340SA 56.4 56.4 109.4 107 2.4 13.4 1 13.4 3 Ext. MZE1340MA 86.4 86.4 146.4 144 2.4 13.4 1 3 Int. MZS1340MB 69.9 72.4 136.4 134 2.4 14.0 2 5 Int. MZS1340LB 110.4 114.4 178.4 176 2.4 14.0 2 2 Ext. MZE1350SA 56.5 56.5 109.5 107 2.5 13.5 1 13.5 3 Ext. MZE1350MA 86.5 86.5 146.5 144 2.5 13.5 1 3 Int. MZS1350MB 70.0 72.5 136.5 134 2.5 14.0 2 5 Int. MZS1350LB 110.5 114.5 178.5 176 2.5 14.0 2 2 Ext. MZE1360SA 56.5 56.5 109.5 107 2.5 13.6 1 13.6 3 Ext. MZE1360MA 88.5 88.5 149.5 147 2.5 13.6 1 3 Int. MZS1360MB 72.5 72.5 136.5 134 2.5 14.0 2 5 Int. MZS1360LB 114.5 114.5 178.5 176 2.5 14.0 2 (Note) Please contact us for any geometry that is not In this catalogue (e.g. different diameter and length). Inventory maintained in Japan. Non stock produced to order only. N106
