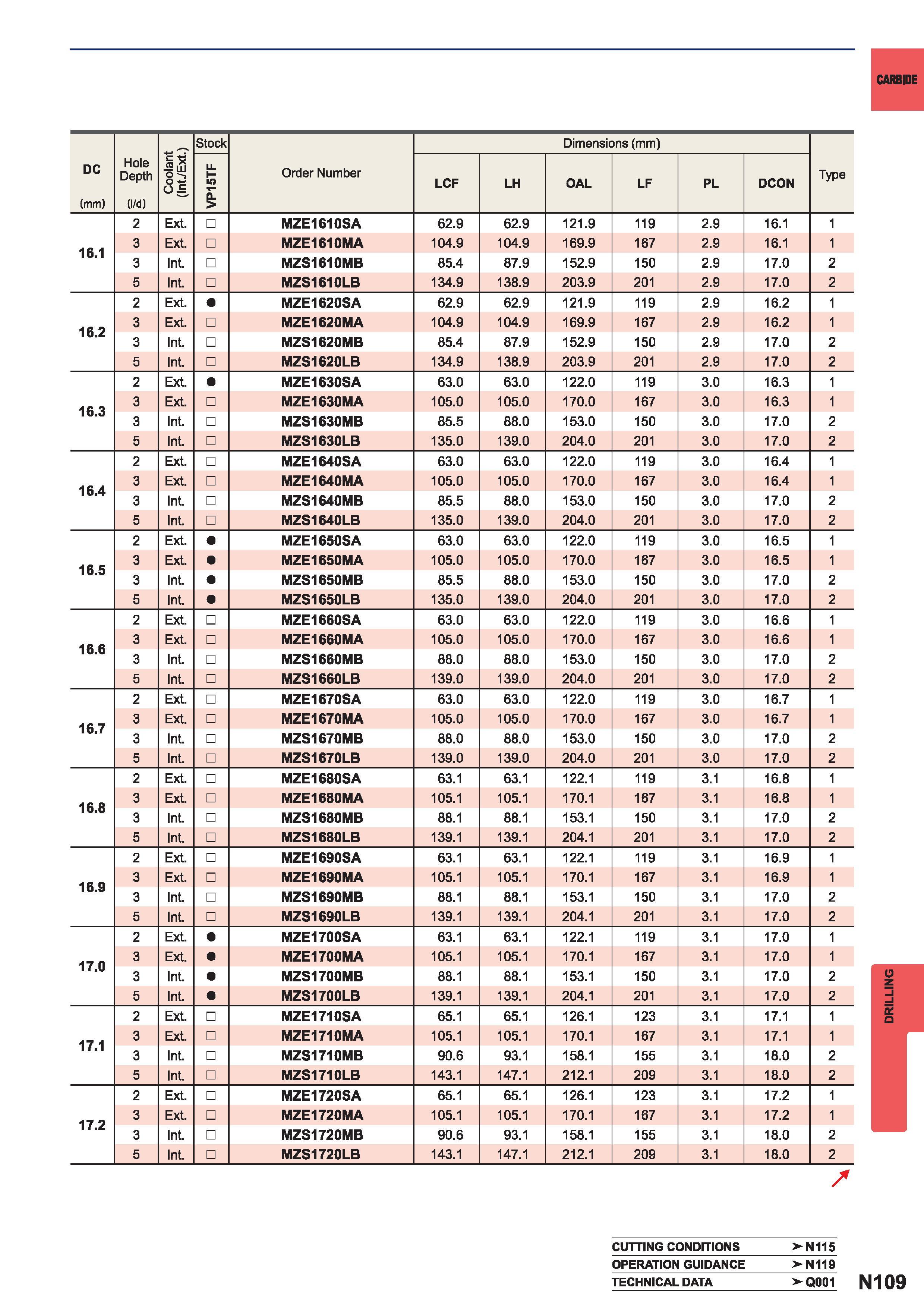

1425 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N109

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N109 1425 ENG Lab2u

CARBIDE DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) Type VP15TF LCF LH OAL LF PL DCON 2 Ext. MZE1610SA 62.9 62.9 121.9 119 2.9 16.1 1 16.1 3 Ext. MZE1610MA 104.9 104.9 169.9 167 2.9 16.1 1 3 Int. MZS1610MB 85.4 87.9 152.9 150 2.9 17.0 2 5 Int. MZS1610LB 134.9 138.9 203.9 201 2.9 17.0 2 2 Ext. MZE1620SA 62.9 62.9 121.9 119 2.9 16.2 1 16.2 3 Ext. MZE1620MA 104.9 104.9 169.9 167 2.9 16.2 1 3 Int. MZS1620MB 85.4 87.9 152.9 150 2.9 17.0 2 5 Int. MZS1620LB 134.9 138.9 203.9 201 2.9 17.0 2 2 Ext. MZE1630SA 63.0 63.0 122.0 119 3.0 16.3 1 16.3 3 Ext. MZE1630MA 105.0 105.0 170.0 167 3.0 16.3 1 3 Int. MZS1630MB 85.5 88.0 153.0 150 3.0 17.0 2 5 Int. MZS1630LB 135.0 139.0 204.0 201 3.0 17.0 2 2 Ext. MZE1640SA 63.0 63.0 122.0 119 3.0 16.4 1 16.4 3 Ext. MZE1640MA 105.0 105.0 170.0 167 3.0 16.4 1 3 Int. MZS1640MB 85.5 88.0 153.0 150 3.0 17.0 2 5 Int. MZS1640LB 135.0 139.0 204.0 201 3.0 17.0 2 2 Ext. MZE1650SA 63.0 63.0 122.0 119 3.0 16.5 1 16.5 3 Ext. MZE1650MA 105.0 105.0 170.0 167 3.0 16.5 1 3 Int. MZS1650MB 85.5 88.0 153.0 150 3.0 17.0 2 5 Int. MZS1650LB 135.0 139.0 204.0 201 3.0 17.0 2 2 Ext. MZE1660SA 63.0 63.0 122.0 119 3.0 16.6 1 16.6 3 Ext. MZE1660MA 105.0 105.0 170.0 167 3.0 16.6 1 3 Int. MZS1660MB 88.0 88.0 153.0 150 3.0 17.0 2 5 Int. MZS1660LB 139.0 139.0 204.0 201 3.0 17.0 2 2 Ext. MZE1670SA 63.0 63.0 122.0 119 3.0 16.7 1 16.7 3 Ext. MZE1670MA 105.0 105.0 170.0 167 3.0 16.7 1 3 Int. MZS1670MB 88.0 88.0 153.0 150 3.0 17.0 2 5 Int. MZS1670LB 139.0 139.0 204.0 201 3.0 17.0 2 2 Ext. MZE1680SA 63.1 63.1 122.1 119 3.1 16.8 1 16.8 3 Ext. MZE1680MA 105.1 105.1 170.1 167 3.1 16.8 1 3 Int. MZS1680MB 88.1 88.1 153.1 150 3.1 17.0 2 5 Int. MZS1680LB 139.1 139.1 204.1 201 3.1 17.0 2 2 Ext. MZE1690SA 63.1 63.1 122.1 119 3.1 16.9 1 16.9 3 Ext. MZE1690MA 105.1 105.1 170.1 167 3.1 16.9 1 3 Int. MZS1690MB 88.1 88.1 153.1 150 3.1 17.0 2 5 Int. MZS1690LB 139.1 139.1 204.1 201 3.1 17.0 2 2 Ext. MZE1700SA 63.1 63.1 122.1 119 3.1 17.0 1 17.0 3 Ext. MZE1700MA 105.1 105.1 170.1 167 3.1 17.0 1 3 Int. MZS1700MB 88.1 88.1 153.1 150 3.1 17.0 2 5 Int. MZS1700LB 139.1 139.1 204.1 201 3.1 17.0 2 2 Ext. MZE1710SA 65.1 65.1 126.1 123 3.1 17.1 1 17.1 3 Ext. MZE1710MA 105.1 105.1 170.1 167 3.1 17.1 1 3 Int. MZS1710MB 90.6 93.1 158.1 155 3.1 18.0 2 5 Int. MZS1710LB 143.1 147.1 212.1 209 3.1 18.0 2 2 Ext. MZE1720SA 65.1 65.1 126.1 123 3.1 17.2 1 17.2 3 Ext. MZE1720MA 105.1 105.1 170.1 167 3.1 17.2 1 3 Int. MZS1720MB 90.6 93.1 158.1 155 3.1 18.0 2 5 Int. MZS1720LB 143.1 147.1 212.1 209 3.1 18.0 2 CUTTING CONDITIONS N115 OPERATION GUIDANCE -N119 TECHNICAL DATA -Q001 N109 DRILLING
