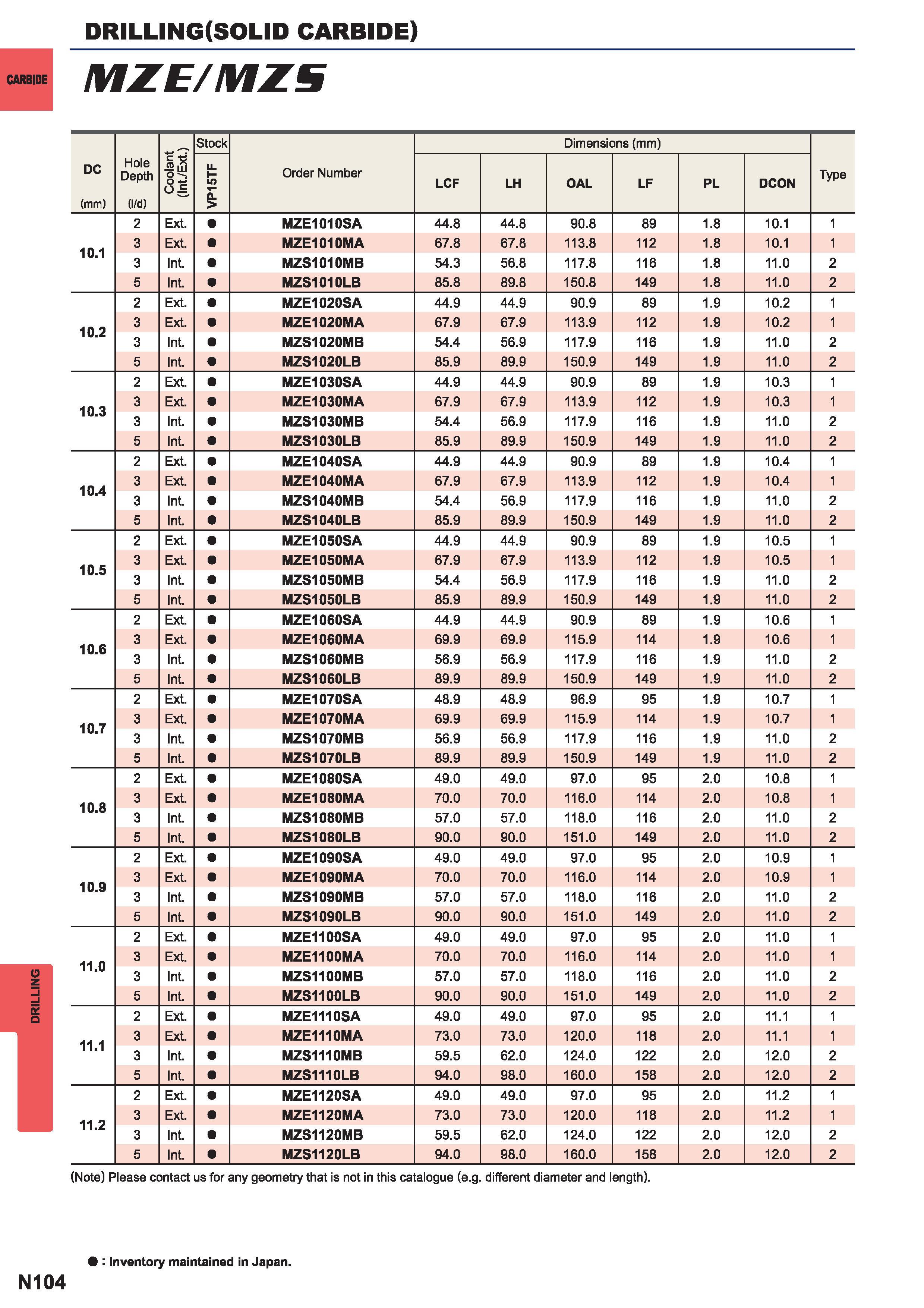

DRILLING DRILLING (SOLID CARBIDE) M.IE MIS DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) Type U H LCF LH OAL LF PL DCON 2 Ext. MZE1010SA 44.8 44.8 90.8 89 1.8 10.1 1 10.1 3 Ext. MZE1010MA 67.8 67.8 113.8 112 1.8 10.1 1 3 Int. MZS1010MB 54.3 56.8 117.8 116 1.8 11.0 2 5 Int. MZS1010LB 85.8 89.8 150.8 149 1.8 11.0 2 2 Ext. MZE1020SA 44.9 44.9 90.9 89 1.9 10.2 1 10.2 3 Ext. MZE1020MA 67.9 67.9 113.9 112 1.9 10.2 1 3 Int. MZS1020MB 54.4 56.9 117.9 116 1.9 11.0 2 5 Int. MZS1020LB 85.9 89.9 150.9 149 1.9 11.0 2 2 Ext. MZE1030SA 44.9 44.9 90.9 89 1.9 10.3 1 10.3 3 Ext. MZE1030MA 67.9 67.9 113.9 112 1.9 10.3 1 3 Int. MZS1030MB 54.4 56.9 117.9 116 1.9 11.0 2 5 Int. MZS1030LB 85.9 89.9 150.9 149 1.9 11.0 2 2 Ext. MZE1040SA 44.9 44.9 90.9 89 1.9 10.4 1 10.4 3 Ext. MZE1040MA 67.9 67.9 113.9 112 1.9 10.4 1 3 Int. MZS1040MB 54.4 56.9 117.9 116 1.9 11.0 2 5 Int. MZS1040LB 85.9 89.9 150.9 149 1.9 11.0 2 2 Ext. MZE1050SA 44.9 44.9 90.9 89 1.9 10.5 1 10.5 3 Ext. MZE1050MA 67.9 67.9 113.9 112 1.9 10.5 1 3 Int. MZS1050MB 54.4 56.9 117.9 116 1.9 11.0 2 5 Int. MZS1050LB 85.9 89.9 150.9 149 1.9 11.0 2 2 Ext. MZE1060SA 44.9 44.9 90.9 89 1.9 10.6 1 10.6 3 Ext. MZE1060MA 69.9 69.9 115.9 114 1.9 10.6 1 3 Int. MZS1060MB 56.9 56.9 117.9 116 1.9 11.0 2 5 Int. MZS1060LB 89.9 89.9 150.9 149 1.9 11.0 2 2 Ext. MZE1070SA 48.9 48.9 96.9 95 1.9 10.7 1 10.7 3 Ext. MZE1070MA 69.9 69.9 115.9 114 1.9 10.7 1 3 Int. MZS1070MB 56.9 56.9 117.9 116 1.9 11.0 2 5 Int. MZS1070LB 89.9 89.9 150.9 149 1.9 11.0 2 2 Ext. MZE1080SA 49.0 49.0 97.0 95 2.0 10.8 1 10.8 3 Ext. MZE1080MA 70.0 70.0 116.0 114 2.0 10.8 1 3 Int. MZS1080MB 57.0 57.0 118.0 116 2.0 11.0 2 5 Int. MZS1080LB 90.0 90.0 151.0 149 2.0 11.0 2 2 Ext. MZE1090SA 49.0 49.0 97.0 95 2.0 10.9 1 10.9 3 Ext. MZE1090MA 70.0 70.0 116.0 114 2.0 10.9 1 3 Int. MZS1090MB 57.0 57.0 118.0 116 2.0 11.0 2 5 Int. MZS1090LB 90.0 90.0 151.0 149 2.0 11.0 2 2 Ext. MZE1100SA 49.0 49.0 97.0 95 2.0 11.0 1 11.0 3 Ext. MZE1100MA 70.0 70.0 116.0 114 2.0 11.0 1 3 Int. MZS1100MB 57.0 57.0 118.0 116 2.0 11.0 2 5 Int. MZS1100LB 90.0 90.0 151.0 149 2.0 11.0 2 2 Ext. MZE1110SA 49.0 49.0 97.0 95 2.0 11.1 1 11.1 3 Ext. MZE1110MA 73.0 73.0 120.0 118 2.0 11.1 1 3 Int. MZS1110MB 59.5 62.0 124.0 122 2.0 12.0 2 5 Int. MZS1110LB 94.0 98.0 160.0 158 2.0 12.0 2 2 Ext. MZE1120SA 49.0 49.0 97.0 95 2.0 11.2 1 11.2 3 Ext. MZE1120MA 73.0 73.0 120.0 118 2.0 11.2 1 3 Int. MZS1120MB 59.5 62.0 124.0 122 2.0 12.0 2 5 Int. MZS1120LB 94.0 98.0 160.0 158 2.0 12.0 2 (Note) Please contact us for any geometry that is not in this catalogue (e.g. different diameter and length). Inventory maintained in Japan. N104
