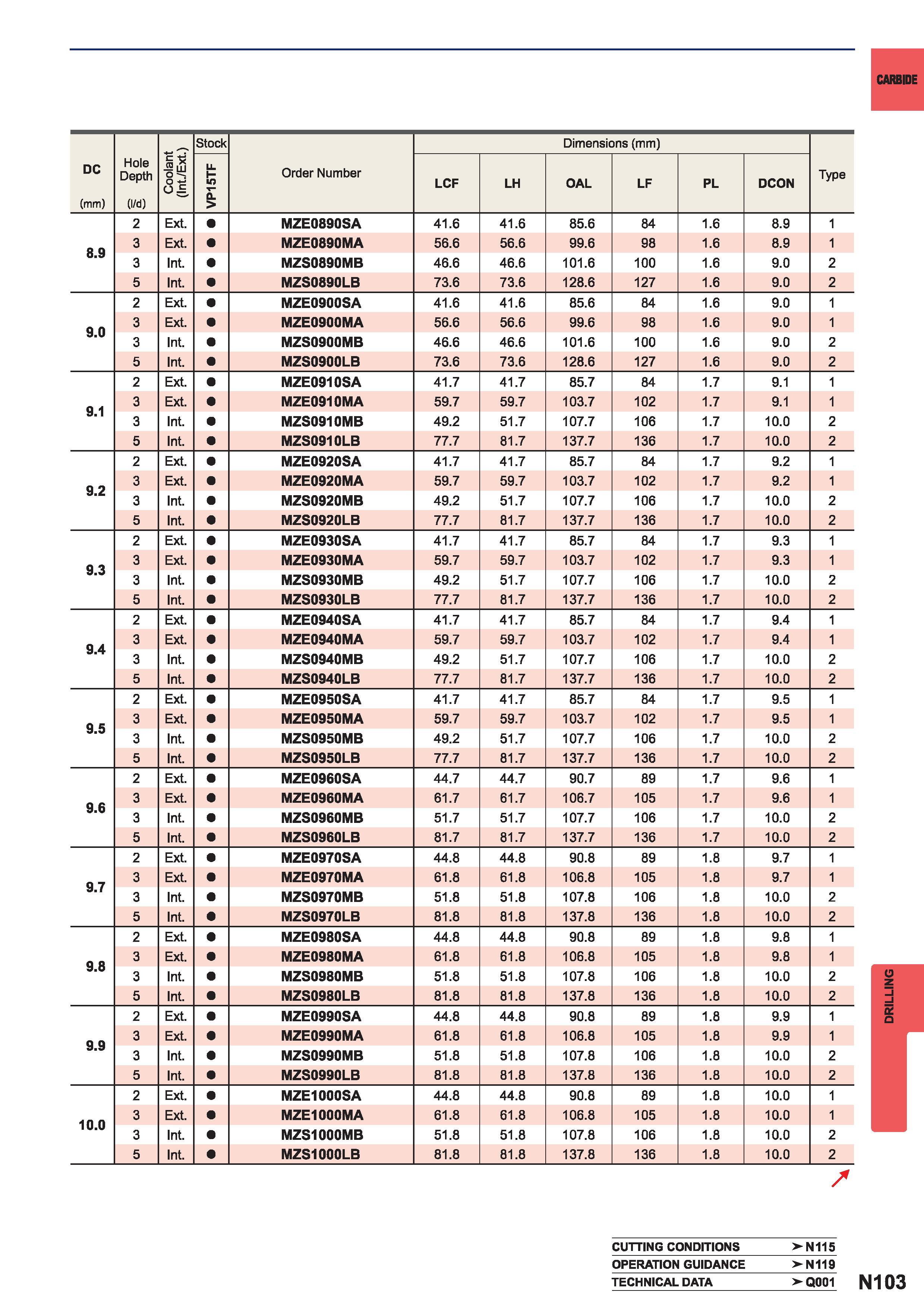

1419 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N103

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N103 1419 ENG Lab2u

CARBIDE DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) Type LL H LCF LH OAL LF PL DCON 2 Ext. MZE0890SA 41.6 41.6 85.6 84 1.6 8.9 1 8.9 3 Ext. MZE0890MA 56.6 56.6 99.6 98 1.6 8.9 1 3 Int. MZS0890MB 46.6 46.6 101.6 100 1.6 9.0 2 5 Int. MZS0890LB 73.6 73.6 128.6 127 1.6 9.0 2 2 Ext. MZE0900SA 41.6 41.6 85.6 84 1.6 9.0 1 9.0 3 Ext. MZE0900MA 56.6 56.6 99.6 98 1.6 9.0 1 3 Int. MZS0900MB 46.6 46.6 101.6 100 1.6 9.0 2 5 Int. MZS0900LB 73.6 73.6 128.6 127 1.6 9.0 2 2 Ext. MZE0910SA 41.7 41.7 85.7 84 1.7 9.1 1 9.1 3 Ext. MZE0910MA 59.7 59.7 103.7 102 1.7 9.1 1 3 Int. MZS0910MB 49.2 51.7 107.7 106 1.7 10.0 2 5 Int. MZS0910LB 77.7 81.7 137.7 136 1.7 10.0 2 2 Ext. MZE0920SA 41.7 41.7 85.7 84 1.7 9.2 1 9.2 3 Ext. MZE0920MA 59.7 59.7 103.7 102 1.7 9.2 1 3 Int. MZS0920MB 49.2 51.7 107.7 106 1.7 10.0 2 5 Int. MZS0920LB 77.7 81.7 137.7 136 1.7 10.0 2 2 Ext. MZE0930SA 41.7 41.7 85.7 84 1.7 9.3 1 9.3 3 Ext. MZE0930MA 59.7 59.7 103.7 102 1.7 9.3 1 3 Int. MZS0930MB 49.2 51.7 107.7 106 1.7 10.0 2 5 Int. MZS0930LB 77.7 81.7 137.7 136 1.7 10.0 2 2 Ext. MZE0940SA 41.7 41.7 85.7 84 1.7 9.4 1 9.4 3 Ext. MZE0940MA 59.7 59.7 103.7 102 1.7 9.4 1 3 Int. MZS0940MB 49.2 51.7 107.7 106 1.7 10.0 2 5 Int. MZS0940LB 77.7 81.7 137.7 136 1.7 10.0 2 2 Ext. MZE0950SA 41.7 41.7 85.7 84 1.7 9.5 1 9.5 3 Ext. MZE0950MA 59.7 59.7 103.7 102 1.7 9.5 1 3 Int. MZS0950MB 49.2 51.7 107.7 106 1.7 10.0 2 5 Int. MZS0950LB 77.7 81.7 137.7 136 1.7 10.0 2 2 Ext. MZE0960SA 44.7 44.7 90.7 89 1.7 9.6 1 9.6 3 Ext. MZE0960MA 61.7 61.7 106.7 105 1.7 9.6 1 3 Int. MZS0960MB 51.7 51.7 107.7 106 1.7 10.0 2 5 Int. MZS0960LB 81.7 81.7 137.7 136 1.7 10.0 2 2 Ext. MZE0970SA 44.8 44.8 90.8 89 1.8 9.7 1 9.7 3 Ext. MZE0970MA 61.8 61.8 106.8 105 1.8 9.7 1 3 Int. MZS0970MB 51.8 51.8 107.8 106 1.8 10.0 2 5 Int. MZS0970LB 81.8 81.8 137.8 136 1.8 10.0 2 2 Ext. MZE0980SA 44.8 44.8 90.8 89 1.8 9.8 1 9.8 3 Ext. MZE0980MA 61.8 61.8 106.8 105 1.8 9.8 1 3 Int. MZS0980MB 51.8 51.8 107.8 106 1.8 10.0 2 5 Int. MZS0980LB 81.8 81.8 137.8 136 1.8 10.0 2 2 Ext. MZE0990SA 44.8 44.8 90.8 89 1.8 9.9 1 9.9 3 Ext. MZE0990MA 61.8 61.8 106.8 105 1.8 9.9 1 3 Int. MZS0990MB 51.8 51.8 107.8 106 1.8 10.0 2 5 Int. MZS0990LB 81.8 81.8 137.8 136 1.8 10.0 2 2 Ext. MZE1000SA 44.8 44.8 90.8 89 1.8 10.0 1 10.0 3 Ext. MZE1000MA 61.8 61.8 106.8 105 1.8 10.0 1 3 Int. MZS1000MB 51.8 51.8 107.8 106 1.8 10.0 2 5 Int. MZS1000LB 81.8 81.8 137.8 136 1.8 10.0 2 CUTTING CONDITIONS N115 OPERATION GUIDANCE -N119 TECHNICAL DATA -Q001 N103 DRILLING
