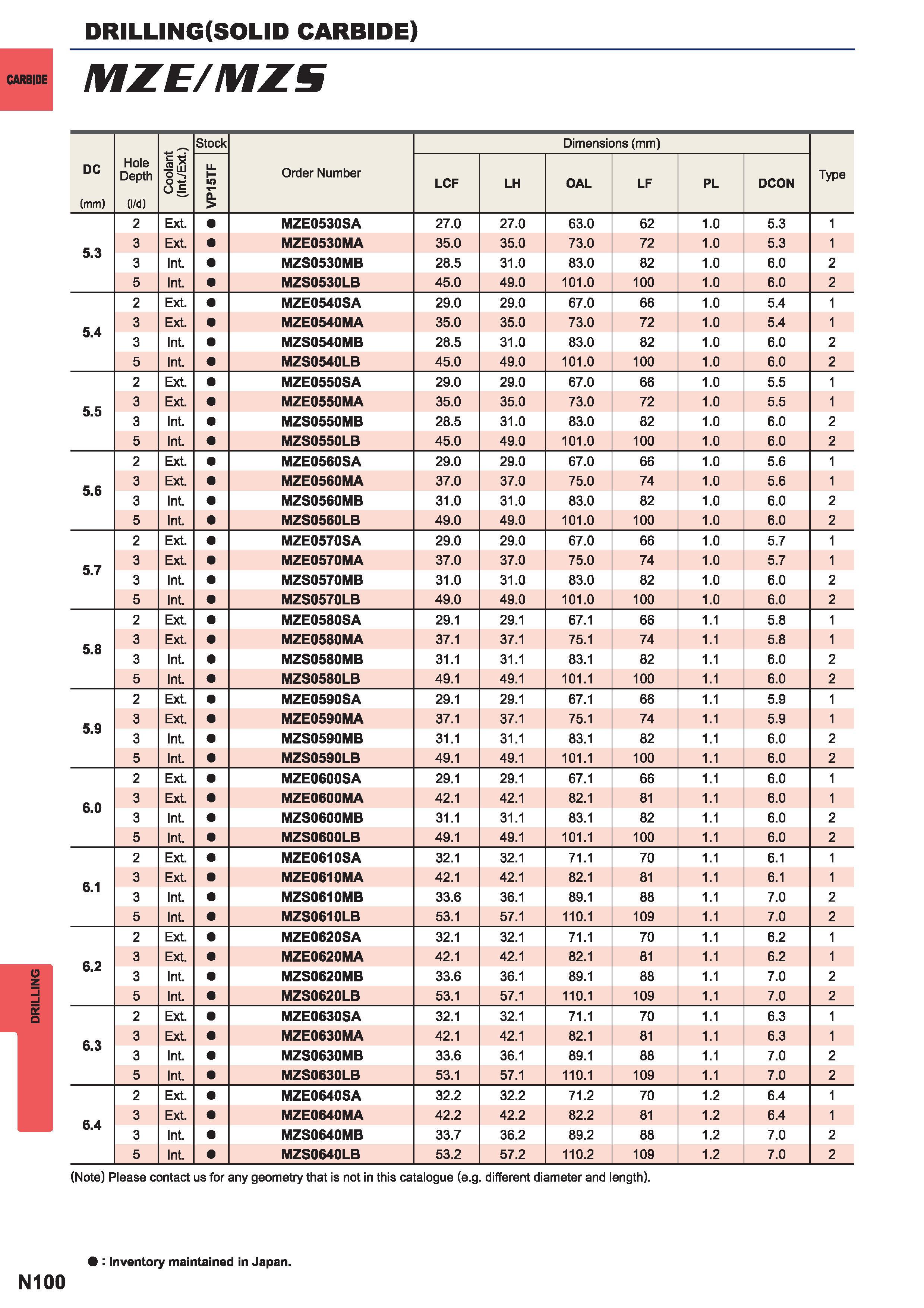

DRILLING DRILLING (SOLID CARBIDE) M.IE MIS DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) Type LL H LCF LH OAL LF PL DCON 2 Ext. MZE0530SA 27.0 27.0 63.0 62 1.0 5.3 1 5.3 3 Ext. MZE0530MA 35.0 35.0 73.0 72 1.0 5.3 1 3 Int. MZS0530MB 28.5 31.0 83.0 82 1.0 6.0 2 5 Int. MZS0530LB 45.0 49.0 101.0 100 1.0 6.0 2 2 Ext. MZE0540SA 29.0 29.0 67.0 66 1.0 5.4 1 5.4 3 Ext. MZE0540MA 35.0 35.0 73.0 72 1.0 5.4 1 3 Int. MZS0540MB 28.5 31.0 83.0 82 1.0 6.0 2 5 Int. MZS0540LB 45.0 49.0 101.0 100 1.0 6.0 2 2 Ext. MZE0550SA 29.0 29.0 67.0 66 1.0 5.5 1 5.5 3 Ext. MZE0550MA 35.0 35.0 73.0 72 1.0 5.5 1 3 Int. MZS0550MB 28.5 31.0 83.0 82 1.0 6.0 2 5 Int. MZS0550LB 45.0 49.0 101.0 100 1.0 6.0 2 2 Ext. MZE0560SA 29.0 29.0 67.0 66 1.0 5.6 1 5.6 3 Ext. MZE0560MA 37.0 37.0 75.0 74 1.0 5.6 1 3 Int. MZS0560MB 31.0 31.0 83.0 82 1.0 6.0 2 5 Int. MZS0560LB 49.0 49.0 101.0 100 1.0 6.0 2 2 Ext. MZE0570SA 29.0 29.0 67.0 66 1.0 5.7 1 5.7 3 Ext. MZE0570MA 37.0 37.0 75.0 74 1.0 5.7 1 3 Int. MZS0570MB 31.0 31.0 83.0 82 1.0 6.0 2 5 Int. MZS0570LB 49.0 49.0 101.0 100 1.0 6.0 2 2 Ext. MZE0580SA 29.1 29.1 67.1 66 1.1 5.8 1 5.8 3 Ext. MZE0580MA 37.1 37.1 75.1 74 1.1 5.8 1 3 Int. MZS0580MB 31.1 31.1 83.1 82 1.1 6.0 2 5 Int. MZS0580LB 49.1 49.1 101.1 100 1.1 6.0 2 2 Ext. MZE0590SA 29.1 29.1 67.1 66 1.1 5.9 1 5.9 3 Ext. MZE0590MA 37.1 37.1 75.1 74 1.1 5.9 1 3 Int. MZS0590MB 31.1 31.1 83.1 82 1.1 6.0 2 5 Int. MZS0590LB 49.1 49.1 101.1 100 1.1 6.0 2 2 Ext. MZE0600SA 29.1 29.1 67.1 66 1.1 6.0 1 6.0 3 Ext. MZE0600MA 42.1 42.1 82.1 81 1.1 6.0 1 3 Int. MZS0600MB 31.1 31.1 83.1 82 1.1 6.0 2 5 Int. MZS0600LB 49.1 49.1 101.1 100 1.1 6.0 2 2 Ext. MZE0610SA 32.1 32.1 71.1 70 1.1 6.1 1 6.1 3 Ext. MZE0610MA 42.1 42.1 82.1 81 1.1 6.1 1 3 Int. MZS0610MB 33.6 36.1 89.1 88 1.1 7.0 2 5 Int. MZS0610LB 53.1 57.1 110.1 109 1.1 7.0 2 2 Ext. MZE0620SA 32.1 32.1 71.1 70 1.1 6.2 1 6.2 3 Ext. MZE0620MA 42.1 42.1 82.1 81 1.1 6.2 1 3 Int. MZS0620MB 33.6 36.1 89.1 88 1.1 7.0 2 5 Int. MZS0620LB 53.1 57.1 110.1 109 1.1 7.0 2 2 Ext. MZE0630SA 32.1 32.1 71.1 70 1.1 6.3 1 6.3 3 Ext. MZE0630MA 42.1 42.1 82.1 81 1.1 6.3 1 3 Int. MZS0630MB 33.6 36.1 89.1 88 1.1 7.0 2 5 Int. MZS0630LB 53.1 57.1 110.1 109 1.1 7.0 2 2 Ext. MZE0640SA 32.2 32.2 71.2 70 1.2 6.4 1 6.4 3 Ext. MZE0640MA 42.2 42.2 82.2 81 1.2 6.4 1 3 Int. MZS0640MB 33.7 36.2 89.2 88 1.2 7.0 2 5 Int. MZS0640LB 53.2 57.2 110.2 109 1.2 7.0 2 (Note) Please contact us for any geometry that is not In this catalogue (e.g. different diameter and length). Inventory maintained in Japan. N100
