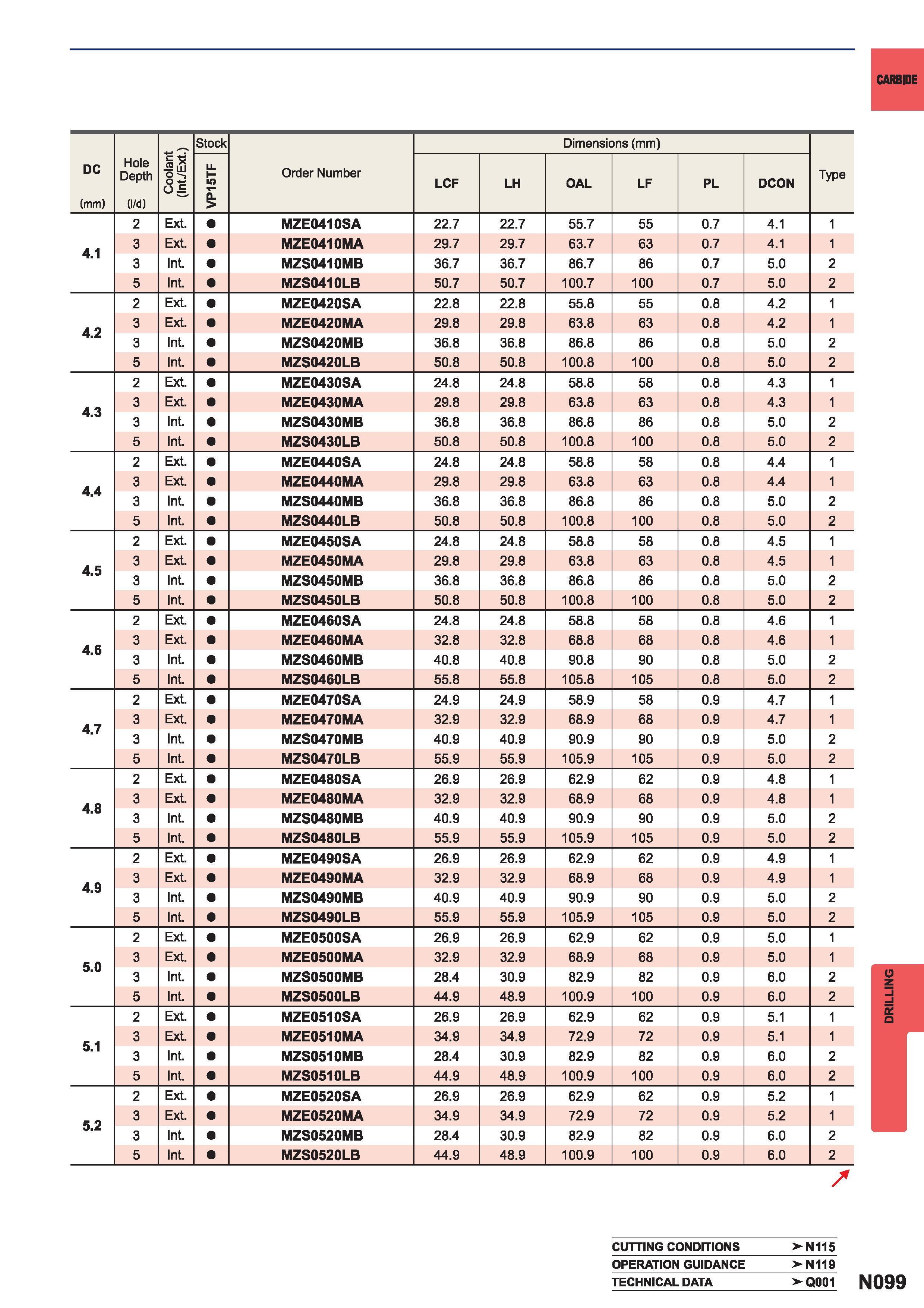

CARBIDE DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) Type LL H LCF LH OAL LF PL DCON 2 Ext. MZE0410SA 22.7 22.7 55.7 55 0.7 4.1 1 4.1 3 Ext. MZE0410MA 29.7 29.7 63.7 63 0.7 4.1 1 3 Int. MZS0410MB 36.7 36.7 86.7 86 0.7 5.0 2 5 Int. MZS0410LB 50.7 50.7 100.7 100 0.7 5.0 2 2 Ext. MZE0420SA 22.8 22.8 55.8 55 0.8 4.2 1 io 3 Ext. MZE0420MA 29.8 29.8 63.8 63 0.8 4.2 1 3 Int. MZS0420MB 36.8 36.8 86.8 86 0.8 5.0 2 5 Int. MZS0420LB 50.8 50.8 100.8 100 0.8 5.0 2 2 Ext. MZE0430SA 24.8 24.8 58.8 58 0.8 4.3 1 4.3 3 Ext. MZE0430MA 29.8 29.8 63.8 63 0.8 4.3 1 3 Int. MZS0430MB 36.8 36.8 86.8 86 0.8 5.0 2 5 Int. MZS0430LB 50.8 50.8 100.8 100 0.8 5.0 2 2 Ext. MZE0440SA 24.8 24.8 58.8 58 0.8 4.4 1 4.4 3 Ext. MZE0440MA 29.8 29.8 63.8 63 0.8 4.4 1 3 Int. MZS0440MB 36.8 36.8 86.8 86 0.8 5.0 2 5 Int. MZS0440LB 50.8 50.8 100.8 100 0.8 5.0 2 2 Ext. MZE0450SA 24.8 24.8 58.8 58 0.8 4.5 1 4.5 3 Ext. MZE0450MA 29.8 29.8 63.8 63 0.8 4.5 1 3 Int. MZS0450MB 36.8 36.8 86.8 86 0.8 5.0 2 5 Int. MZS0450LB 50.8 50.8 100.8 100 0.8 5.0 2 2 Ext. MZE0460SA 24.8 24.8 58.8 58 0.8 4.6 1 4.6 3 Ext. MZE0460MA 32.8 32.8 68.8 68 0.8 4.6 1 3 Int. MZS0460MB 40.8 40.8 90.8 90 0.8 5.0 2 5 Int. MZS0460LB 55.8 55.8 105.8 105 0.8 5.0 2 2 Ext. MZE0470SA 24.9 24.9 58.9 58 0.9 4.7 1 4.7 3 Ext. MZE0470MA 32.9 32.9 68.9 68 0.9 4.7 1 3 Int. MZS0470MB 40.9 40.9 90.9 90 0.9 5.0 2 5 Int. MZS0470LB 55.9 55.9 105.9 105 0.9 5.0 2 2 Ext. MZE0480SA 26.9 26.9 62.9 62 0.9 4.8 1 4.8 3 Ext. MZE0480MA 32.9 32.9 68.9 68 0.9 4.8 1 3 Int. MZS0480MB 40.9 40.9 90.9 90 0.9 5.0 2 5 Int. MZS0480LB 55.9 55.9 105.9 105 0.9 5.0 2 2 Ext. MZE0490SA 26.9 26.9 62.9 62 0.9 4.9 1 4.9 3 Ext. MZE0490MA 32.9 32.9 68.9 68 0.9 4.9 1 3 Int. MZS0490MB 40.9 40.9 90.9 90 0.9 5.0 2 5 Int. MZS0490LB 55.9 55.9 105.9 105 0.9 5.0 2 2 Ext. MZE0500SA 26.9 26.9 62.9 62 0.9 5.0 1 5.0 3 Ext. MZE0500MA 32.9 32.9 68.9 68 0.9 5.0 1 3 Int. MZS0500MB 28.4 30.9 82.9 82 0.9 6.0 2 5 Int. MZS0500LB 44.9 48.9 100.9 100 0.9 6.0 2 2 Ext. MZE0510SA 26.9 26.9 62.9 62 0.9 5.1 1 5.1 3 Ext. MZE0510MA 34.9 34.9 72.9 72 0.9 5.1 1 3 Int. MZS0510MB 28.4 30.9 82.9 82 0.9 6.0 2 5 Int. MZS0510LB 44.9 48.9 100.9 100 0.9 6.0 2 2 Ext. MZE0520SA 26.9 26.9 62.9 62 0.9 5.2 1 5.2 3 Ext. MZE0520MA 34.9 34.9 72.9 72 0.9 5.2 1 3 Int. MZS0520MB 28.4 30.9 82.9 82 0.9 6.0 2 5 Int. MZS0520LB 44.9 48.9 100.9 100 0.9 6.0 2 CUTTING CONDITIONS N115 OPERATION GUIDANCE -N119 TECHNICAL DATA -Q001 N099 DRILLING
