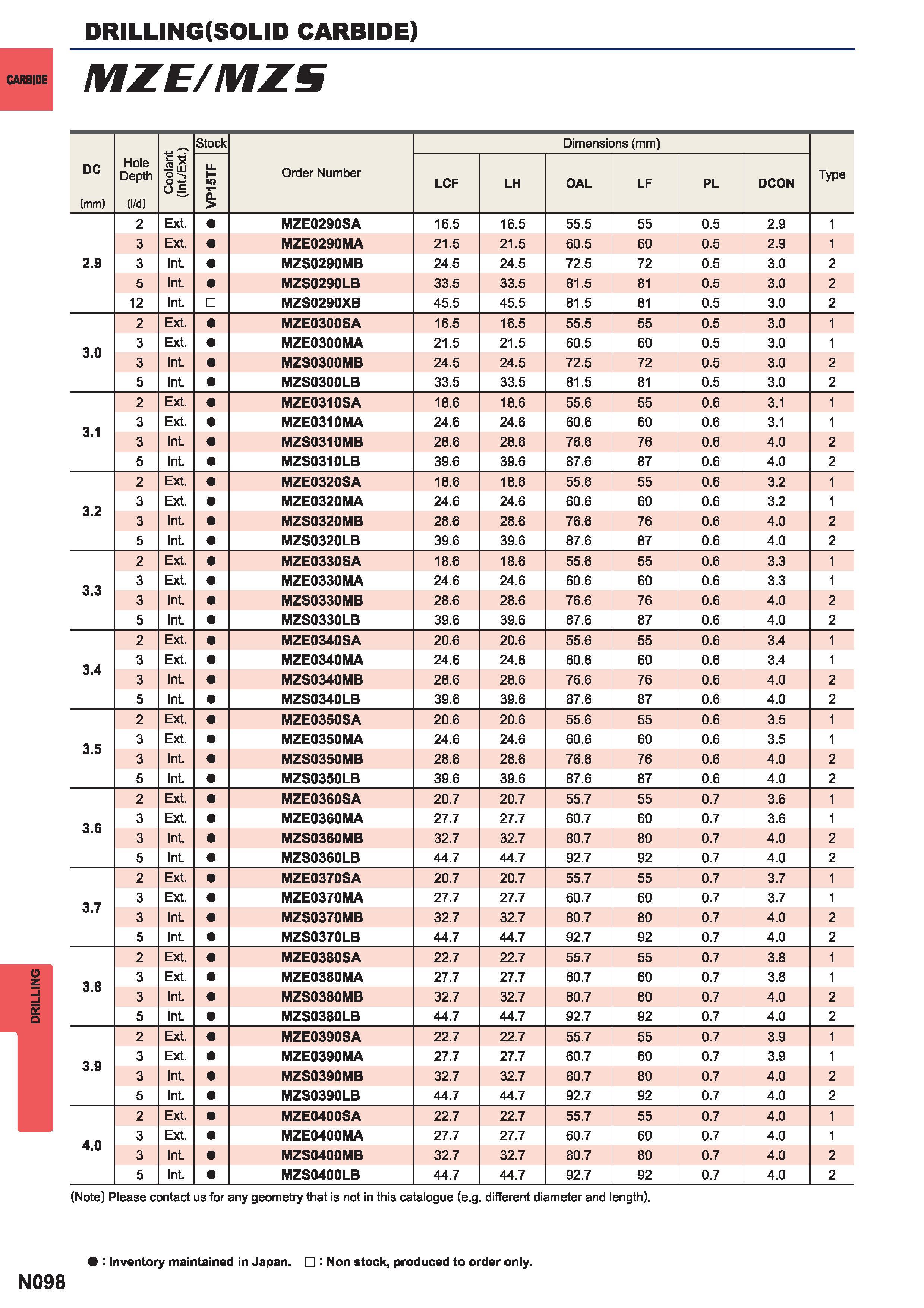

1414 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N098

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N098 1414 ENG Lab2u

DRILLING DRILLING (SOLID CARBIDE) M.IE MIS DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) Type LL H LCF LH OAL LF PL DCON 2 Ext. MZE0290SA 16.5 16.5 55.5 55 0.5 2.9 1 3 Ext. MZE0290MA 21.5 21.5 60.5 60 0.5 2.9 1 2.9 3 Int. MZS0290MB 24.5 24.5 72.5 72 0.5 3.0 2 5 Int. MZS0290LB 33.5 33.5 81.5 81 0.5 3.0 2 12 Int. MZS0290XB 45.5 45.5 81.5 81 0.5 3.0 2 2 Ext. MZE0300SA 16.5 16.5 55.5 55 0.5 3.0 1 3.0 3 Ext. MZE0300MA 21.5 21.5 60.5 60 0.5 3.0 1 3 Int. MZS0300MB 24.5 24.5 72.5 72 0.5 3.0 2 5 Int. MZS0300LB 33.5 33.5 81.5 81 0.5 3.0 2 2 Ext. MZE0310SA 18.6 18.6 55.6 55 0.6 3.1 1 3.1 3 Ext. MZE0310MA 24.6 24.6 60.6 60 0.6 3.1 1 3 Int. MZS0310MB 28.6 28.6 76.6 76 0.6 4.0 2 5 Int. MZS0310LB 39.6 39.6 87.6 87 0.6 4.0 2 2 Ext. MZE0320SA 18.6 18.6 55.6 55 0.6 3.2 1 3.2 3 Ext. MZE0320MA 24.6 24.6 60.6 60 0.6 3.2 1 3 Int. MZS0320MB 28.6 28.6 76.6 76 0.6 4.0 2 5 Int. MZS0320LB 39.6 39.6 87.6 87 0.6 4.0 2 2 Ext. MZE0330SA 18.6 18.6 55.6 55 0.6 3.3 1 3.3 3 Ext. MZE0330MA 24.6 24.6 60.6 60 0.6 3.3 1 3 Int. MZS0330MB 28.6 28.6 76.6 76 0.6 4.0 2 5 Int. MZS0330LB 39.6 39.6 87.6 87 0.6 4.0 2 2 Ext. MZE0340SA 20.6 20.6 55.6 55 0.6 3.4 1 3.4 3 Ext. MZE0340MA 24.6 24.6 60.6 60 0.6 3.4 1 3 Int. MZS0340MB 28.6 28.6 76.6 76 0.6 4.0 2 5 Int. MZS0340LB 39.6 39.6 87.6 87 0.6 4.0 2 2 Ext. MZE0350SA 20.6 20.6 55.6 55 0.6 3.5 1 3.5 3 Ext. MZE0350MA 24.6 24.6 60.6 60 0.6 3.5 1 3 Int. MZS0350MB 28.6 28.6 76.6 76 0.6 4.0 2 5 Int. MZS0350LB 39.6 39.6 87.6 87 0.6 4.0 2 2 Ext. MZE0360SA 20.7 20.7 55.7 55 0.7 3.6 1 3.6 3 Ext. MZE0360MA 27.7 27.7 60.7 60 0.7 3.6 1 3 Int. MZS0360MB 32.7 32.7 80.7 80 0.7 4.0 2 5 Int. MZS0360LB 44.7 44.7 92.7 92 0.7 4.0 2 2 Ext. MZE0370SA 20.7 20.7 55.7 55 0.7 3.7 1 3.7 3 Ext. MZE0370MA 27.7 27.7 60.7 60 0.7 3.7 1 3 Int. MZS0370MB 32.7 32.7 80.7 80 0.7 4.0 2 5 Int. MZS0370LB 44.7 44.7 92.7 92 0.7 4.0 2 2 Ext. MZE0380SA 22.7 22.7 55.7 55 0.7 3.8 1 3.8 3 Ext. MZE0380MA 27.7 27.7 60.7 60 0.7 3.8 1 3 Int. MZS0380MB 32.7 32.7 80.7 80 0.7 4.0 2 5 Int. MZS0380LB 44.7 44.7 92.7 92 0.7 4.0 2 2 Ext. MZE0390SA 22.7 22.7 55.7 55 0.7 3.9 1 3.9 3 Ext. MZE0390MA 27.7 27.7 60.7 60 0.7 3.9 1 3 Int. MZS0390MB 32.7 32.7 80.7 80 0.7 4.0 2 5 Int. MZS0390LB 44.7 44.7 92.7 92 0.7 4.0 2 2 Ext. MZE0400SA 22.7 22.7 55.7 55 0.7 4.0 1 4.0 3 Ext. MZE0400MA 27.7 27.7 60.7 60 0.7 4.0 1 3 Int. MZS0400MB 32.7 32.7 80.7 80 0.7 4.0 2 5 Int. MZS0400LB 44.7 44.7 92.7 92 0.7 4.0 2 (Note) Please contact us for any geometry that is not In this catalogue (e.g. different diameter and length). Inventory maintained in Japan. Non stock produced to order only. N098
