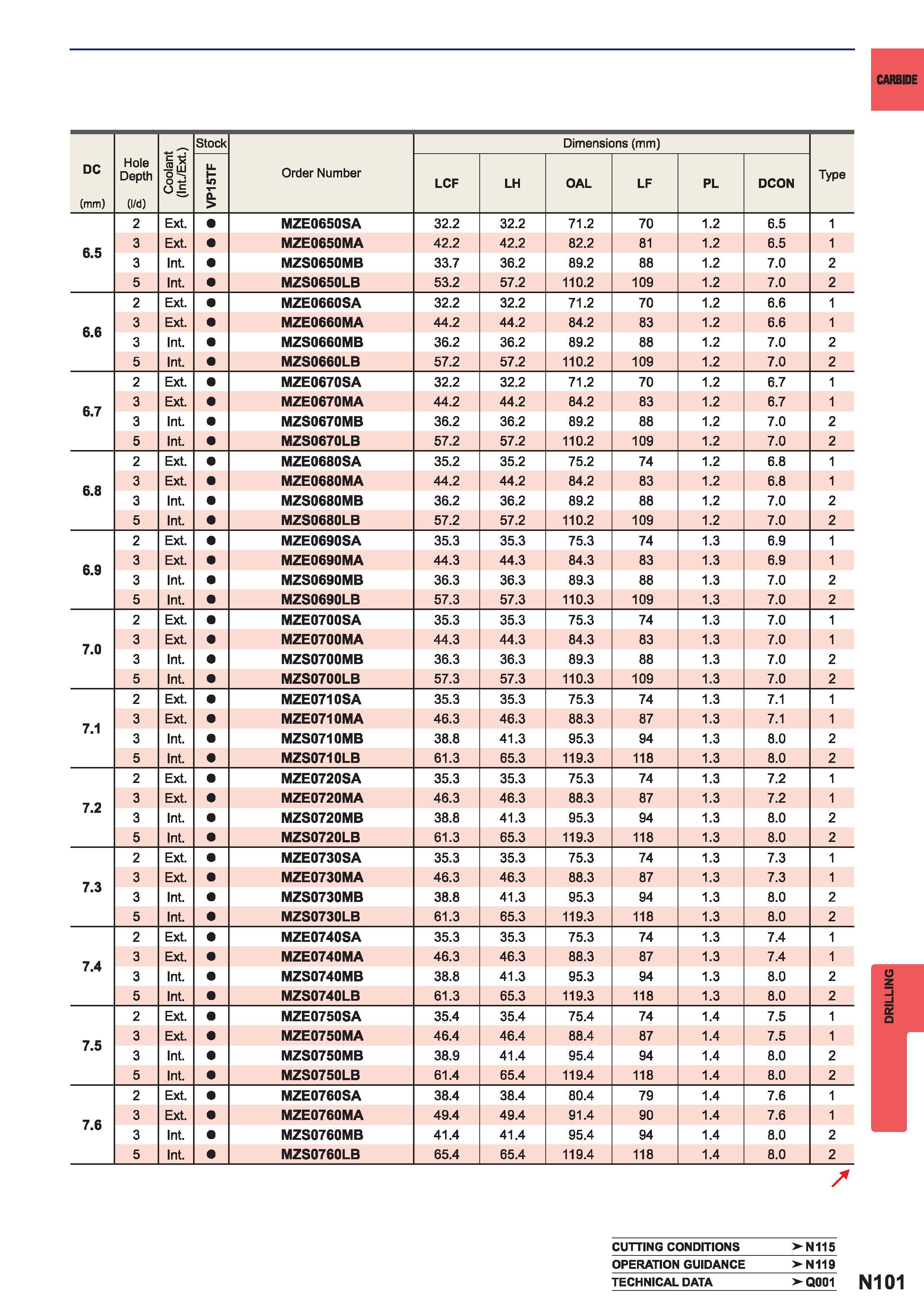

CARBIDE DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) Type LL H LCF LH OAL LF PL DCON 2 Ext. MZE0650SA 32.2 32.2 71.2 70 1.2 6.5 1 6.5 3 Ext. MZE0650MA 42.2 42.2 82.2 81 1.2 6.5 1 3 Int. MZS0650MB 33.7 36.2 89.2 88 1.2 7.0 2 5 Int. MZS0650LB 53.2 57.2 110.2 109 1.2 7.0 2 2 Ext. MZE0660SA 32.2 32.2 71.2 70 1.2 6.6 1 6.6 3 Ext. MZE0660MA 44.2 44.2 84.2 83 1.2 6.6 1 3 Int. MZS0660MB 36.2 36.2 89.2 88 1.2 7.0 2 5 Int. MZS0660LB 57.2 57.2 110.2 109 1.2 7.0 2 2 Ext. MZE0670SA 32.2 32.2 71.2 70 1.2 6.7 1 6.7 3 Ext. MZE0670MA 44.2 44.2 84.2 83 1.2 6.7 1 3 Int. MZS0670MB 36.2 36.2 89.2 88 1.2 7.0 2 5 Int. MZS0670LB 57.2 57.2 110.2 109 1.2 7.0 2 2 Ext. MZE0680SA 35.2 35.2 75.2 74 1.2 6.8 1 6.8 3 Ext. MZE0680MA 44.2 44.2 84.2 83 1.2 6.8 1 3 Int. MZS0680MB 36.2 36.2 89.2 88 1.2 7.0 2 5 Int. MZS0680LB 57.2 57.2 110.2 109 1.2 7.0 2 2 Ext. MZE0690SA 35.3 35.3 75.3 74 1.3 6.9 1 6.9 3 Ext. MZE0690MA 44.3 44.3 84.3 83 1.3 6.9 1 3 Int. MZS0690MB 36.3 36.3 89.3 88 1.3 7.0 2 5 Int. MZS0690LB 57.3 57.3 110.3 109 1.3 7.0 2 2 Ext. MZE0700SA 35.3 35.3 75.3 74 1.3 7.0 1 7.0 3 Ext. MZE0700MA 44.3 44.3 84.3 83 1.3 7.0 1 3 Int. MZS0700MB 36.3 36.3 89.3 88 1.3 7.0 2 5 Int. MZS0700LB 57.3 57.3 110.3 109 1.3 7.0 2 2 Ext. MZE0710SA 35.3 35.3 75.3 74 1.3 7.1 1 7.1 3 Ext. MZE0710MA 46.3 46.3 88.3 87 1.3 7.1 1 3 Int. MZS0710MB 38.8 41.3 95.3 94 1.3 8.0 2 5 Int. MZS0710LB 61.3 65.3 119.3 118 1.3 8.0 2 2 Ext. MZE0720SA 35.3 35.3 75.3 74 1.3 7.2 1 7.2 3 Ext. MZE0720MA 46.3 46.3 88.3 87 1.3 7.2 1 3 Int. MZS0720MB 38.8 41.3 95.3 94 1.3 8.0 2 5 Int. MZS0720LB 61.3 65.3 119.3 118 1.3 8.0 2 2 Ext. MZE0730SA 35.3 35.3 75.3 74 1.3 7.3 1 7.3 3 Ext. MZE0730MA 46.3 46.3 88.3 87 1.3 7.3 1 3 Int. MZS0730MB 38.8 41.3 95.3 94 1.3 8.0 2 5 Int. MZS0730LB 61.3 65.3 119.3 118 1.3 8.0 2 2 Ext. MZE0740SA 35.3 35.3 75.3 74 1.3 7.4 1 7.4 3 Ext. MZE0740MA 46.3 46.3 88.3 87 1.3 7.4 1 3 Int. MZS0740MB 38.8 41.3 95.3 94 1.3 8.0 2 5 Int. MZS0740LB 61.3 65.3 119.3 118 1.3 8.0 2 2 Ext. MZE0750SA 35.4 35.4 75.4 74 1.4 7.5 1 7.5 3 Ext. MZE0750MA 46.4 46.4 88.4 87 1.4 7.5 1 3 Int. MZS0750MB 38.9 41.4 95.4 94 1.4 8.0 2 5 Int. MZS0750LB 61.4 65.4 119.4 118 1.4 8.0 2 2 Ext. MZE0760SA 38.4 38.4 80.4 79 1.4 7.6 1 7.6 3 Ext. MZE0760MA 49.4 49.4 91.4 90 1.4 7.6 1 3 Int. MZS0760MB 41.4 41.4 95.4 94 1.4 8.0 2 5 Int. MZS0760LB 65.4 65.4 119.4 118 1.4 8.0 2 CUTTING CONDITIONS N115 OPERATION GUIDANCE -N119 TECHNICAL DATA -Q001 N101 DRILLING
