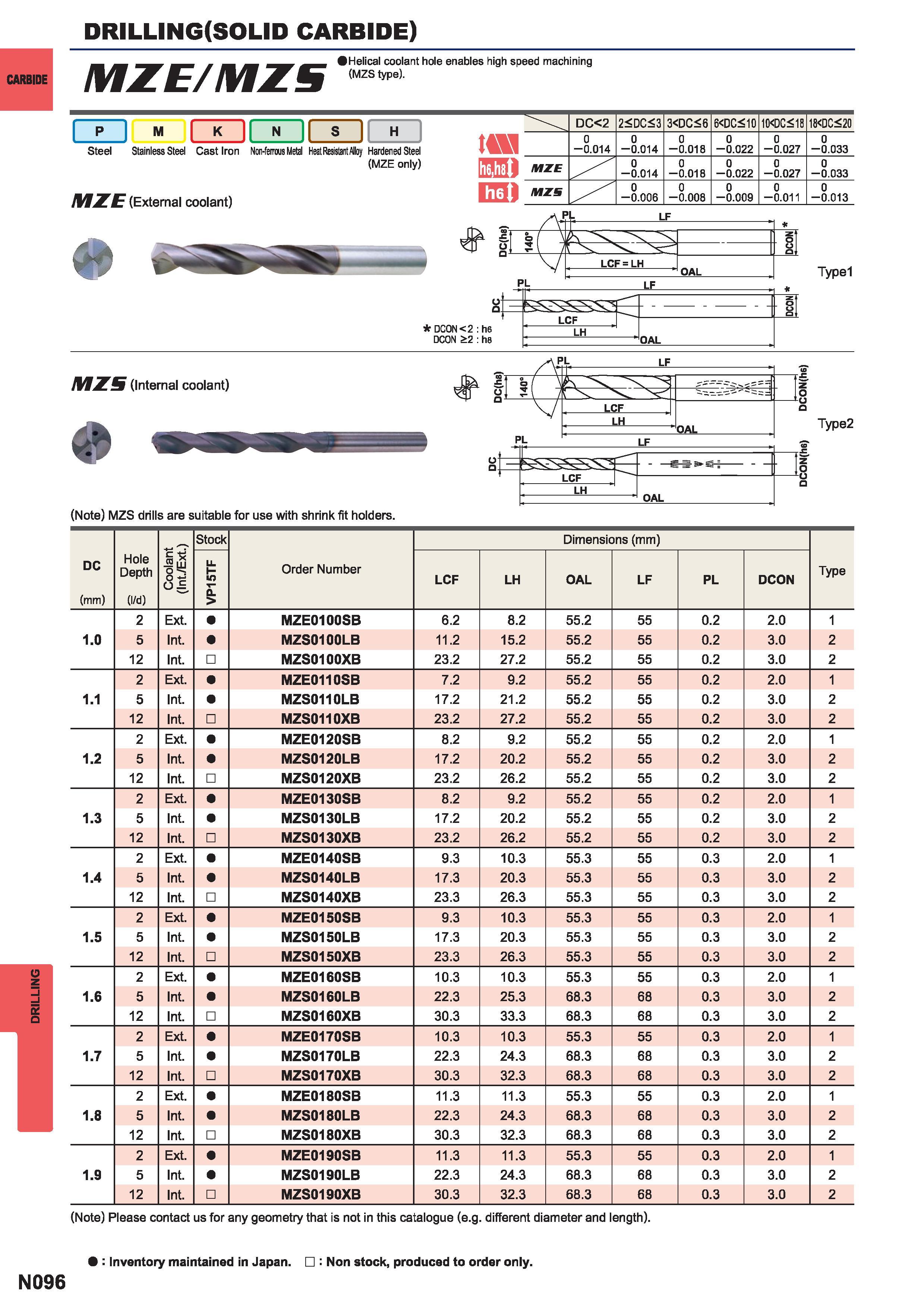

DRILLING DRILLING (SOLID CARBIDE) CARBIDE Helical coolant hole enables high speed machining MZE MZS DC2 2DC3 3DC6 6DC10 10DC18 18DC20 0 -0.014 0 -0.014 0 -0.018 0 -0.022 0 -0.027 0 -0.033 MZE 0 -0.014 0 -0.018 0 -0.022 0 -0.027 0 -0.033 MZS 0 -0.006 0 -0.008 0 -0.009 0 -0.011 0 -0.013 M K N C Steel Stainless Steel Cast Iron Non-ferrous Metal Hardened Steel (MZE only) MZE (External coolant) till GSSJ eh DCON2 h6 DCON 2 he Typel MZ5 (Internal coolant) (Note) MZS drills are suitable for use with shrink fit holders. Type2 DC (mm) Hole Depth (l d) Coolant (lnt. Ext.) Stock Order Number Dimensions (mm) Type LL H LCF LH OAL LF PL DCON 2 Ext. MZE0100SB 6.2 8.2 55.2 55 0.2 2.0 1 1.0 5 Int. MZS0100LB 11.2 15.2 55.2 55 0.2 3.0 2 12 Int. MZS0100XB 23.2 27.2 55.2 55 0.2 3.0 2 2 Ext. MZE0110SB 7.2 9.2 55.2 55 0.2 2.0 1 1.1 5 Int. MZS0110LB 17.2 21.2 55.2 55 0.2 3.0 2 12 Int. MZS0110XB 23.2 27.2 55.2 55 0.2 3.0 2 2 Ext. MZE0120SB 8.2 9.2 55.2 55 0.2 2.0 1 1.2 5 Int. MZS0120LB 17.2 20.2 55.2 55 0.2 3.0 2 12 Int. MZS0120XB 23.2 26.2 55.2 55 0.2 3.0 2 2 Ext. MZE0130SB 8.2 9.2 55.2 55 0.2 2.0 1 1.3 5 Int. MZS0130LB 17.2 20.2 55.2 55 0.2 3.0 2 12 Int. MZS0130XB 23.2 26.2 55.2 55 0.2 3.0 2 2 Ext. MZE0140SB 9.3 10.3 55.3 55 0.3 2.0 1 1.4 5 Int. MZS0140LB 17.3 20.3 55.3 55 0.3 3.0 2 12 Int. MZS0140XB 23.3 26.3 55.3 55 0.3 3.0 2 2 Ext. MZE0150SB 9.3 10.3 55.3 55 0.3 2.0 1 1.5 5 Int. MZS0150LB 17.3 20.3 55.3 55 0.3 3.0 2 12 Int. MZS0150XB 23.3 26.3 55.3 55 0.3 3.0 2 2 Ext. MZE0160SB 10.3 10.3 55.3 55 0.3 2.0 1 1.6 5 Int. MZS0160LB 22.3 25.3 68.3 68 0.3 3.0 2 12 Int. MZS0160XB 30.3 33.3 68.3 68 0.3 3.0 2 2 Ext. MZE0170SB 10.3 10.3 55.3 55 0.3 2.0 1 1.7 5 Int. MZS0170LB 22.3 24.3 68.3 68 0.3 3.0 2 12 Int. MZS0170XB 30.3 32.3 68.3 68 0.3 3.0 2 2 Ext. MZE0180SB 11.3 11.3 55.3 55 0.3 2.0 1 1.8 5 Int. MZS0180LB 22.3 24.3 68.3 68 0.3 3.0 2 12 Int. MZS0180XB 30.3 32.3 68.3 68 0.3 3.0 2 2 Ext. MZE0190SB 11.3 11.3 55.3 55 0.3 2.0 1 1.9 5 Int. MZS0190LB 22.3 24.3 68.3 68 0.3 3.0 2 12 Int. MZS0190XB 30.3 32.3 68.3 68 0.3 3.0 2 (Note) Please contact us for any geometry that is not in this catalogue (e.g. different diameter and length). Inventory maintained in Japan. Non stock produced to order only. N096
