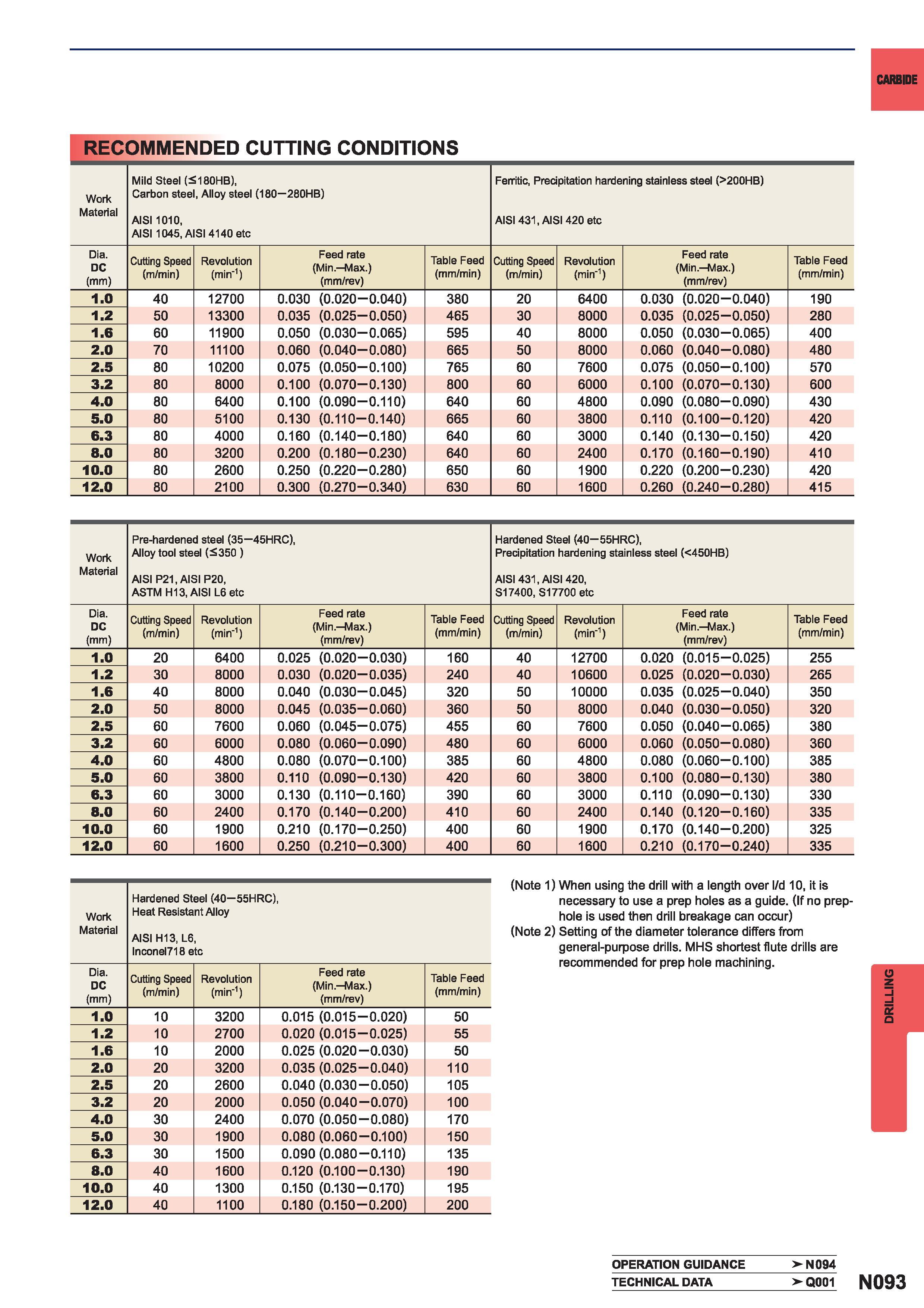

CARBIDE RECOMMENDED CUTTING CONDITIONS Work Material Mild Steel (S180HB) Carbon steel Alloy steel (180 280HB) AISI 1010 AISI 1045 AISI 4140 etc Ferritic Precipitation hardening stainless steel (200HB) AISI 431 AISI 420 etc Dia. DC (mm) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) 1.0 40 12700 0.030 (0.020-0.040) 380 20 6400 0.030 (0.020-0.040) 190 1.2 50 13300 0.035 (0.025-0.050) 465 30 8000 0.035 (0.025-0.050) 280 1.6 60 11900 0.050 (0.030-0.065) 595 40 8000 0.050 (0.030-0.065) 400 2.0 70 11100 0.060 (0.040-0.080) 665 50 8000 0.060 (0.040-0.080) 480 2.5 80 10200 0.075 (0.050-0.100) 765 60 7600 0.075 (0.050-0.100) 570 3.2 80 8000 0.100 (0.070-0.130) 800 60 6000 0.100 (0.070-0.130) 600 4.0 80 6400 0.100 (0.090-0.110) 640 60 4800 0.090 (0.080-0.090) 430 5.0 80 5100 0.130 (0.110-0.140) 665 60 3800 0.110 (0.100-0.120) 420 6.3 80 4000 0.160 (0.140-0.180) 640 60 3000 0.140 (0.130-0.150) 420 8.0 80 3200 0.200 (0.180-0.230) 640 60 2400 0.170 (0.160-0.190) 410 10.0 80 2600 0.250 (0.220-0.280) 650 60 1900 0.220 (0.200-0.230) 420 12.0 80 2100 0.300 (0.270-0.340) 630 60 1600 0.260 (0.240-0.280) 415 Work Material Pre-hardened steel (35 45HRC) Alloy tool steel (5350 ) AISI P21 AISI P20 ASTM H13 AISI L6etc Hardened Steel (40-55HRC) Precipitation hardening stainless steel (450HB) AISI 431 AISI 420 S17400 S17700 etc Dia. DC (mm) Cutting Speed (m/min) Revolution (min'1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) Cutting Speed (m/min) Revolution (min'1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) 1.0 20 6400 0.025 (0.020-0.030) 160 40 12700 0.020 (0.015-0.025) 255 1.2 30 8000 0.030 (0.020-0.035) 240 40 10600 0.025 (0.020-0.030) 265 1.6 40 8000 0.040 (0.030-0.045) 320 50 10000 0.035 (0.025-0.040) 350 2.0 50 8000 0.045 (0.035-0.060) 360 50 8000 0.040 (0.030-0.050) 320 2.5 60 7600 0.060 (0.045-0.075) 455 60 7600 0.050 (0.040-0.065) 380 3.2 60 6000 0.080 (0.060-0.090) 480 60 6000 0.060 (0.050-0.080) 360 4.0 60 4800 0.080 (0.070-0.100) 385 60 4800 0.080 (0.060-0.100) 385 5.0 60 3800 0.110 (0.090-0.130) 420 60 3800 0.100 (0.080-0.130) 380 6.3 60 3000 0.130 (0.110-0.160) 390 60 3000 0.110 (0.090-0.130) 330 8.0 60 2400 0.170 (0.140-0.200) 410 60 2400 0.140 (0.120-0.160) 335 10.0 60 1900 0.210 (0.170-0.250) 400 60 1900 0.170 (0.140-0.200) 325 12.0 60 1600 0.250 (0.210-0.300) 400 60 1600 0.210 (0.170-0.240) 335 Work Material Hardened Steel (40 55HRC) Heat Resistant Alloy AISI H13 L6 lnconel718 etc Dia. DC (mm) Cutting Speed (m/min) Revolution (min'1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) 1.0 10 3200 0.015 (0.015-0.020) 50 1.2 10 2700 0.020 (0.015-0.025) 55 1.6 10 2000 0.025 (0.020-0.030) 50 2.0 20 3200 0.035 (0.025-0.040) 110 2.5 20 2600 0.040(0.030-0.050) 105 3.2 20 2000 0.050(0.040-0.070) 100 4.0 30 2400 0.070 (0.050-0.080) 170 5.0 30 1900 0.080(0.060-0.100) 150 6.3 30 1500 0.090(0.080-0.110) 135 8.0 40 1600 0.120 (0.100-0.130) 190 10.0 40 1300 0.150 (0.130-0.170) 195 12.0 40 1100 0.180 (0.150-0.200) 200 (Note 1) When using the drill with a length over d 10 it is necessary to use a prep holes as a guide. (If no prep-hole is used then drill breakage can occur) (Note 2) Setting of the diameter tolerance differs from general-purpose drills. MHS shortest flute drills are recommended for prep hole machining. OPERATION GUIDANCE N094 TECHNICAL DATA Q001 N093 DRILLING
