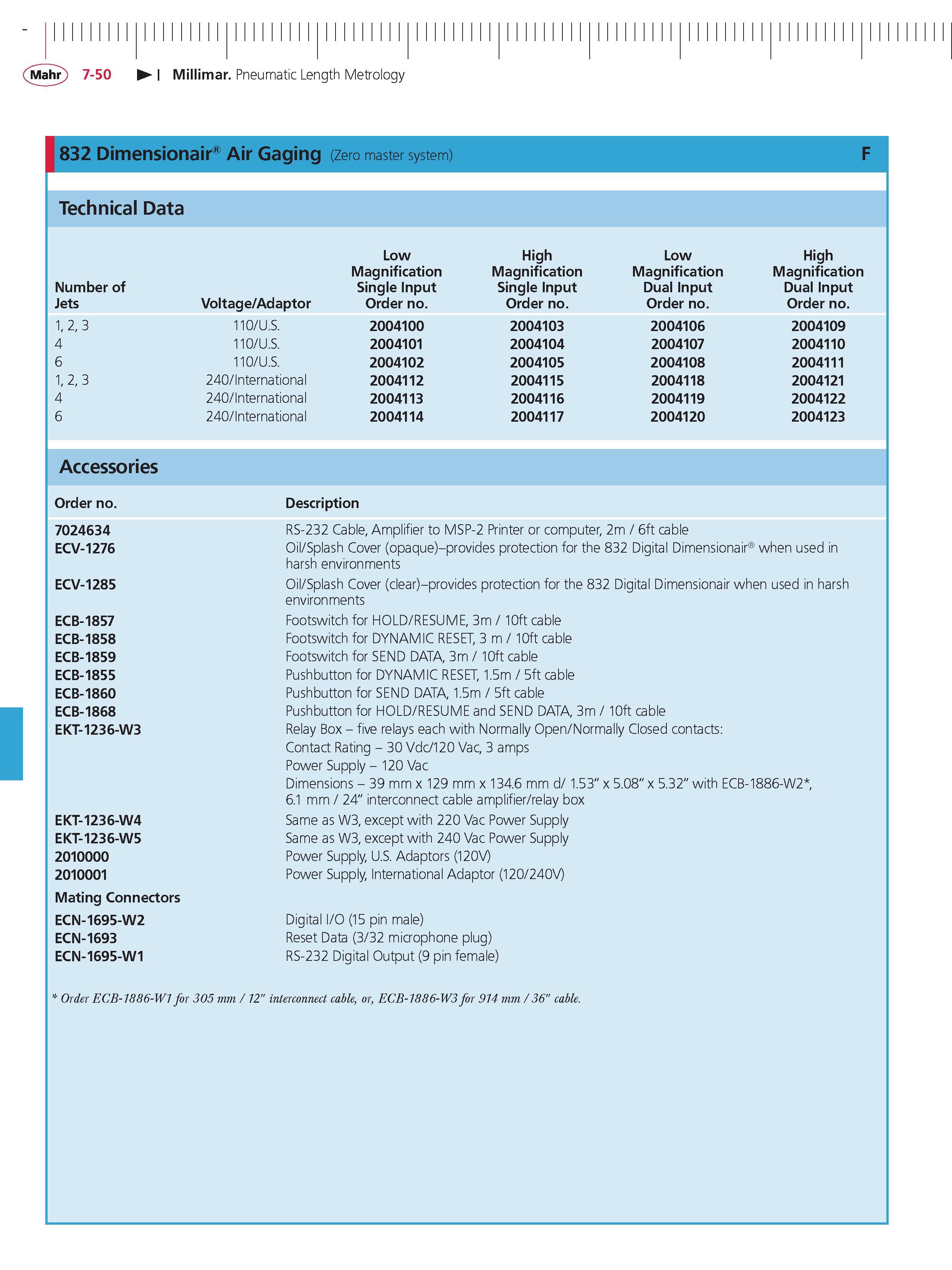

Mahr 7-50 Millimar Pneumatic Length Metrology 832 Dimensionair Air Gaging (Zero master system) technical data Number of Jets 1 2 3 4 6 1 2 3 4 6 voltage Adaptor 110 U.S. 110 U.S. 110 U.S. 240 International 240 International 240 International Low Magnification Single input order no. 2004100 2004101 2004102 2004112 2004113 2004114 High Magnification Single input order no. 2004103 2004104 2004105 2004115 2004116 2004117 Low Magnification dual input order no. 2004106 2004107 2004108 2004118 2004119 2004120 High Magnification dual input order no. 2004109 2004110 2004111 2004121 2004122 2004123 Accessories order no. 7024634 ECv-1276 ECv-1285 ECB-1857 ECB-1858 ECB-1859 ECB-1855 ECB-1860 ECB-1868 EKT-1236-w3 EKT-1236-w4 EKT-1236-w5 2010000 2010001 Mating Connectors ECN-1695-w2 ECN-1693 ECN-1695-w1 description RS-232 Cable Amplifier to MSP-2 Printer or computer 2m 6ft cable Oil Splash Cover (opaque)-provides protection for the 832 Digital Dimensionair when used in harsh environments Oil Splash Cover (clear)-provides protection for the 832 Digital Dimensionair when used in harsh environments Footswitch for HOLD RESUME 3m 10ft cable Footswitch for DYNAMIC RESET 3 m 10ft cable Footswitch for SEND DATA 3 m 10ft cable Pushbutton for DYNAMIC RESET 1.5m 5ft cable Pushbutton for SEND DATA 1.5m 5ft cable Pushbutton for HOLD RESUME and SEND DATA 3m 10ft cable Relay Box - five relays each with Normally Open Normally Closed contacts Contact Rating - 30 Vdc 120 Vac 3 amps Power Supply - 120 Vac Dimensions - 39 mm x 129 mm x 134.6 mm d 1.53" x 5.08" x 5.32" with ECB-1886-W2 6.1 mm 24" interconnect cable amplifier relay box Same as W3 except with 220 Vac Power Supply Same as W3 except with 240 Vac Power Supply Power Supply U.S. Adaptors (120V) Power Supply International Adaptor (120 240V) Digital O (15 pin male) Reset Data (3 32 microphone plug) RS-232 Digital Output (9 pin female) Order ECB-1886-W1 for 305 mm 12" interconnect cable or ECB-1886-W3 for 914 mm 36" cable. F
