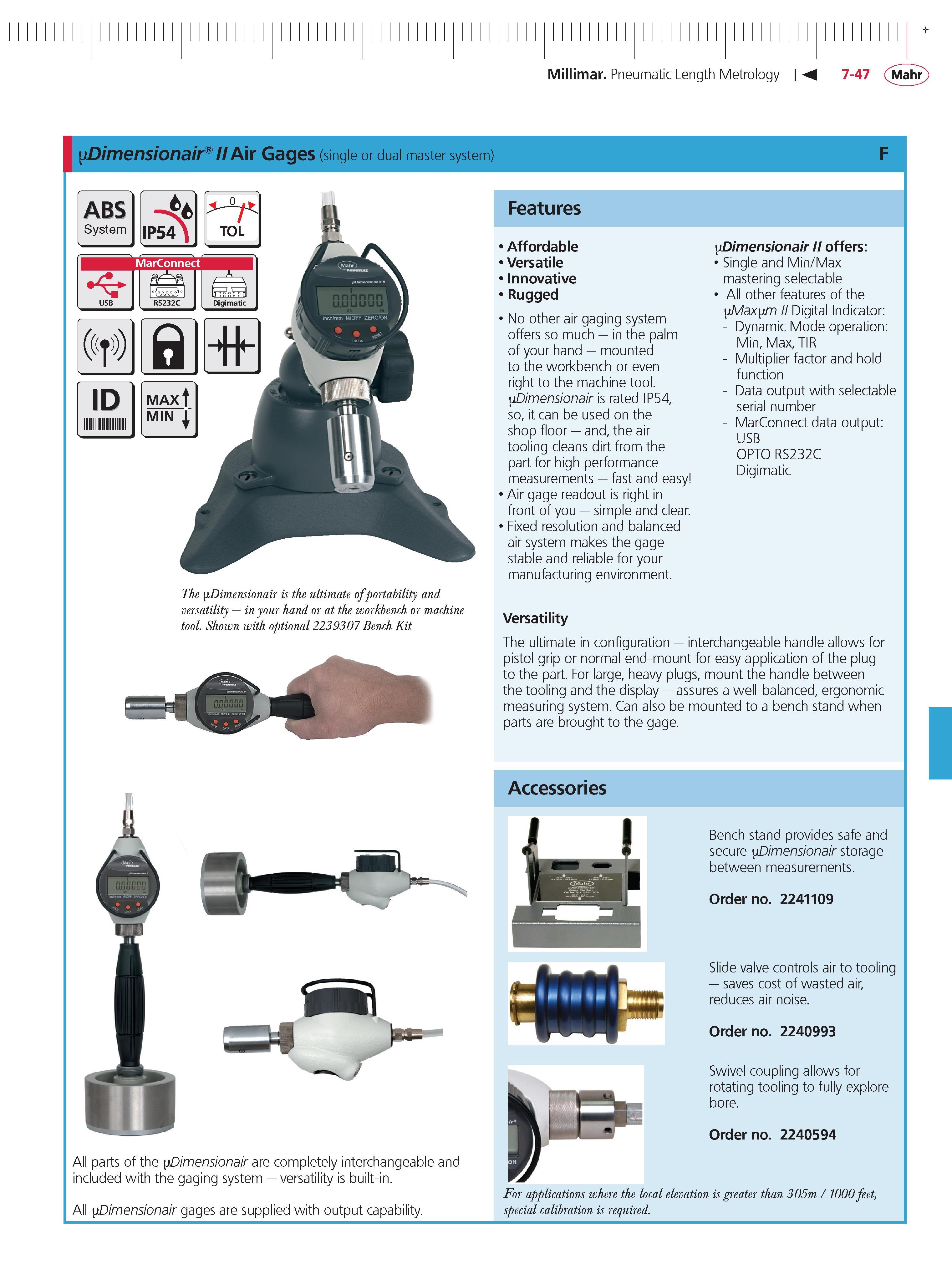

Millimar Pneumatic Length Metrology 7-47 Mahr yDimensionair IIAir Gages (single or dual master system) Features yDimensionair II offers Single and Min Max mastering selectable All other features of the Maxym II Digital Indicator - Dynamic Mode operation Min Max TIR - Multiplier factor and hold function - Data output with selectable serial number - MarConnect data output USB OPTO RS232C Digimatic The yDimensionair is the ultimate of portability and versatility in your hand or at the workbench or machine tool. Shown with optional 2239307 Bench Kit Affordable Versatile Innovative Rugged No other air gaging system offers so much in the palm of your hand mounted to the workbench or even right to the machine tool. yDimensionair is rated IP54 so it can be used on the shop floor and the air tooling cleans dirt from the part for high performance measurements fast and easy Air gage readout is right in front of you simple and clear. Fixed resolution and balanced air system makes the gage stable and reliable for your manufacturing environment. Versatility The ultimate in configuration interchangeable handle allows for pistol grip or normal end-mount for easy application of the plug to the part. For large heavy plugs mount the handle between the tooling and the display assures a well-balanced ergonomic measuring system. Can also be mounted to a bench stand when parts are brought to the gage. Accessories All parts of the yDimensionair are completely interchangeable and included with the gaging system versatility is built-in. All jDimensionair gages are supplied with output capability. + F
