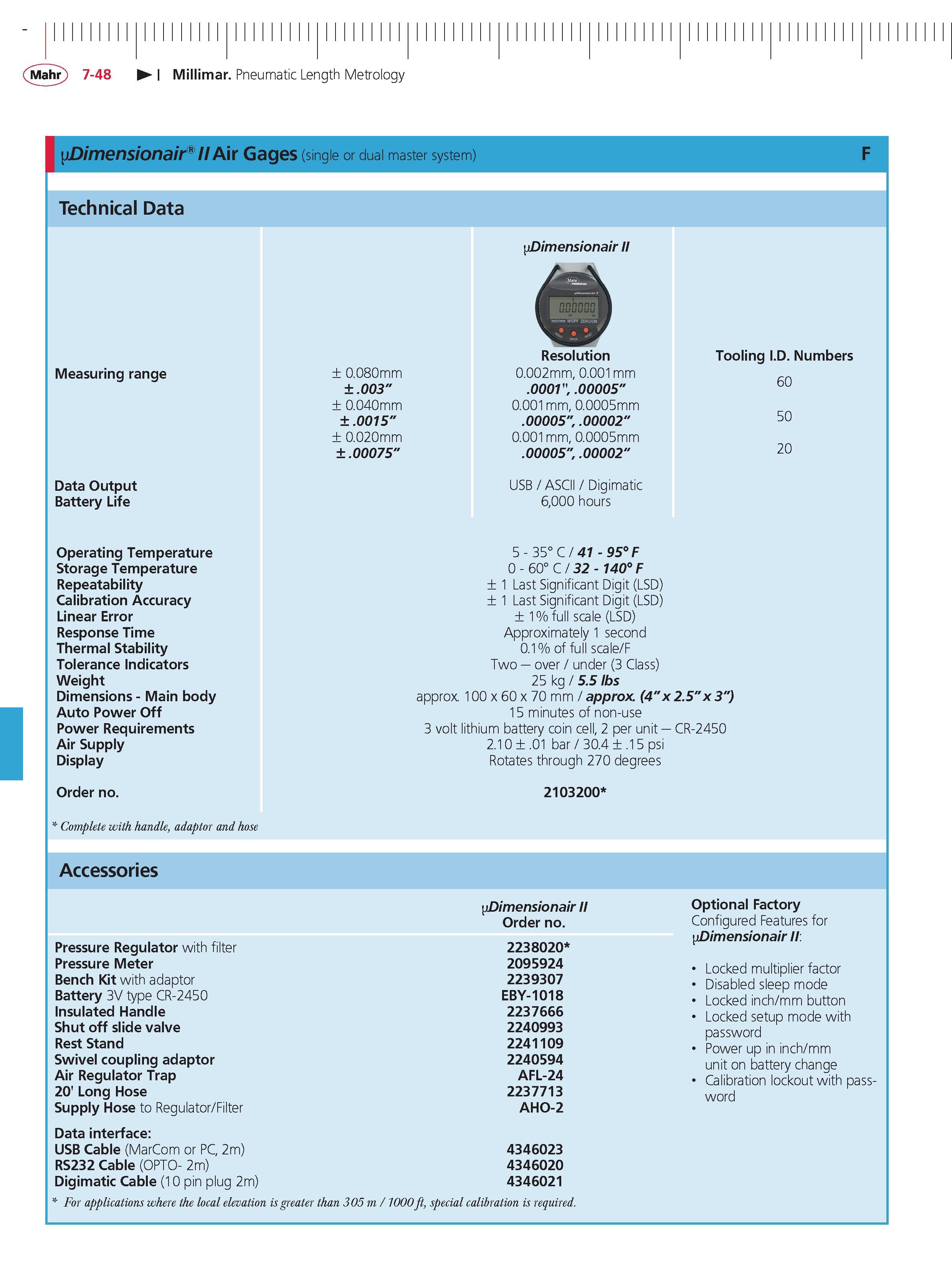

Mahr 7-48 Millimar Pneumatic Length Metrology Dimensionair II Air Gages (single or dual master system) technical Data jDimensionair II Measuring range 0.080mm .003" 0.040mm .0015" 0.020mm .00075" data output Battery Life operating Temperature Storage temperature Repeatability Calibration Accuracy linear Error Response time thermal Stability tolerance indicators weight dimensions - Main body Auto Power off Power Requirements Air Supply display order no. Complete with handle adaptor and hose Resolution 0.002mm 0.001mm .0001" .00005" 0.001mm 0.0005mm .00005" .00002" 0.001mm 0.0005mm .00005" .00002" USB ASCII Digimatic 6000 hours 5 - 35 C 41 - 95 F 0 - 60 C 32 -140 F 1 Last Significant Digit (LSD) 1 Last Significant Digit (LSD) 1% full scale (LSD) Approximately 1 second 0.1% of full scale F Two over under (3 Class) 25 kg 5.5 lbs approx. 100 x 60 x 70 mm approx. (4"x2.5"x3") 15 minutes of non-use 3 volt lithium battery coin cell 2 per unit CR-2450 2.10 .01 bar 30.4 .15 psi Rotates through 270 degrees 2103200 tooling I.D. Numbers 60 50 20 Accessories Pressure Regulator with filter Pressure Meter Bench Kit with adaptor battery 3V type CR-2450 Insulated Handle Shut off slide valve Rest Stand Swivel coupling adaptor Air Regulator trap 20' Long Hose Supply hose to Regulator Filter data interface usb Cable (MarCom or PC 2m) 4346023 RS232 Cable (OPTO- 2m) 4346020 digimatic Cable (10 pin plug 2m) 4346021 For applications where the local elevation is greater than 305 m 1000ft special calibration is required. jDimensionair II order no. 2238020 2095924 2239307 EBY-1018 2237666 2240993 2241109 2240594 AFL-24 2237713 AHo-2 optional Factory Configured Features for jDimensionair II Locked multiplier factor Disabled sleep mode Locked inch mm button Locked setup mode with password Power up in inch mm unit on battery change Calibration lockout with password F
