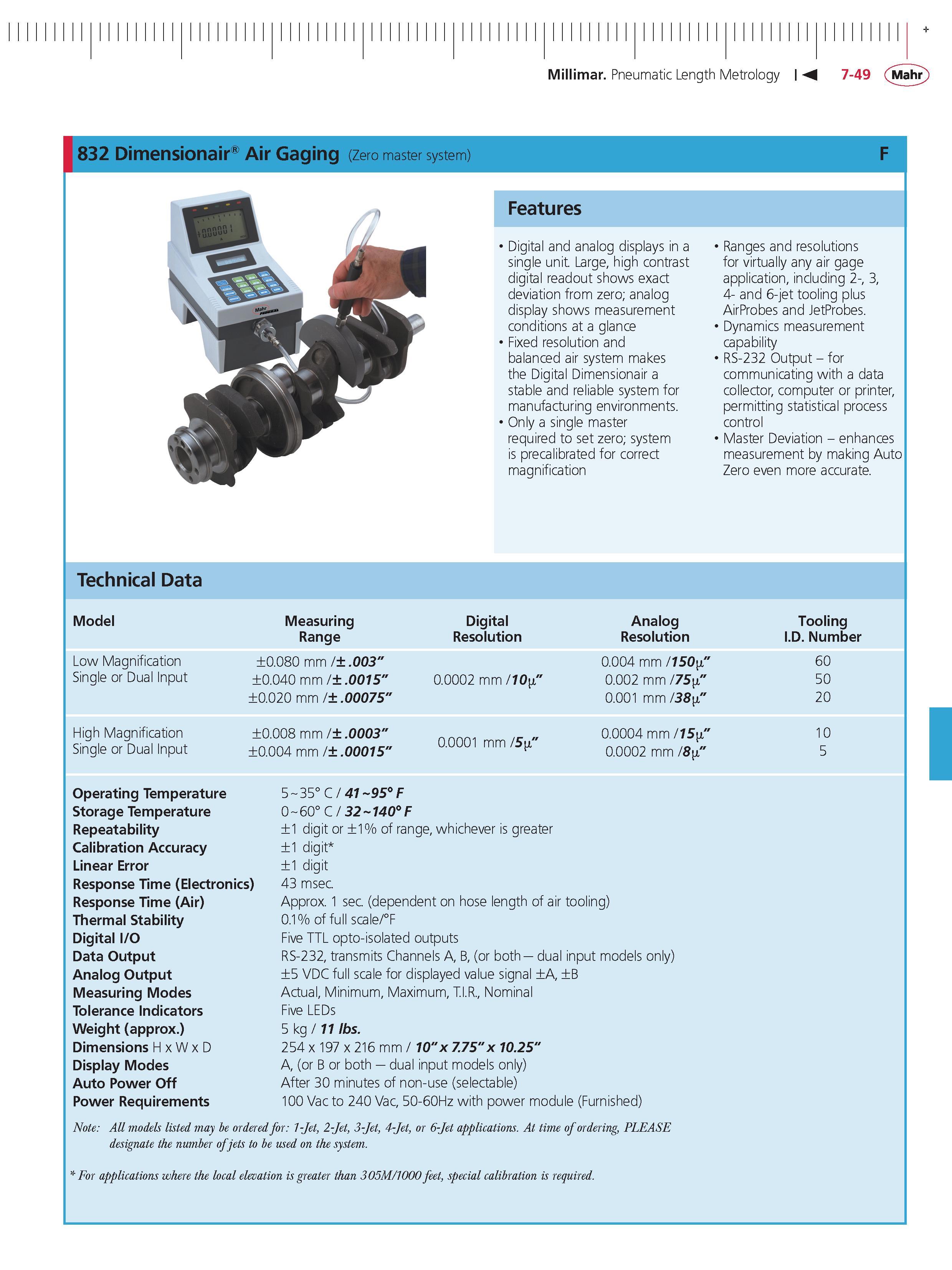

Millimar Pneumatic Length Metrology M 7-49 Mahr 832 Dimensionair Air Gaging (Zero master system) Features Digital and analog displays in a single unit. Large high contrast digital readout shows exact deviation from zero; analog display shows measurement conditions at a glance Fixed resolution and balanced air system makes the Digital Dimensionair a stable and reliable system for manufacturing environments. Only a single master required to set zero; system is precalibrated for correct magnification Ranges and resolutions for virtually any air gage application including 2- 3 4- and 6-jet tooling plus AirProbes and JetProbes. Dynamics measurement capability RS-232 Output - for communicating with a data collector computer or printer permitting statistical process control Master Deviation - enhances measurement by making Auto Zero even more accurate. Technical data Model Low Magnification Single or Dual Input High Magnification Single or Dual Input Measuring Range 0.080 mm .003" 0.040 mm .0015" 0.020 mm .00075" 0.008 mm .0003" 0.004 mm .00015" digital Resolution 0.0002 mm 10p" 0.0001 mm 5p" Analog Resolution 0.004 mm 150p" 0.002 mm 75y"' 0.001 mm 38y"' 0.0004 mm 15p" 0.0002 mm 8p" tooling I.D. Number 60 50 20 10 5 operating temperature Storage temperature Repeatability Calibration Accuracy Linear Error response time (electronics) response time (Air) thermal Stability digital o data output Analog output Measuring Modes tolerance Indicators weight (approx.) dimensions H x W x D display Modes Auto Power off Power requirements 5 35 C 41 95F 0 60 C 32 140 F 1 digit or 1% of range whichever is greater 1 digit 1 digit 43 msec. Approx. 1 sec. (dependent on hose length of air tooling) 0.1% of full scale F Five TTL opto-isolated outputs RS-232 transmits Channels A B (or both dual input models only) 5 VDC full scale for displayed value signal A B Actual Minimum Maximum T.I.R. Nominal Five LEDs 5 kg 11 lbs. 254 x 197 x 216 mm 10" x 7.75" x 10.25" A (or B or both dual input models only) After 30 minutes of non-use (selectable) 100 Vac to 240 Vac 50-60Hz with power module (Furnished) Note All models listed may be ordered for 1-Jet 2-Jet 3-Jet 4-Jet or 6-Jet applications. At time of ordering PLEASE designate the number of jets to be used on the system. For applications where the local elevation is greater than 305M 1000feet special calibration is required. + F
