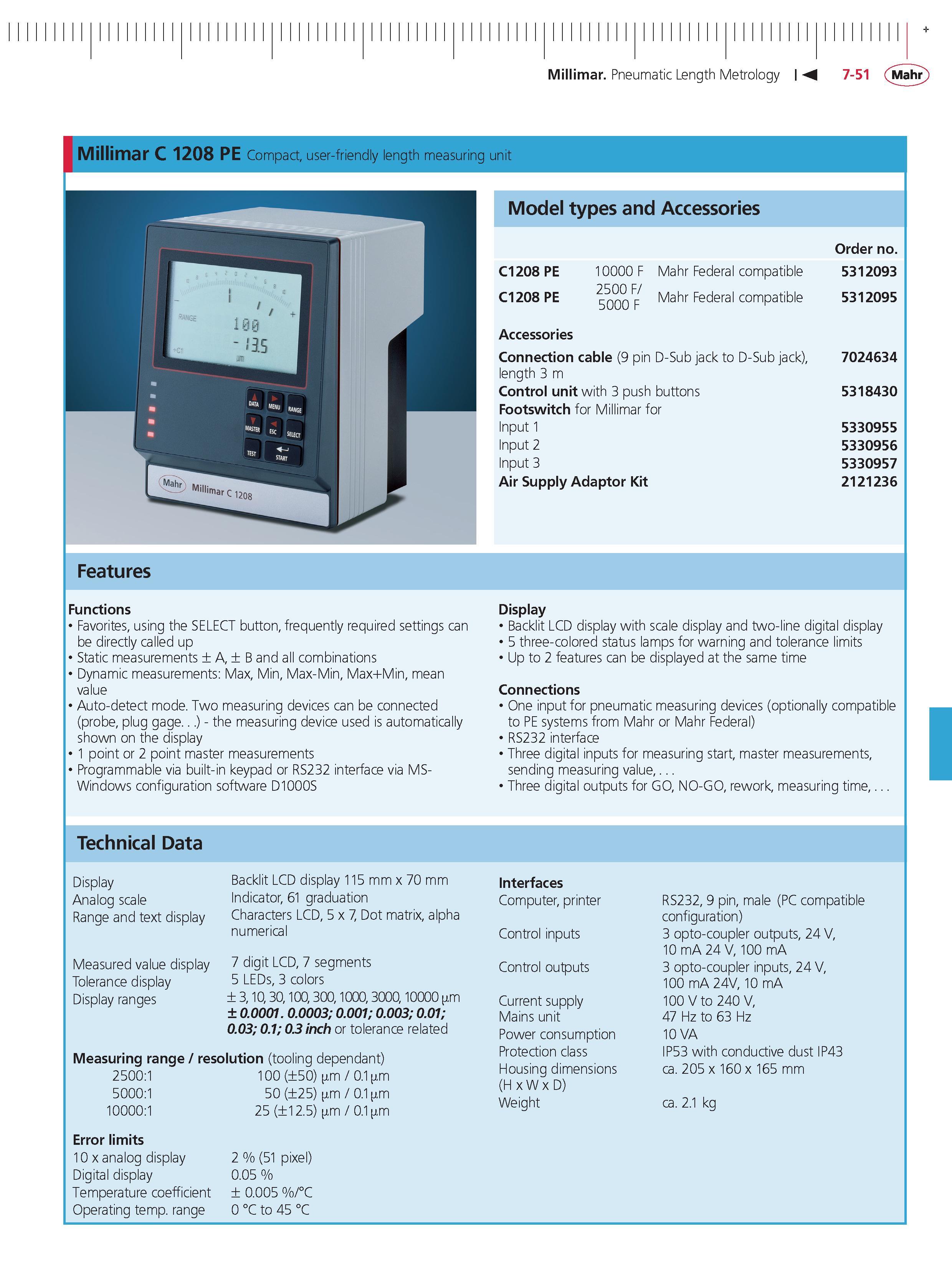

Millimar Pneumatic Length Metrology M 7-51 Mahr Millimar C 1208 PE Compact user-friendly length measuring unit Features Functions Favorites using the SELECT button frequently required settings can be directly called up Static measurements A B and all combinations Dynamic measurements Max Min Max-Min Max+Min mean value Auto-detect mode. Two measuring devices can be connected (probe plug gage. . .) - the measuring device used is automatically shown on the display 1 point or 2 point master measurements Programmable via built-in keypad or RS232 interface via MS-Windows configuration software D1000S Technical Data Display Analog scale Range and text display Measured value display Tolerance display Display ranges Backlit LCD display 115 mm x 70 mm Indicator 61 graduation Characters LCD 5 x 7 Dot matrix alpha numerical 7 digit LCD 7 segments 5 LEDs 3 colors 310 30 100 300 1000 3000 10000 m 0.0001.0.0003; 0.001; 0.003; 0.01; 0.03; 0.1; 0.3 inch or tolerance related Measuring range resolution (tooling dependant) 2500:1 100 (50) m 0.1 m 5000:1 50 (25) m 0.1 m 10000:1 25 (12.5) m 0.1 m error limits 10 x analog display Digital display Temperature coefficient Operating temp. range 2 % (51 pixel) 0.05 % 0.005 % C 0 C to 45 C Model types and Accessories 10000 F Mahr Federal compatible 5000 F Mahr Federal compatible C1208 PE C1208 PE Accessories Connection cable (9 pin D-Sub jack to D-Sub jack) length 3 m Control unit with 3 push buttons Footswitch for Millimar for Input 1 Input 2 Input 3 Air Supply Adaptor Kit order no. 5312093 5312095 7024634 5318430 5330955 5330956 5330957 2121236 display Backlit LCD display with scale display and two-line digital display 5 three-colored status lamps for warning and tolerance limits Up to 2 features can be displayed at the same time Connections One input for pneumatic measuring devices (optionally compatible to PE systems from Mahr or Mahr Federal) RS232 interface Three digital inputs for measuring start master measurements sending measuring value . Three digital outputs for GO NO-GO rework measuring time . interfaces Computer printer Control inputs Control outputs Current supply Mains unit Power consumption Protection class Housing dimensions (H x W x D) Weight RS232 9 pin male (PC compatible configuration) 3 opto-coupler outputs 24 V 10 mA 24 V 100 mA 3 opto-coupler inputs 24 V 100 mA 24V 10 mA 100 V to 240 V 47 Hz to 63 Hz 10 VA IP53 with conductive dust IP43 ca. 205 x 160 x 165 mm ca. 2.1 kg +
