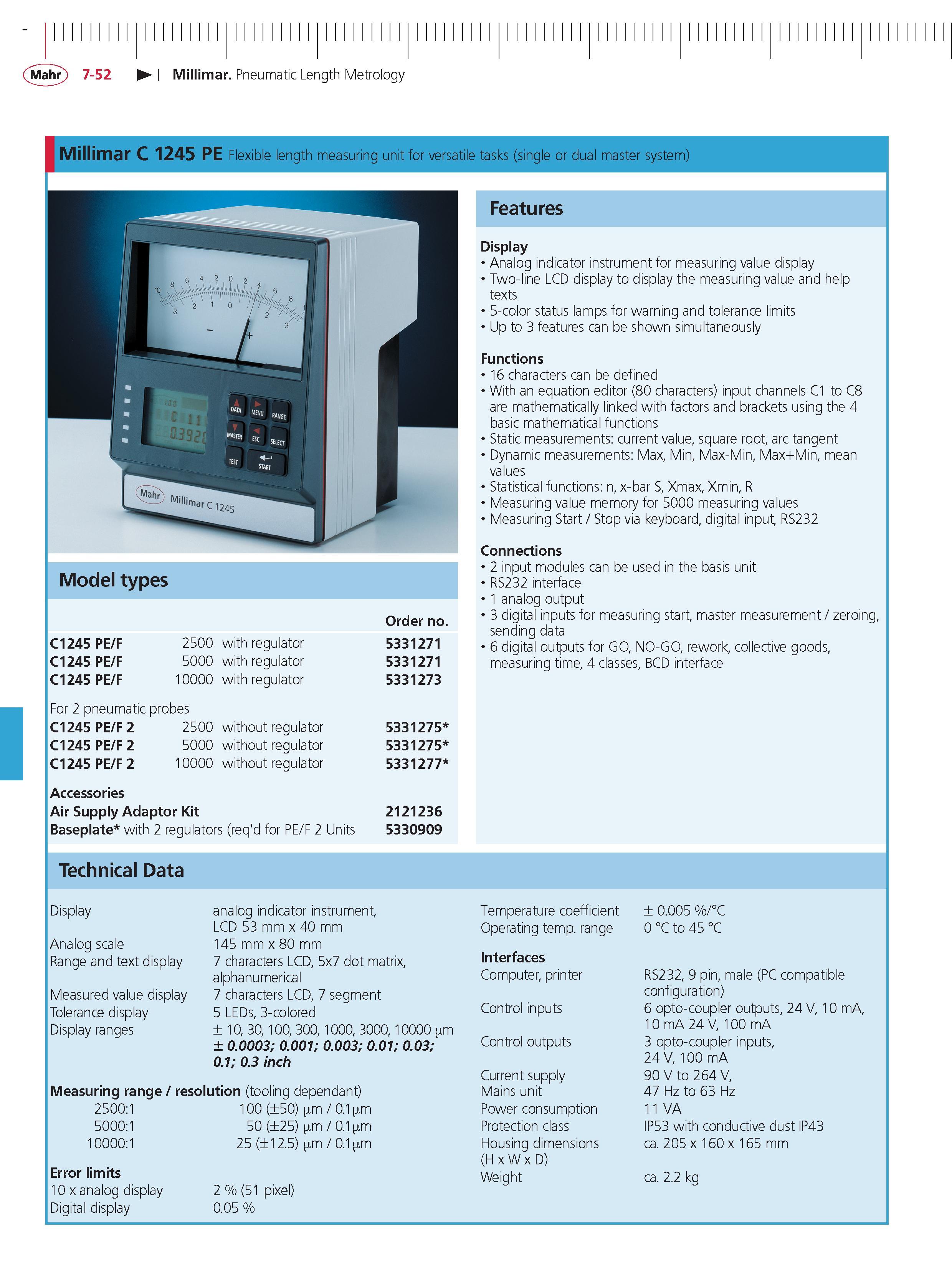

Mahr 7-52 Millimar Pneumatic Length Metrology Millimar C 1245 PE Flexible length measuring unit for versatile tasks (single or dual master system) Model types C1245 PE F C1245 PE F C1245 PE F 2500 with regulator 5000 with regulator 10000 with regulator For 2 pneumatic probes C1245 PE F 2 2500 without regulator C1245 PE F 2 5000 without regulator C1245 PE F 2 10000 without regulator Accessories Air Supply Adaptor Kit Baseplate with 2 regulators (req'd for PE F 2 Units order no. 5331271 5331271 5331273 5331275 5331275 5331277 2121236 5330909 Technical Data Display Analog scale Range and text display Measured value display Tolerance display Display ranges analog indicator instrument LCD 53 mm x 40 mm 145 mm x 80 mm 7 characters LCD 5x7 dot matrix alphanumerical 7 characters LCD 7 segment 5 LEDs 3-colored 10 30 100 300 1000 3000 10000 m 0.0003; 0.001; 0.003; 0.01; 0.03; 0.1; 0.3 inch Measuring range resolution (tooling dependant) 2500:1 100 (50) m 0m 5000:1 50 (25) m 0.1 m 10000:1 25 (12.5) m 0m Error limits 10 x analog display Digital display Features display Analog indicator instrument for measuring value display Two-line LCD display to display the measuring value and help texts 5-color status lamps for warning and tolerance limits Up to 3 features can be shown simultaneously Functions 16 characters can be defined With an equation editor (80 characters) input channels C1 to C8 are mathematically linked with factors and brackets using the 4 basic mathematical functions Static measurements current value square root arc tangent Dynamic measurements Max Min Max-Min Max+Min mean values Statistical functions n x-bar S Xmax Xmin R Measuring value memory for 5000 measuring values Measuring Start Stop via keyboard digital input RS232 Connections 2 input modules can be used in the basis unit RS232 interface 1 analog output 3 digital inputs for measuring start master measurement zeroing sending data 6 digital outputs for GO NO-GO rework collective goods measuring time 4 classes BCD interface 2 % (51 pixel) 0.05 % Temperature coefficient 0.005 % C Operating temp. range 0 C to 45 C interfaces Computer printer RS232 9 pin male (PC compatible configuration) Control inputs 6 opto-coupler outputs 24 V 10 mA 10 mA 24 V 100 mA Control outputs 3 opto-coupler inputs 24 V 100 mA Current supply 90 V to 264 V Mains unit 47 Hz to 63 Hz Power consumption 11 VA Protection class IP53 with conductive dust IP43 Housing dimensions (H x W x D) ca. 205 x 160 x 165 mm Weight ca. 2.2 kg
