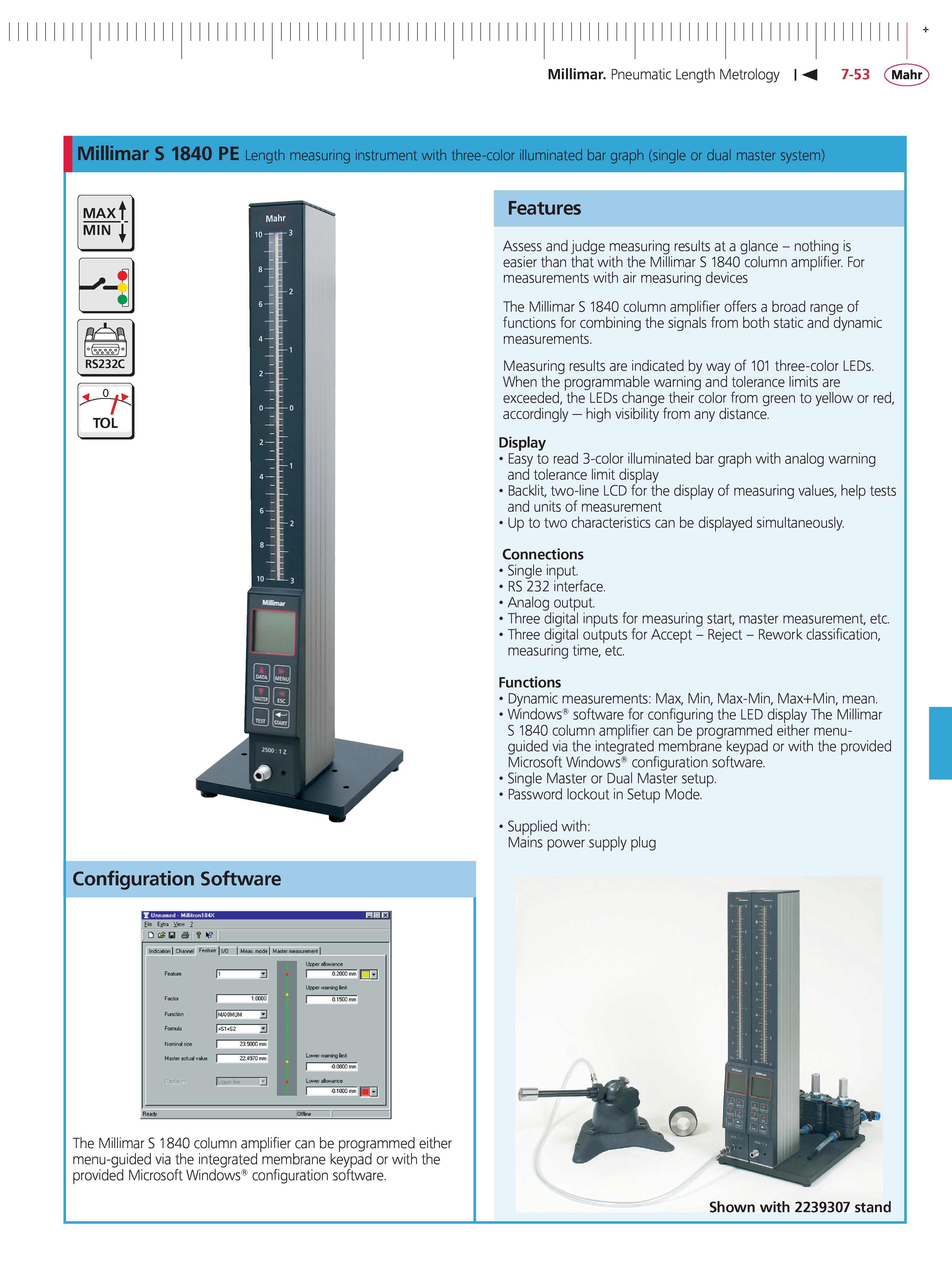

Millimar Pneumatic Length Metrology 7-53 Mahr Mi limar S 1840 PE Length measuring instrument with three-color illuminated bar graph (single or dual master system) Configuration Software File Extra View 2 rrrn G5H m Indcaton Channel Feature O Meas- mcde Master meastfemenl Upper alowance Feature 0-2000 iwn H l Upper warning limit Factor 1 0000 Finction Formula +S1 S2 .iHB Nominal size 215000 Master actual value 1 22.4970 mm 1 1 Lower warning imit -00801 rw (Upper line Lower alowance 1 .0.1000 njjj Offline The Millimar S 1840 column amplifier can be programmed either menu-guided via the integrated membrane keypad or with the provided Microsoft Windows configuration software. Features Assess and judge measuring results at a glance - nothing is easier than that with the Millimar S 1840 column amplifier. For measurements with air measuring devices The Millimar S 1840 column amplifier offers a broad range of functions for combining the signals from both static and dynamic measurements. Measuring results are indicated by way of 101 three-color LEDs. When the programmable warning and tolerance limits are exceeded the LEDs change their color from green to yellow or red accordingly high visibility from any distance. Display Easy to read 3-color illuminated bar graph with analog warning and tolerance limit display Backlit two-line LCD for the display of measuring values help tests and units of measurement Up to two characteristics can be displayed simultaneously. Connections Single input. RS 232 interface. Analog output. Three digital inputs for measuring start master measurement etc. Three digital outputs for Accept - Reject - Rework classification measuring time etc. Functions Dynamic measurements Max Min Max-Min Max+Min mean. Windows software for configuring the LED display The Millimar S 1840 column amplifier can be programmed either menu-guided via the integrated membrane keypad or with the provided Microsoft Windows configuration software. Single Master or Dual Master setup. Password lockout in Setup Mode. Supplied with Mains power supply plug Shown with 2239307 stand +
