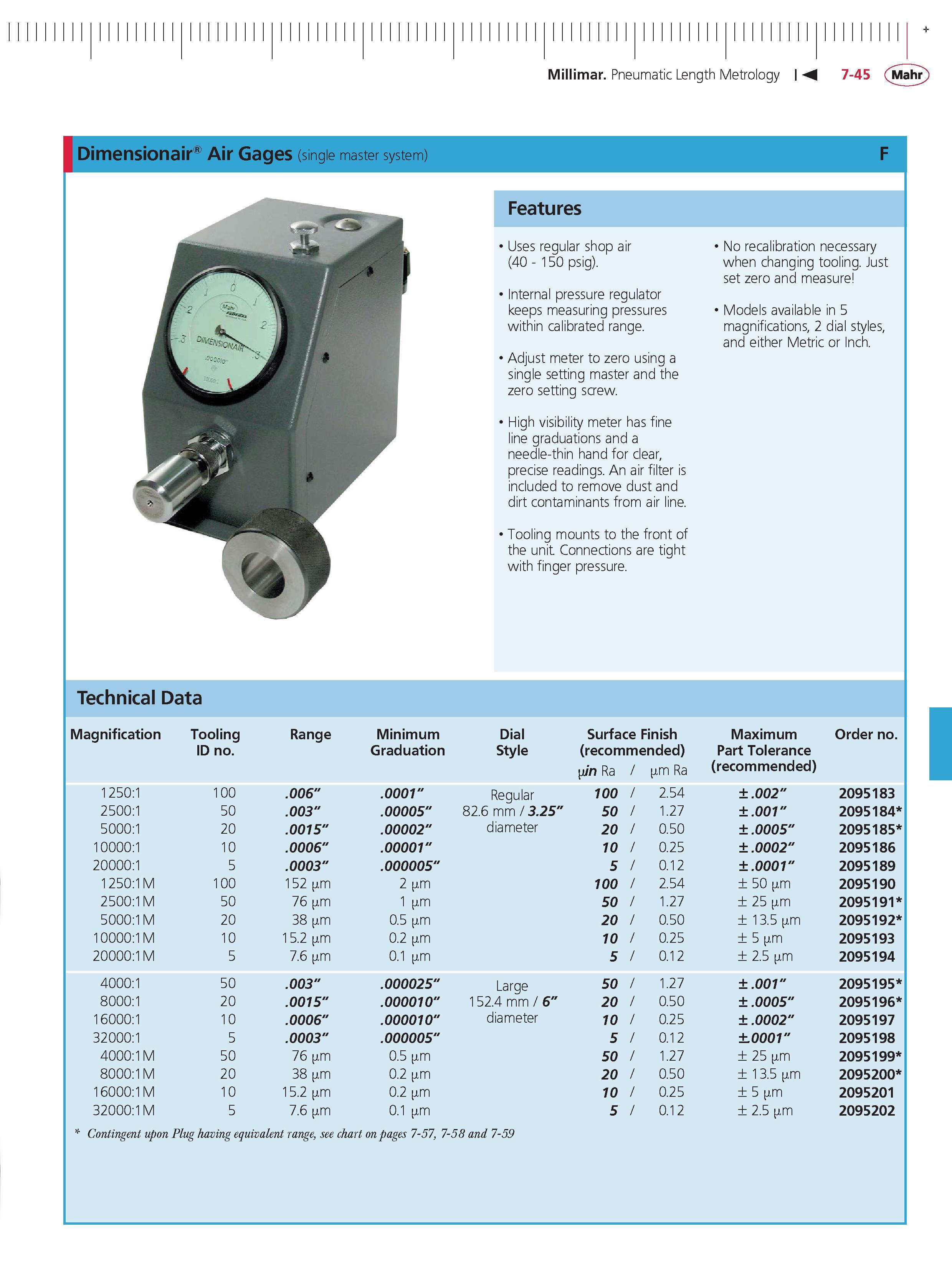

Millimar Pneumatic Length Metrology M 7-45 Mahr Dimensionair Air Gages (single master system) Features Uses regular shop air (40 - 150 psig). Internal pressure regulator keeps measuring pressures within calibrated range. Adjust meter to zero using a single setting master and the zero setting screw. High visibility meter has fine line graduations and a needle-thin hand for clear precise readings. An air filter is included to remove dust and dirt contaminants from air line. Tooling mounts to the front of the unit. Connections are tight with finger pressure. No recalibration necessary when changing tooling. Just set zero and measure Models available in 5 magnifications 2 dial styles and either Metric or Inch. technical data gnification Tooling Range Minimum Dial Surface Finish Maximum order no. Id no. graduation Style (recommended) Part tolerance yjn Ra m Ra (recommended) 1250 1 100 .006" .0001" Regular 100 2.54 .002" 2095183 2500 1 50 .003" .00005" 82.6 mm 3.25" 50 1.27 .001" 2095184 5000 1 20 .0015" .00002" diameter 20 0.50 .0005" 2095185 10000 1 10 .0006" .00001" 10 0.25 .0002" 2095186 20000 1 5 .0003" .000005" 5 0.12 .0001" 2095189 1250 1M 100 152 m 2 m 100 2.54 50 m 2095190 2500 1M 50 76 m 1 m 50 1.27 25 m 2095191 5000 1M 20 38 m 0.5 m 20 0.50 13.5 m 2095192 10000 1M 10 15.2 m 0.2 m 10 0.25 5 m 2095193 0 0 0 0 2 1M 5 7.6 m 0.1 m 5 0.12 2.5 m 2095194 4000 1 50 .003" .000025" Large 50 1.27 .001" 2095195 8000 1 20 .0015" .000010" 152.4 mm 6" 20 0.50 .0005" 2095196 16000 1 10 .0006" .000010" diameter 10 0.25 .0002" 2095197 0 0 0 2 m 1 5 .0003" .000005" 5 0.12 .0001" 2095198 4000 1M 50 76 m 0.5 m 50 1.27 25 m 2095199 8000 1M 20 38 m 0.2 m 20 0.50 13.5 m 2095200 16000 1M 10 15.2 m 0.2 m 10 0.25 5 m 2095201 32000 1M 5 7.6 m 0.1 m 5 0.12 2.5 m 2095202 Contingent upon Plug having equivalent range see chart on pages 7-57 7-58 and 7-59 F
