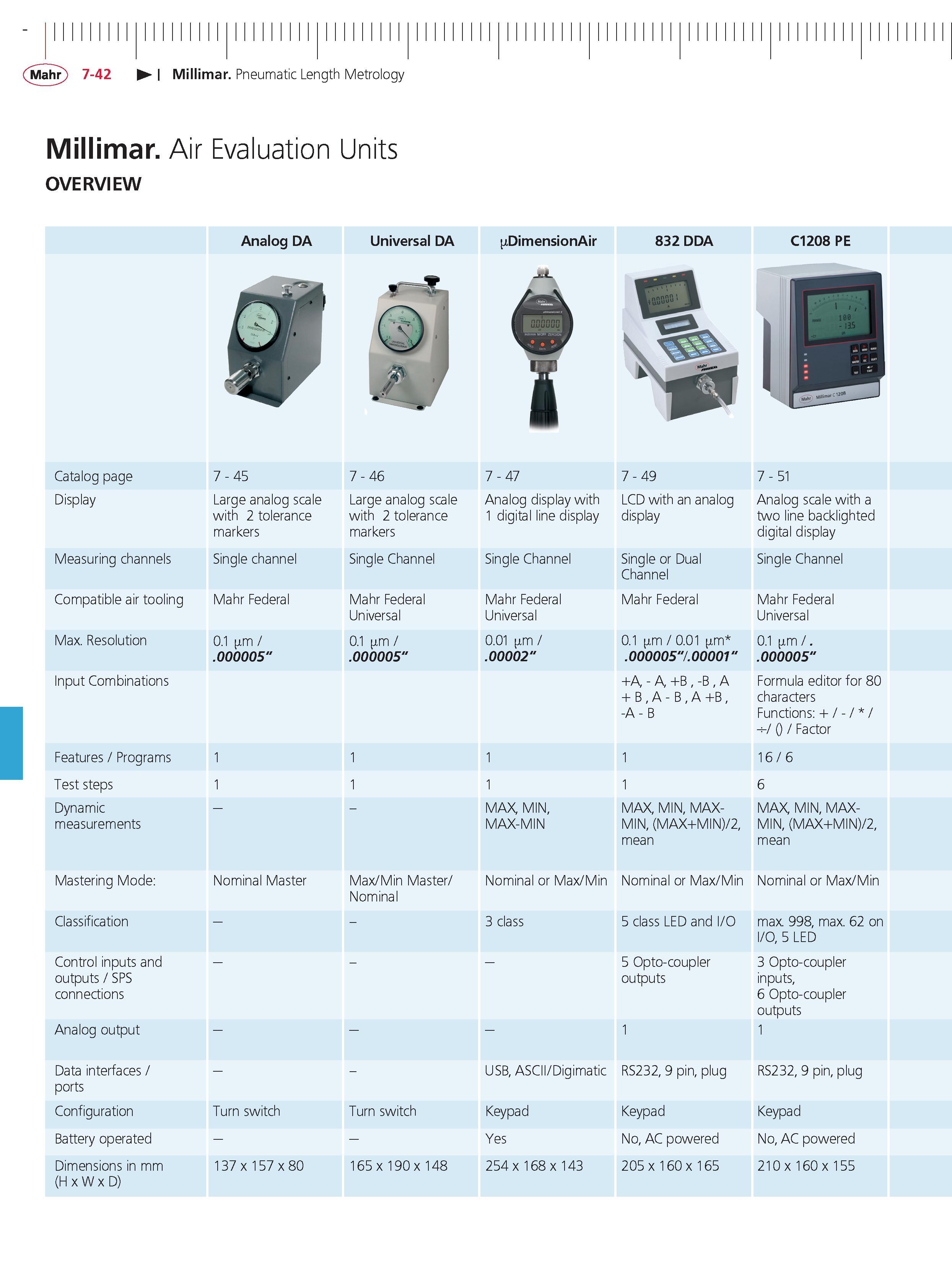

Mahr 7-42 Millimar Pneumatic Length Metrology Millimar Air Evaluation Units OVERVIEW Analog DA Universal DA DimensionAir 832 DDA C1208 PE Catalog page in 7 7 - 47 9 4 7 7 - 51 Display Large analog scale with 2 tolerance markers Large analog scale with 2 tolerance markers Analog display with 1 digital line display LCD with an analog display Analog scale with a two line backlighted digital display Measuring channels Single channel Single Channel Single Channel Single or Dual Channel Single Channel Compatible air tooling Mahr Federal Mahr Federal Universal Mahr Federal Universal Mahr Federal Mahr Federal Universal Max. Resolution 0.1 m .000005" 0.1 m .000005" 0.01 m .00002" 0.1 m 0.01 m .000005" .00001" 0.1 m . .000005" Input Combinations +A - A +B -B A + B A - B A +B -A - B Formula editor for 80 characters Functions + - +- 0 Factor Features Programs 1 1 1 1 16 6 Test steps 1 1 1 1 6 Dynamic measurements MAX MIN MAX-MIN MAX MIN MAX-MIN (MAX+MIN) 2 mean MAX MIN MAX-MIN (MAX+MIN) 2 mean Mastering Mode Nominal Master Max Min Master Nominal Nominal or Max Min Nominal or Max Min Nominal or Max Min Classification - 3 class 5 class LED and O max. 998 max. 62 on O 5 LED Control inputs and outputs SPS connections 5 Opto-coupler outputs 3 Opto-coupler inputs 6 Opto-coupler outputs Analog output 1 1 Data interfaces ports - USB ASCII Digimatic RS232 9 pin plug RS232 9 pin plug Configuration Turn switch Turn switch Keypad Keypad Keypad Battery operated Yes No AC powered No AC powered Dimensions in mm (H x W x D) 137 x 157 x 80 165 x 190 x 148 254 x 168 x 143 205 x 160 x 165 210 x 160 x 155
