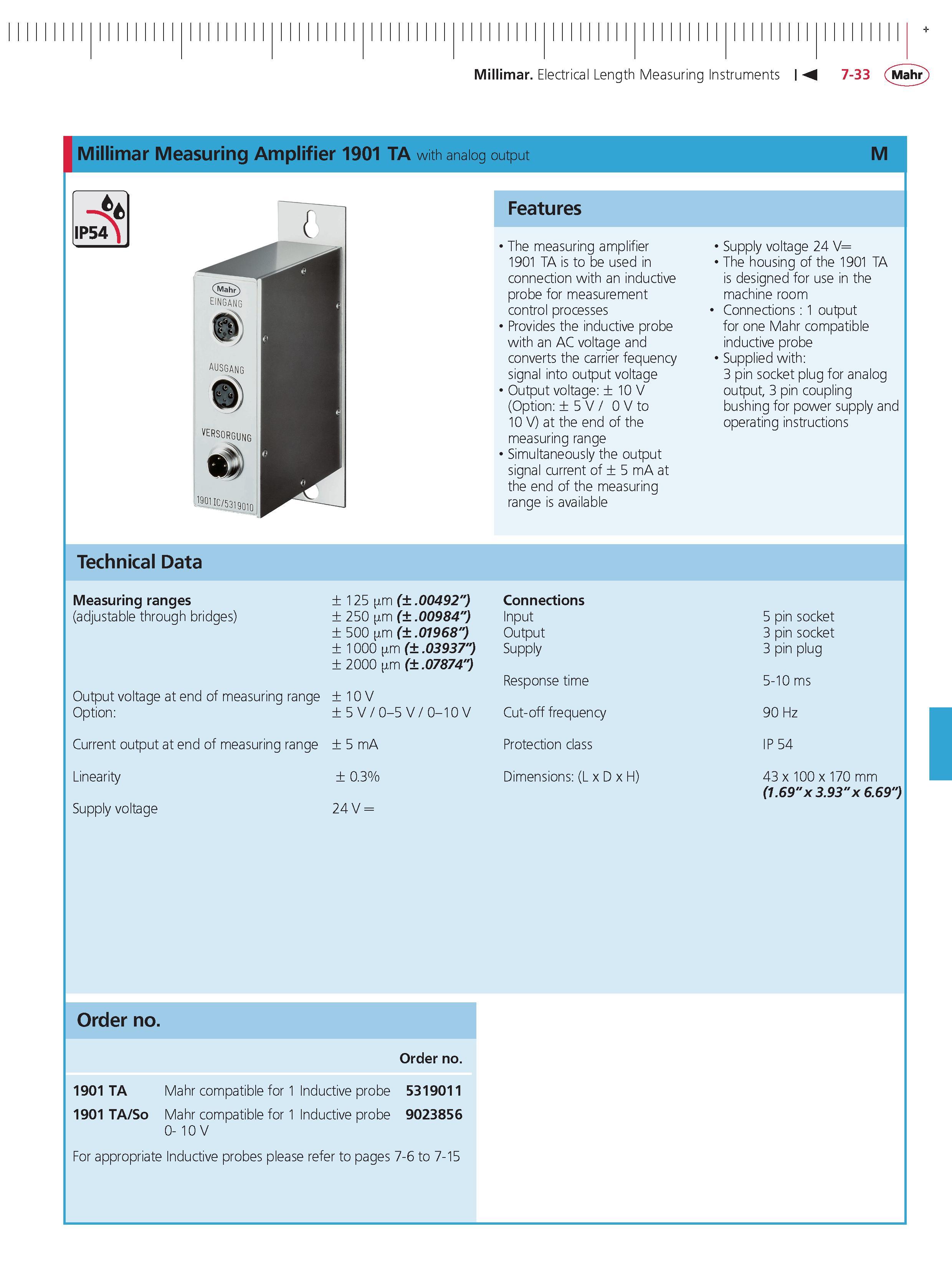

Millimar Electrical Length Measuring Instruments M 7-33 Mahr Millimar Measuring Amplifier 1901 TA with analog output M Features The measuring amplifier 1901 TA is to be used in connection with an inductive probe for measurement control processes Provides the inductive probe with an AC voltage and converts the carrier fequency signal into output voltage Output voltage 10 V (Option 5 V 0 V to 10 V) at the end of the measuring range Simultaneously the output signal current of 5 mA at the end of the measuring range is available Supply voltage 24 V The housing of the 1901 TA is designed for use in the machine room Connections 1 output for one Mahr compatible inductive probe Supplied with 3 pin socket plug for analog output 3 pin coupling bushing for power supply and operating instructions technical Data Measuring ranges 125 m ( .00492") Connections (adjustable through bridges) 250 m ( .00984") Input 5 pin socket 500 m ( .01968') Output 3 pin socket 1000 m ( .03937') Supply 3 pin plug 2000 m ( .07874') Response time 5-10 ms Output voltage at end of measuring range 10 V Option 5V 0-5V 0-10V Cut-off frequency 90 Hz Current output at end of measuring range A m 5 Protection class IP 54 Linearity 0.3% Dimensions (L x D x H) 43 x 100 x 170 mm (1.69"x 3.93"x 6.69") Supply voltage 24 V order no. order no. 1901 TA Mahr compatible for 1 Inductive probe 5319011 1901 TA So Mahr compatible for 1 Inductive probe 9023856 0- 10 V For appropriate Inductive probes please refer to pages 7-6 to 7-15 +
