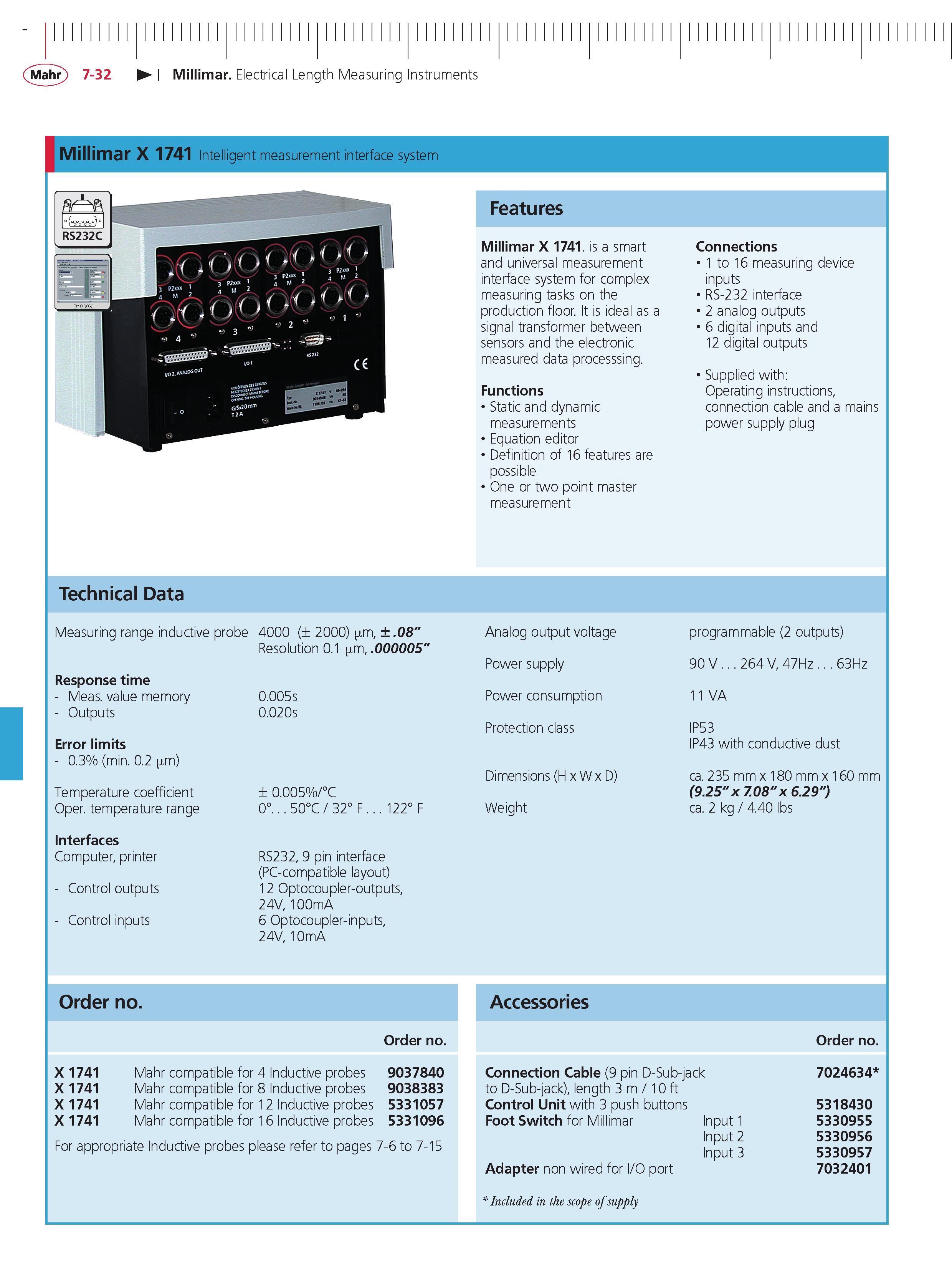

Mahr 7-32 Millimar Electrical Length Measuring Instruments Millimar X 1741 Intelligent measurement interface system Features Millimar X 1741. is a smart and universal measurement interface system for complex measuring tasks on the production floor. It is ideal as a signal transformer between sensors and the electronic measured data processsing. Functions Static and dynamic measurements Equation editor Definition of 16 features are possible One or two point master measurement Connections 1 to 16 measuring device inputs rS-232 interface 2 analog outputs 6 digital inputs and 12 digital outputs Supplied with Operating instructions connection cable and a mains power supply plug Technical Data Measuring range inductive probe Response time - Meas. value memory - Outputs Error limits - 0.3% (min. 0.2 m) Temperature coefficient Oper. temperature range interfaces Computer printer - Control outputs - Control inputs 4000 ( 2000) m .08" Resolution 0.1 m .000005" 0.005s 0.020s 0.005% C 0. 50C 32 F . 122 F Analog output voltage Power supply Power consumption Protection class Dimensions (H x W x D) Weight programmable (2 outputs) 90 V . 264 V 47Hz . 63Hz 11 VA IP53 IP43 with conductive dust ca. 235 mm x 180 mm x 160 mm (9.25"x 7.08"x 6.29") ca. 2 kg 4.40 lbs RS232 9 pin interface (PC-compatible layout) 12 Optocoupler-outputs 24V 100mA 6 Optocoupler-inputs 24V 10mA order no. X 1741 Mahr compatible for 4 Inductive probes X 1741 Mahr compatible for 8 Inductive probes X 1741 Mahr compatible for 12 Inductive probes X 1741 Mahr compatible for 16 Inductive probes order no. 9037840 9038383 5331057 5331096 For appropriate Inductive probes please refer to pages 7-6 to 7-15 Accessories to D-Sub-jack) length 3 m 10 ft Control unit with 3 push buttons Foot Switch for Millimar Adapter non wired for O port Included in the scope of supply order no. 7024634 5318430 Input 1 5330955 Input 2 5330956 Input 3 5330957 7032401
