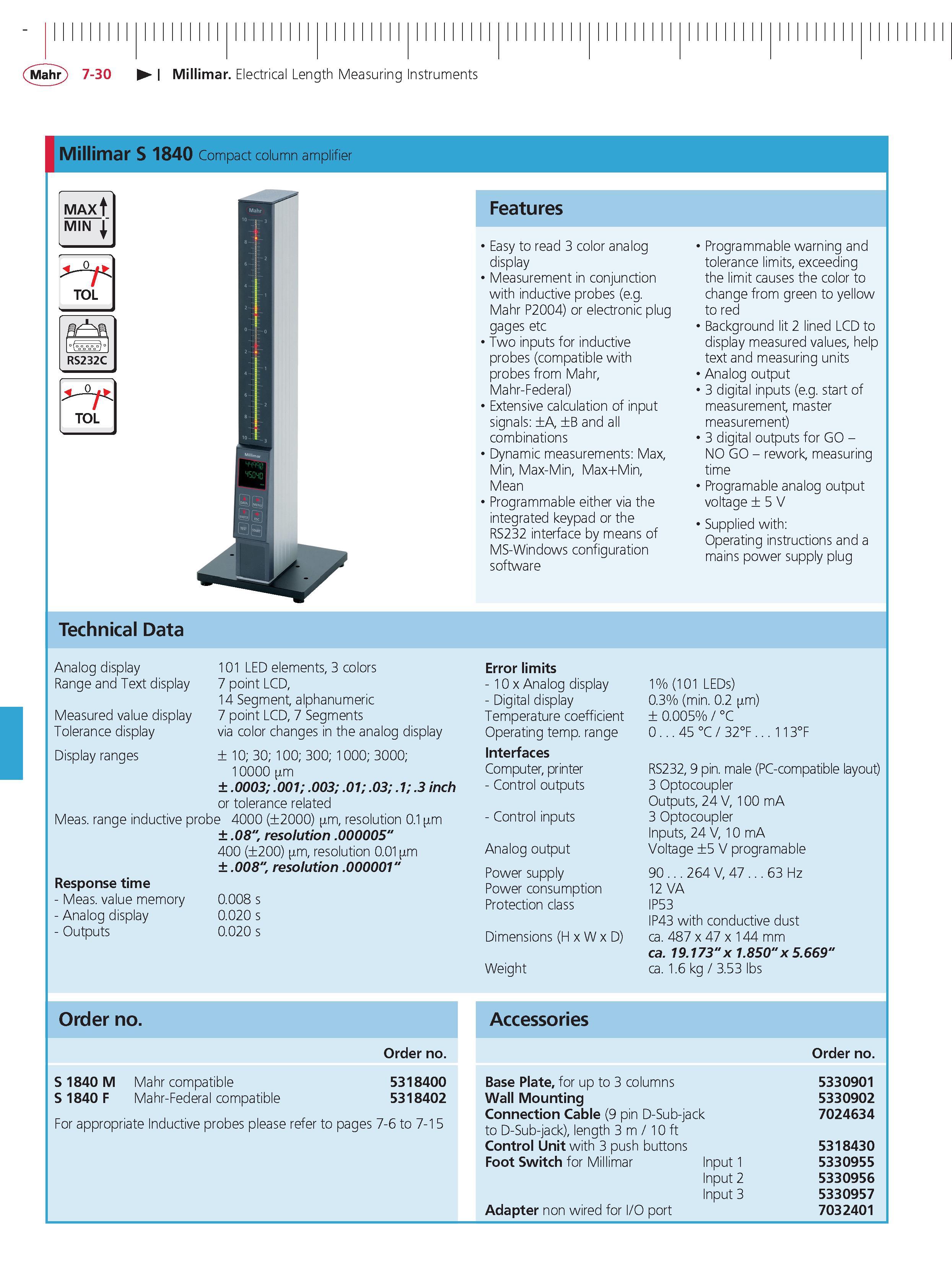

Mahr 7-30 Millimar Electrical Length Measuring Instruments Millimar S 1840 Compact column amplifier MAxf MIN TOL RS232C Features Easy to read 3 color analog display Measurement in conjunction with inductive probes (e.g. Mahr P2004) or electronic plug gages etc Two inputs for inductive probes (compatible with probes from Mahr Mahr-Federal) Extensive calculation of input signals A B and all combinations Dynamic measurements Max Min Max-Min Max+Min Mean Programmable either via the integrated keypad or the RS232 interface by means of MS-Windows configuration software Programmable warning and tolerance limits exceeding the limit causes the color to change from green to yellow to red Background lit 2 lined LCD to display measured values help text and measuring units Analog output 3 digital inputs (e.g. start of measurement master measurement) 3 digital outputs for GO -NO GO - rework measuring time Programable analog output voltage 5 V Supplied with Operating instructions and a mains power supply plug Technical Data Analog display Range and Text display Measured value display Tolerance display Display ranges 101 LED elements 3 colors 7 point LCD l4 Segment alphanumeric 7 point LCD 7 Segments via color changes in the analog display 10; 30; 100; 300; 1000; 3000; 10000 m .0003; .001; .003; .01; .03; .1; .3 inch or tolerance related Meas. range inductive probe 4000 (2000) m resolution 0.1 m .08" resolution .000005" 400 (200) m resolution 0.01 m .008" resolution .000001" Response time - Meas. value memory 0.008 s - Analog display 0.020 s - Outputs 0.020 s Error limits - 10 x Analog display - Digital display Temperature coefficient Operating temp. range interfaces Computer printer - Control outputs - Control inputs Analog output Power supply Power consumption Protection class Dimensions (H x W x D) Weight 1% (101 LEDs) 0.3% (min. 0.2 m) 0.005% C 0 . 45 C 32F . 113F RS232 9 pin. male (PC-compatible layout) 3 Optocoupler Outputs 24 V 100 mA 3 Optocoupler Inputs 24 V 10 mA Voltage 5 V programable 90 . 264 V 47 . 63 Hz 12 VA IP53 IP43 with conductive dust ca. 487 x 47 x 144 mm ca. 19.173" x 1.850" x 5.669" ca. 1.6 kg 3.53 lbs order no. S 1840 M Mahr compatible S 1840 F Mahr-Federal compatible For appropriate Inductive probes please refer to pages 7-6 to 7-15 order no. 5318400 5318402 Accessories Base Plate for up to 3 columns wall Mounting Connection Cable (9 pin D-Sub-ja to D-Sub-jack) length 3 m 10 ft Control unit with 3 push buttons Foot Switch for Millimar Adapter non wired for O port order no. 5330901 5330902 7024634 5318430 Input 1 5330955 Input 2 5330956 Input 3 5330957 7032401
