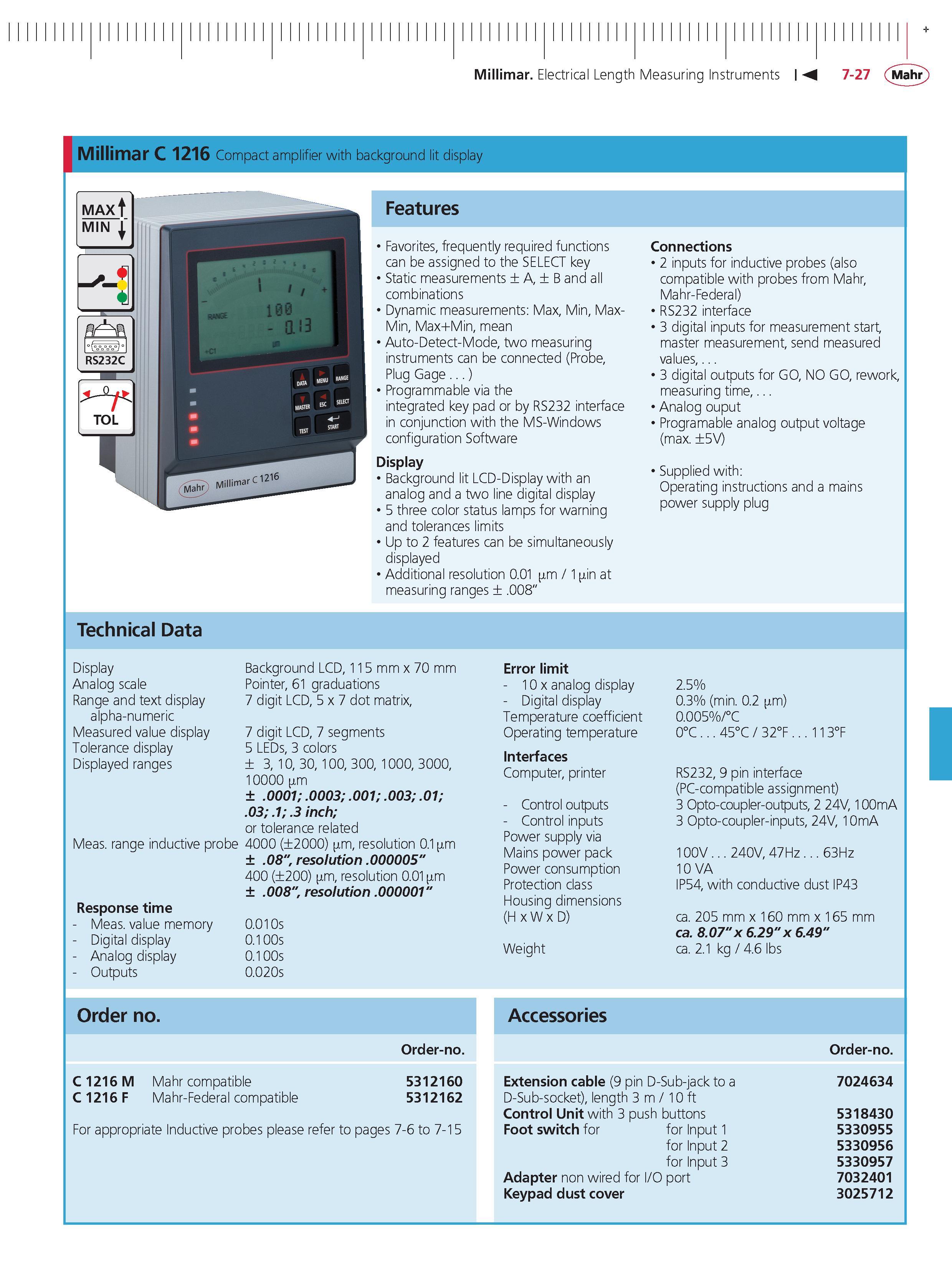

Millimar Electrical Length Measuring Instruments M 7-27 Mahr Millimar C 1216 Compact amplifier with background lit display Features Favorites frequently required functions can be assigned to the SELECT key Static measurements A B and all combinations Dynamic measurements Max Min Max-Min Max+Min mean Auto-Detect-Mode two measuring instruments can be connected (Probe Plug Gage . ) Programmable via the integrated key pad or by RS232 interface in conjunction with the MS-Windows configuration Software Display Background lit LCD-Display with an analog and a two line digital display 5 three color status lamps for warning and tolerances limits Up to 2 features can be simultaneously displayed Additional resolution 0.01 m 1 in at measuring ranges .008" Connections 2 inputs for inductive probes (also compatible with probes from Mahr Mahr-Federal) RS232 interface 3 digital inputs for measurement start master measurement send measured values . 3 digital outputs for GO NO GO rework measuring time . Analog ouput Programable analog output voltage (max. 5V) Supplied with Operating instructions and a mains power supply plug Technical data Display Analog scale Range and text display alpha-numeric Measured value display Tolerance display Displayed ranges Background LCD 115 mm x 70 mm Pointer 61 graduations 7 digit LCD 5 x 7 dot matrix 7 digit LCD 7 segments 5 LEDs 3 colors 3 10 30 100 300 1000 3000 10000 m .0001; .0003; .001; .003; .01; .03; .1; .3 inch; or tolerance related Meas. range inductive probe 4000 (2000) m resolution 0.1 m .08" resolution .000005" 400 (200) m resolution 0.01 m .008" resolution .000001" Response time - Meas. value memory 0.010s - Digital display 0.100s - Analog display 0.100s - Outputs 0.020s Error limit - 10 x analog display - Digital display Temperature coefficient Operating temperature interfaces Computer printer - Control outputs - Control inputs Power supply via Mains power pack Power consumption Protection class Housing dimensions (H x W x D) Weight 2.5% 0.3% (min. 0.2 m) 0.005% C 0C . 45C 32F . 113F RS232 9 pin interface (PC-compatible assignment) 3 Opto-coupler-outputs 2 24V 100mA 3 Opto-coupler-inputs 24V 10mA 100V . ..240V 47 Hz.. . 63Hz 10 VA IP54 with conductive dust IP43 ca. 205 mm x 160 mm x 165 mm ca. 8.07"x 6.29"x 6.49" ca. 2.1 kg 4.6 lbs order no. C 1216 M Mahr compatible C 1216 F Mahr-Federal compatible order-no. 5312160 5312162 For appropriate Inductive probes please refer to pages 7-6 to 7-15 Accessories order-no. Extension cable (9 pin D-Sub-jack to a 7024634 D-Sub-socket) length 3 m 10 ft Control unit with 3 push buttons 5318430 Foot switch for for Input 1 5330955 for Input 2 5330956 for Input 3 5330957 Adapter non wired for O port 7032401 Keypad dust cover 3025712 +
