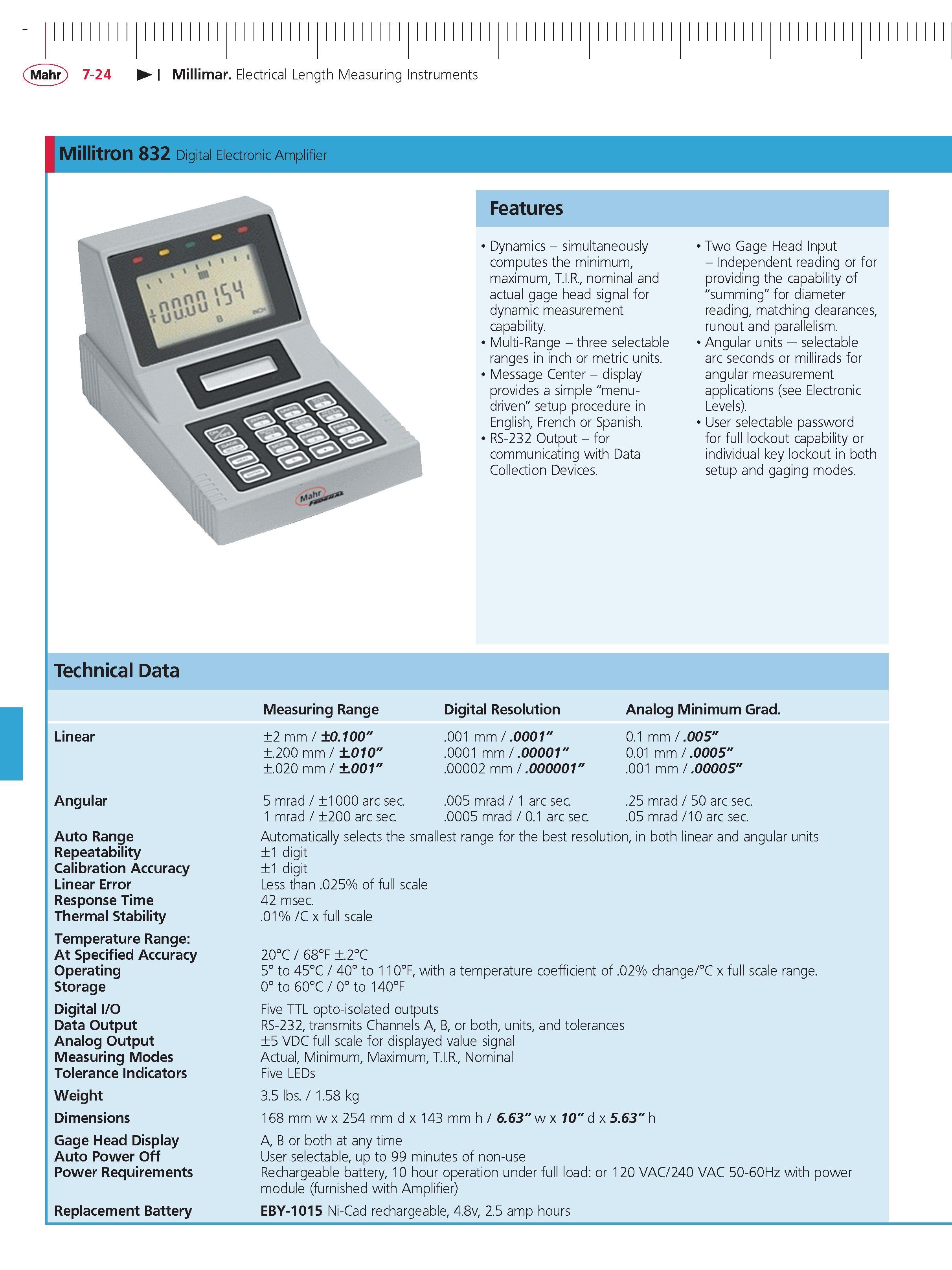

Mahr 7-24 Millimar Electrical Length Measuring Instruments Millitron 832 Digital Electronic Amplifier Features Dynamics - simultaneously computes the minimum maximum T.I.R. nominal and actual gage head signal for dynamic measurement capability. Multi-Range - three selectable ranges in inch or metric units. Message Center - display provides a simple "menu-driven" setup procedure in English French or Spanish. RS-232 Output - for communicating with Data Collection Devices. Two Gage Head Input - Independent reading or for providing the capability of "summing" for diameter reading matching clearances runout and parallelism. Angular units selectable arc seconds or millirads for angular measurement applications (see Electronic Levels). User selectable password for full lockout capability or individual key lockout in both setup and gaging modes. Technical Data Linear Measuring Range 2 mm 0.100" .200 mm .010" .020 mm .001" digital resolution .001 mm .0001" .0001 mm .00001" .00002 mm .000001" Analog Minimum Grad. 0.1 mm .005" 0.01 mm .0005" .001 mm .00005" Angular Auto range repeatability Calibration Accuracy linear Error response time thermal Stability temperature range At Specified Accuracy operating Storage digital i o data output Analog output Measuring Modes tolerance indicators weight dimensions gage Head display Auto Power off Power requirements replacement Battery 5 mrad 1000 arc sec. .005 mrad 1 arc sec. .25 mrad 50 arc sec. 1 mrad 200 arc sec. .0005 mrad 0.1 arc sec. .05 mrad 10 arc sec. Automatically selects the smallest range for the best resolution in both linear and angular units 1 digit 1 digit Less than .025% of full scale 42 msec. .01% C x full scale 20C 68F .2C 5 to 45C 40 to 110F with a temperature coefficient of .02% change C x full scale range. 0 to 60C 0 to 140F Five TTL opto-isolated outputs RS-232 transmits Channels A B or both units and tolerances 5 VDC full scale for displayed value signal Actual Minimum Maximum T.I.R. Nominal Five LEDs 3.5 lbs. 1.58 kg 168 mm w x 254 mm d x 143 mm h 6.63" w x 10" d x 5.63" h A B or both at any time User selectable up to 99 minutes of non-use Rechargeable battery 10 hour operation under full load or 120 VAC 240 VAC 50-60Hz with power module (furnished with Amplifier) EBY-1015 Ni-Cad rechargeable 4.8v 2.5 amp hours
