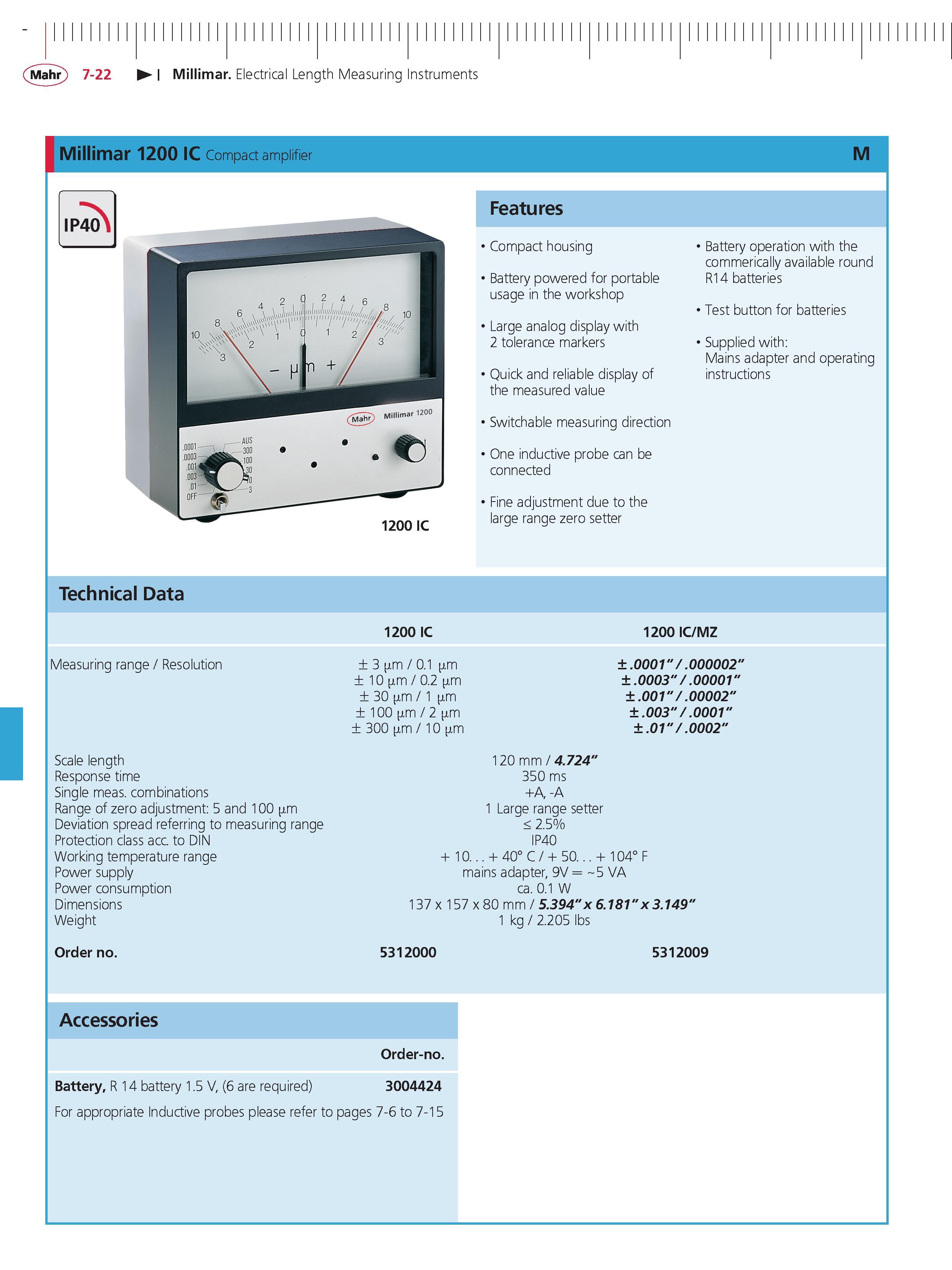

Mahr 7-22 Millimar Electrical Length Measuring Instruments Millimar 1200 1C Compact amplifier M IP40 Features 1200 IC technical Data Measuring range Resolution 1200 IC 3 m 0.1 m 10 m 0.2 m 30 m 1 m 100 m 2 m 300 m 10 m 1200 iC MZ .0001" .000002" .0003" .00001" .001" .00002" .003" .0001" .01" .0002" Scale length Response time Single meas. combinations Range of zero adjustment 5 and 100 m Deviation spread referring to measuring range Protection class acc. to DIN Working temperature range Power supply Power consumption Dimensions Weight order no. 120 mm 4.724" 350 ms +A -A 1 Large range setter 2.5% IP40 + 10. + 40 C + 50. + 104 F mains adapter 9V 5 VA ca. 0.1 W 137 x 157 x 80 mm 5.394"x 6.181"x 3.149" 1 kg 2.205 lbs 5312000 5312009 Accessories order-no. Battery R 14 battery 1.5 V (6 are required) 3004424 For appropriate Inductive probes please refer to pages 7-6 to 7-15
