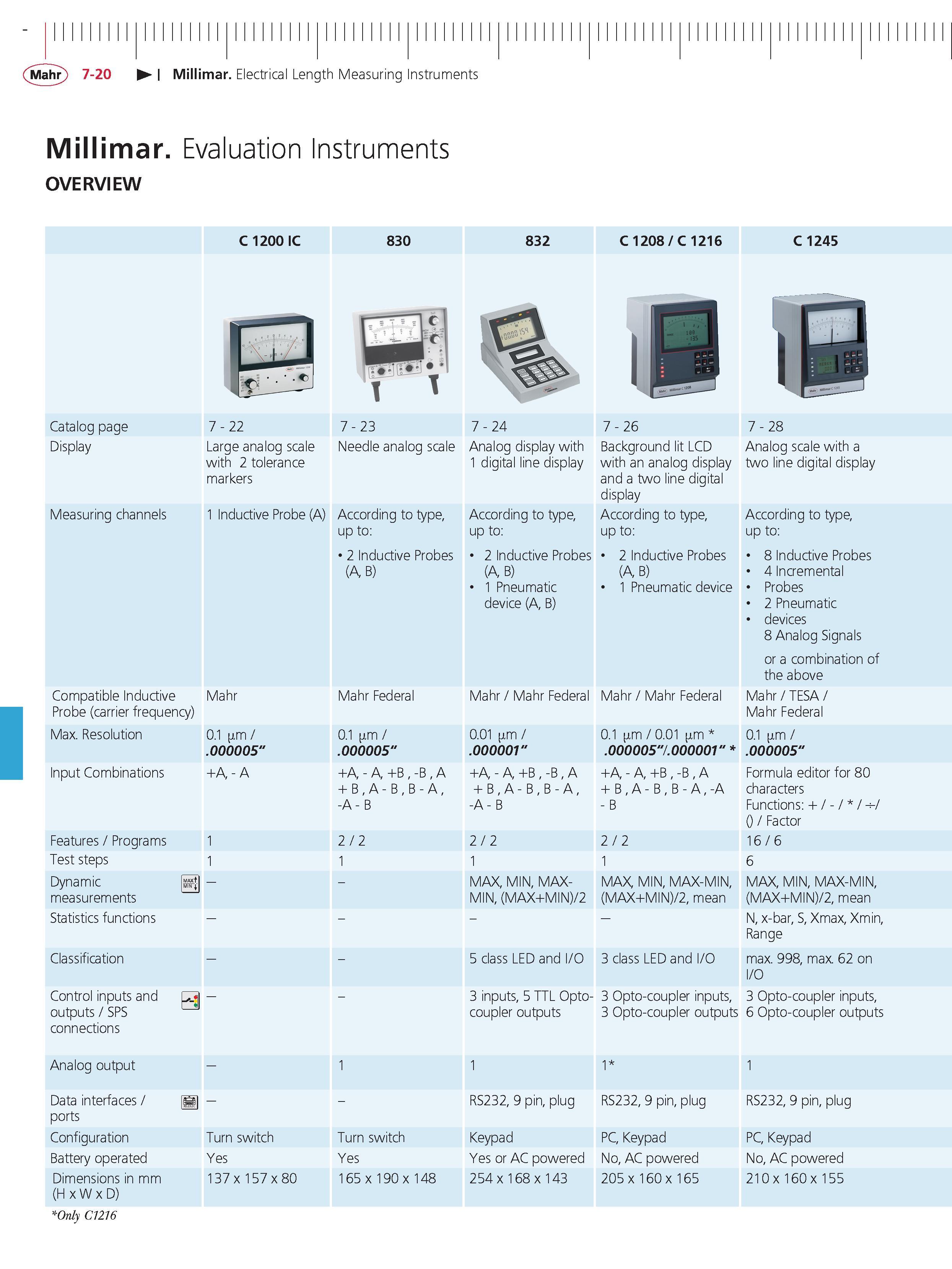

Mahr 7-20 Millimar Electrical Length Measuring Instruments Mill imar. Evaluation Instruments OVERVIEW C 1200 IC 830 832 C 1208 C 1216 C 1245 Catalog page 1 - 22 1 - 23 1 - 24 1 - 26 1 - 28 Display Large analog scale with 2 tolerance markers Needle analog scale Analog display with 1 digital line display Background lit LCD with an analog display and a two line digital display Analog scale with a two line digital display Measuring channels 1 Inductive Probe (A) According to type up to 2 Inductive Probes (A B) According to type up to 2 Inductive Probes (A B) 1 Pneumatic device (A B) According to type up to 2 Inductive Probes (A B) 1 Pneumatic device According to type up to 8 Inductive Probes 4 Incremental Probes 2 Pneumatic devices 8 Analog Signals or a combination of the above Compatible Inductive Probe (carrier frequency) Mahr Mahr Federal Mahr Mahr Federal Mahr Mahr Federal Mahr TESA Mahr Federal Max. Resolution 0.1 m .000005" 0.1 m .000005" 0.01 m .000001" 0.1 m 0.01 m .000005" .000001" 0.1 m .000005" Input Combinations +A - A +A - A +B -B A + B A - B B - A -A - B +A - A +B -B A + B A - B B - A -A - B +A - A +B -B A + B A - B B - A -A - B Formula editor for 80 characters Functions + - +- () Factor Features Programs 1 2 2 2 2 2 2 16 6 Test steps 1 1 1 1 6 Dynamic measurements ( ) MAX MIN MAX-MIN (MAX+MIN) 2 MAX MIN MAX-MIN (MAX+MIN) 2 mean MAX MIN MAX-MIN (MAX+MIN) 2 mean Statistics functions - N x-bar S Xmax Xmin Range Classification - 5 class LED and O 3 class LED and O max. 998 max. 62 on O Control inputs and outputs SPS connections a 3 inputs 5 TTL Opto-coupler outputs 3 Opto-coupler inputs 3 Opto-coupler inputs 3 Opto-coupler outputs 6 Opto-coupler outputs Analog output 1 1 1 1 Data interfaces ports S - RS232 9 pin plug RS232 9 pin plug RS232 9 pin plug Configuration Turn switch Turn switch Keypad PC Keypad PC Keypad Battery operated Yes Yes Yes or AC powered No AC powered No AC powered Dimensions in mm (H x W x D) 131 x 151 x 80 165 x 190 x 148 254 x 168 x 143 205 x 160 x 165 210 x160x 155 Only C1216
