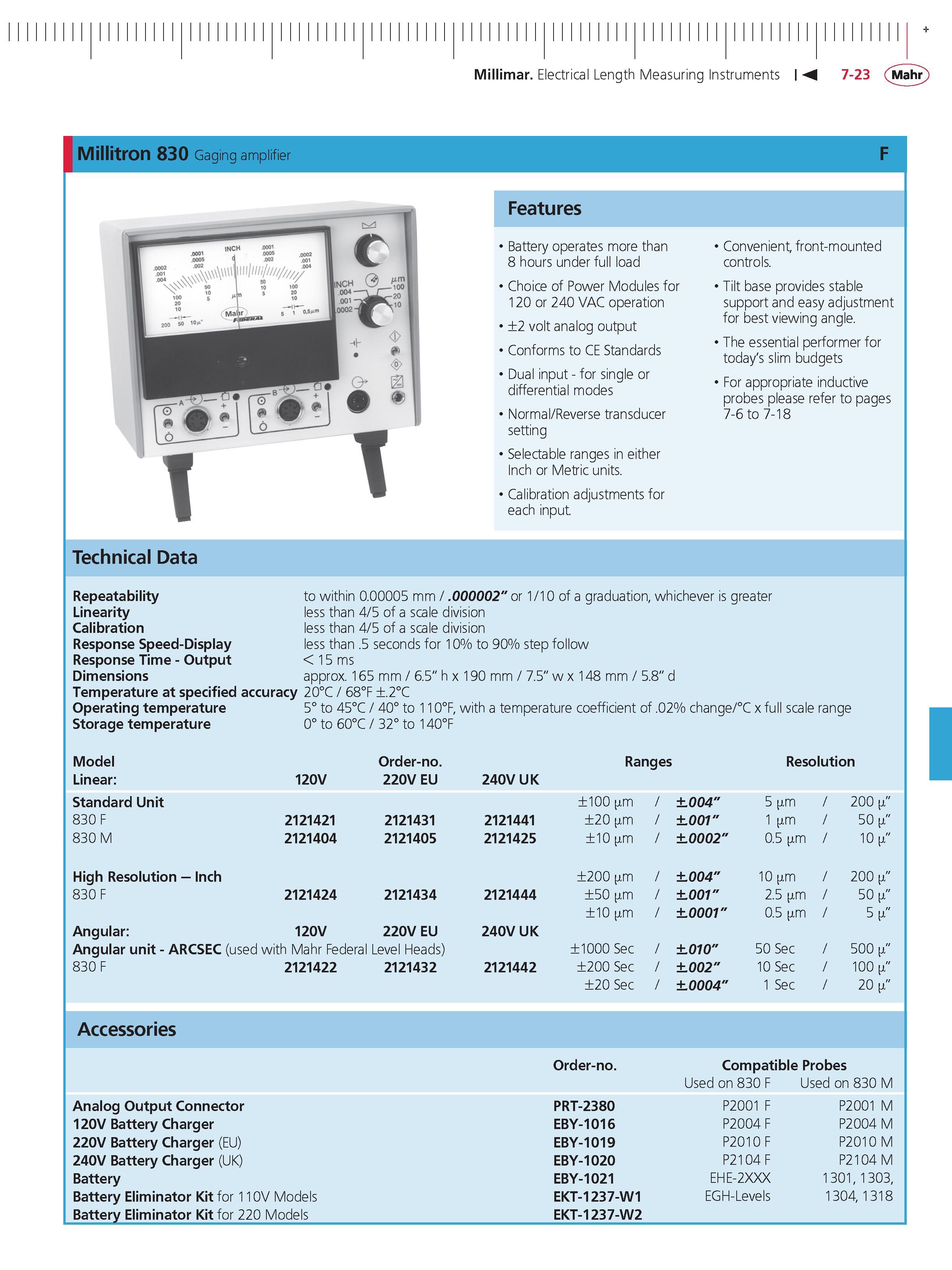

Millimar Electrical Length Measuring Instruments M 7-23 Mahr Millitron 830 Gaging amplifier Features Battery operates more than 8 hours under full load Choice of Power Modules for 120 or 240 VAC operation 2 volt analog output Conforms to CE Standards Dual input - for single or differential modes Normal Reverse transducer setting Selectable ranges in either Inch or Metric units. Calibration adjustments for each input. Convenient front-mounted controls. Tilt base provides stable support and easy adjustment for best viewing angle. The essential performer for today's slim budgets For appropriate inductive probes please refer to pages 7-6 to 7-18 technical Data Repeatability Linearity Calibration response Speed-display response Time - output dimensions to within 0.00005 mm .000002" or 1 10 of a graduation whichever is greater less than 4 5 of a scale division less than 4 5 of a scale division less than .5 seconds for 10% to 90% step follow 15 ms approx. 165 mm 6.5" h x 190 mm 7.5" w x 148 mm 5.8" d temperature at specified accuracy 20C 68F .2C operating temperature 5 to 45C 40 to 110F with a temperature coefficient of .02% change C x full scale range Storage temperature 0 to 60C 32 to 140F Model order-no. ranges resolution Linear 120v 220v Eu 240v uK Standard unit 100 m .004" 5 m 200 830 F 2121421 2121431 2121441 20 m .001" 1 m 0 5 830 M 2121404 2121405 2121425 10 m .0002" 0.5 m 10 High resolution Inch 200 m .004" 10 m 200 830 F 2121424 2121434 2121444 50 m .001" 2.5 m 0 5 10 m .0001" 0.5 m 5 Angular 120v 220v Eu 240v uK Angular unit - ARCSEC (used with Mahr Federal Level Heads) 1000 Sec .010" 50 Sec 500 " 830 F 2121422 2121432 2121442 200 Sec .002" 10 Sec 0 10 20 Sec .0004" 1 Sec 0 2 Accessories Analog output Connector 120v Battery Charger 220v battery Charger (EU) 240v battery Charger (UK) battery battery Eliminator Kit for 110V Models battery eliminator Kit for 220 Models order-no. PRT-2380 EBY-1016 EBY-1019 EBY-1020 EBY-1021 EKT-1237-w1 EKt-1237-w2 Compatible Probes Used on 830 F P2001 F P2004 F P2010 F P2104 F EHE-2XXX EGH-Levels Used on 830 M P2001 M P2004 M P2010 M P2104 M 1301 1303 1304 1318 F
