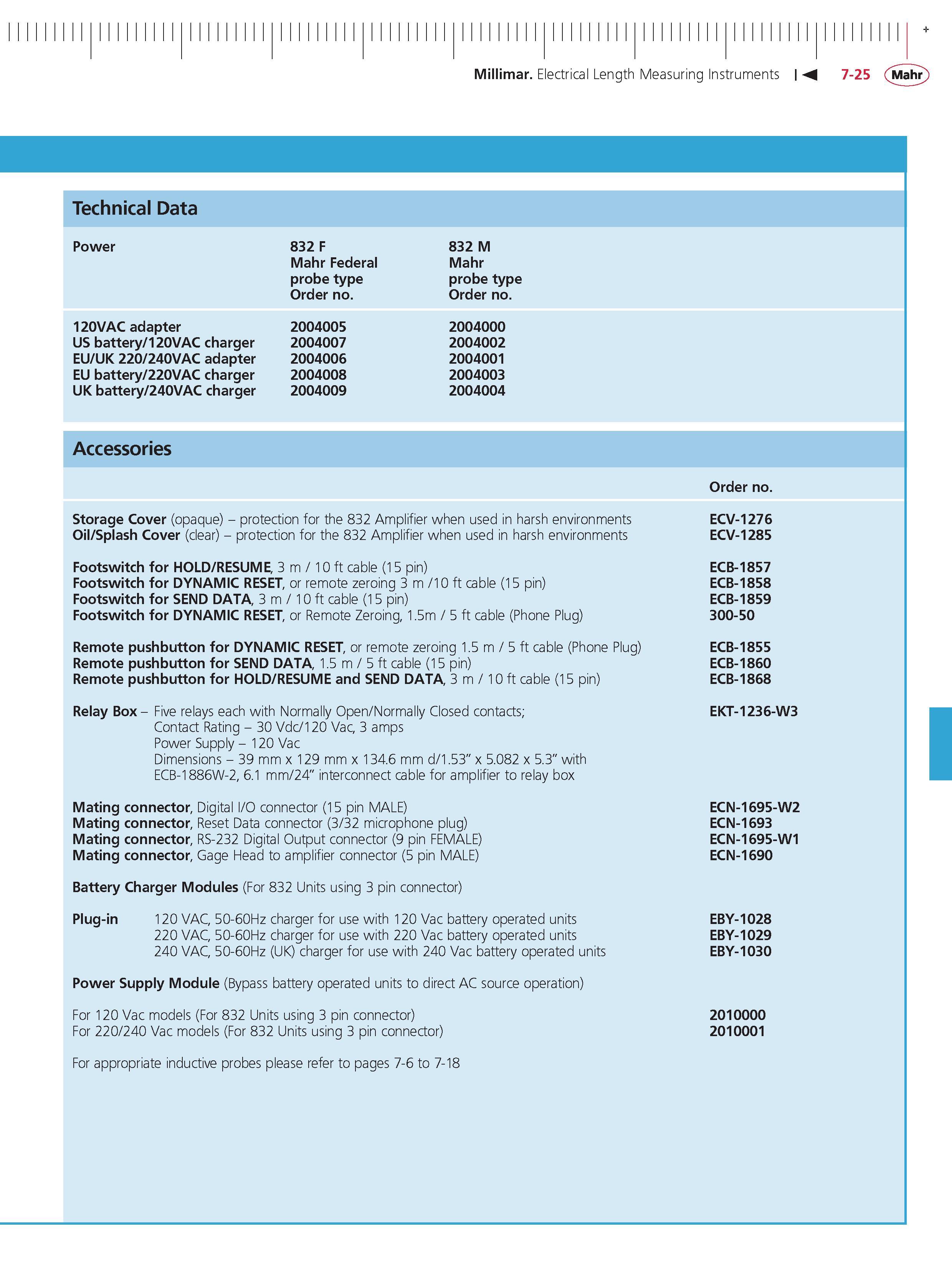

Millimar Electrical Length Measuring Instruments M 7-25 Mahr Technical Data Power 832 F 832 M Mahr Federal Mahr probe type probe type order no. order no. 120vAC adapter 2004005 2004000 us battery 120vAC charger 2004007 2004002 Eu uK 220 240vAC adapter 2004006 2004001 Eu battery 220vAC charger 2004008 2004003 uK battery 240vAC charger 2004009 2004004 Accessories Order no. Storage Cover (opaque) - protection for the 832 Amplifier when used in harsh environments Oil Splash Cover (clear) - protection for the 832 Amplifier when used in harsh environments Footswitch for HoLD RESuME 3 m 10 ft cable (15 pin) Footswitch for Dynamic REsEt or remote zeroing 3 m 10 ft cable (15 pin) Footswitch for Send Data 3 m 10 ft cable (15 pin) Footswitch for DYNAMIC Reset or Remote Zeroing 1.5m 5 ft cable (Phone Plug) remote pushbutton for DYNAMIC Reset or remote zeroing 1.5 m 5 ft cable (Phone Plug) remote pushbutton for SEND DATA 1.5 m 5 ft cable (15 pin) remote pushbutton for HoLD RESuME and SEND DaTa 3 m 10 ft cable (15 pin) relay Box - Five relays each with Normally Open Normally Closed contacts; Contact Rating - 30 Vdc 120 Vac 3 amps Power Supply - 120 Vac Dimensions - 39 mm x 129 mm x 134.6 mm d 1.53" x 5.082 x 5.3" with ECB-1886W-2 6.1 mm 24" interconnect cable for amplifier to relay box Mating connector Digital O connector (15 pin MALE) Mating connector Reset Data connector (3 32 microphone plug) Mating connector RS-232 Digital Output connector (9 pin fEmALE) Mating connector Gage Head to amplifier connector (5 pin MALE) battery Charger Modules (For 832 Units using 3 pin connector) ECv-1276 ECv-1285 ECB-1857 ECB-1858 ECB-1859 300-50 ECB-1855 ECB-1860 ECB-1868 EKT-1236-w3 ECN-1695-w2 ECN-1693 ECN-1695-w1 ECN-1690 Plug-in 120 VAC 50-60Hz charger for use with 120 Vac battery operated units 220 VAC 50-60Hz charger for use with 220 Vac battery operated units 240 VAC 50-60Hz (UK) charger for use with 240 Vac battery operated units EBY-1028 EBY-1029 EBY-1030 Power Supply Module (Bypass battery operated units to direct AC source operation) For 120 Vac models (For 832 Units using 3 pin connector) For 220 240 Vac models (For 832 Units using 3 pin connector) 2010000 2010001 For appropriate inductive probes please refer to pages 7-6 to 7-18
