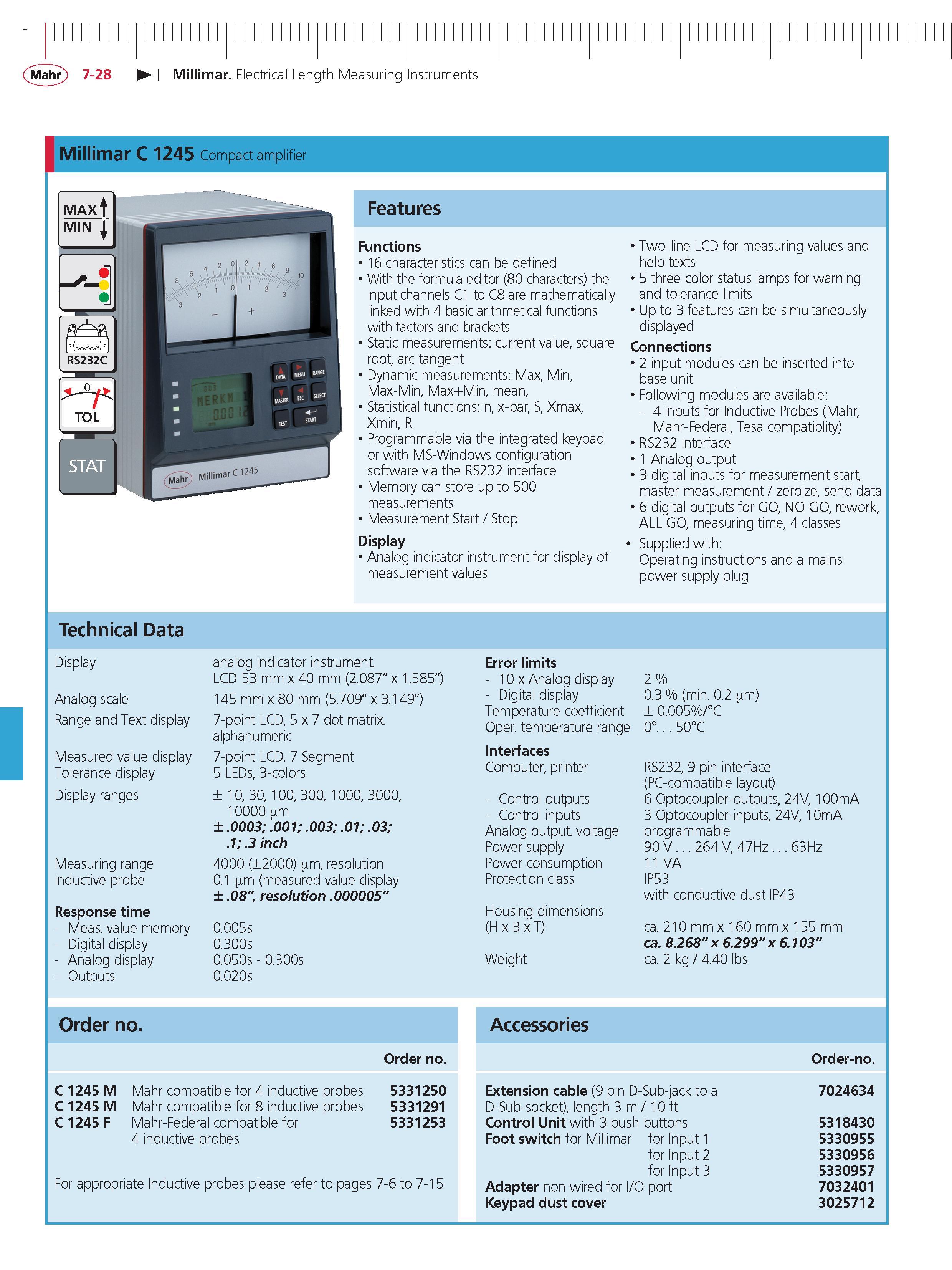

Mahr 7-28 Millimar Electrical Length Measuring Instruments Millimar C 1245 Compact amplifier Features Functions 16 characteristics can be defined With the formula editor (80 characters) the input channels C1 to C8 are mathematically linked with 4 basic arithmetical functions with factors and brackets Static measurements current value square root arc tangent Dynamic measurements Max Min Max-Min Max+Min mean Statistical functions n x-bar S Xmax Xmin R Programmable via the integrated keypad or with MS-Windows configuration software via the RS232 interface Memory can store up to 500 measurements Measurement Start Stop Display Analog indicator instrument for display of measurement values Two-line LCD for measuring values and help texts 5 three color status lamps for warning and tolerance limits Up to 3 features can be simultaneously displayed Connections 2 input modules can be inserted into base unit Following modules are available - 4 inputs for Inductive Probes Mahr Mahr-Federal Tesa compatiblity) RS232 interface 1 Analog output 3 digital inputs for measurement start master measurement zeroize send data 6 digital outputs for GO NO GO rework ALL GO measuring time 4 classes Supplied with Operating instructions and a mains power supply plug Technical data Display Analog scale Range and Text display Measured value display Tolerance display Display ranges Measuring range inductive probe Response time - Meas. value memory - Digital display - Analog display - Outputs analog indicator instrument. LCD 53 mm x 40 mm (2.087" x 1.585" 145 mm x 80 mm (5.709" x 3.149") 7-point LCD 5 x 7 dot matrix. alphanumeric 7-point LCD. 7 Segment 5 LEDs 3-colors 10 30 100 300 1000 3000 10000 m .0003; .001; .003; .01; .03; .1; .3 inch 4000 (2000) m resolution 0.1 m (measured value display .08" resolution .000005" 0.005s 0.300s 0.050s - 0.300s 0.020s Error limits - 10 x Analog display - Digital display Temperature coefficient Oper. temperature range interfaces Computer printer - Control outputs - Control inputs Analog output. voltage Power supply Power consumption Protection class Housing dimensions (H x B x T) Weight 2 % 0.3 % (min. 0.2 m) 0.005% C 0. 50C RS232 9 pin interface (PC-compatible layout) 6 Optocoupler-outputs 24V 100mA 3 Optocoupler-inputs 24V 10mA programmable 90 V . 264 V 47Hz . 63Hz 11 VA IP53 with conductive dust IP43 ca. 210 mm x 160 mm x 155 mm ca. 8.268" x 6.299"x 6.103" ca. 2 kg 4.40 lbs order no. order no. C 1245 M Mahr compatible for 4 inductive probes 5331250 C 1245 M Mahr compatible for 8 inductive probes 5331291 C 1245 F Mahr-Federal compatible for 5331253 4 inductive probes For appropriate Inductive probes please refer to pages 7-6 to 7-15 Accessories order-no. extension cable (9 pin D-Sub-jack to a 7024634 D-Sub-socket) length 3 m 10 ft Control unit with 3 push buttons 5318430 Foot switch for Millimar for Input 1 5330955 for Input 2 5330956 for Input 3 5330957 Adapter non wired for O port 7032401 Keypad dust cover 3025712
