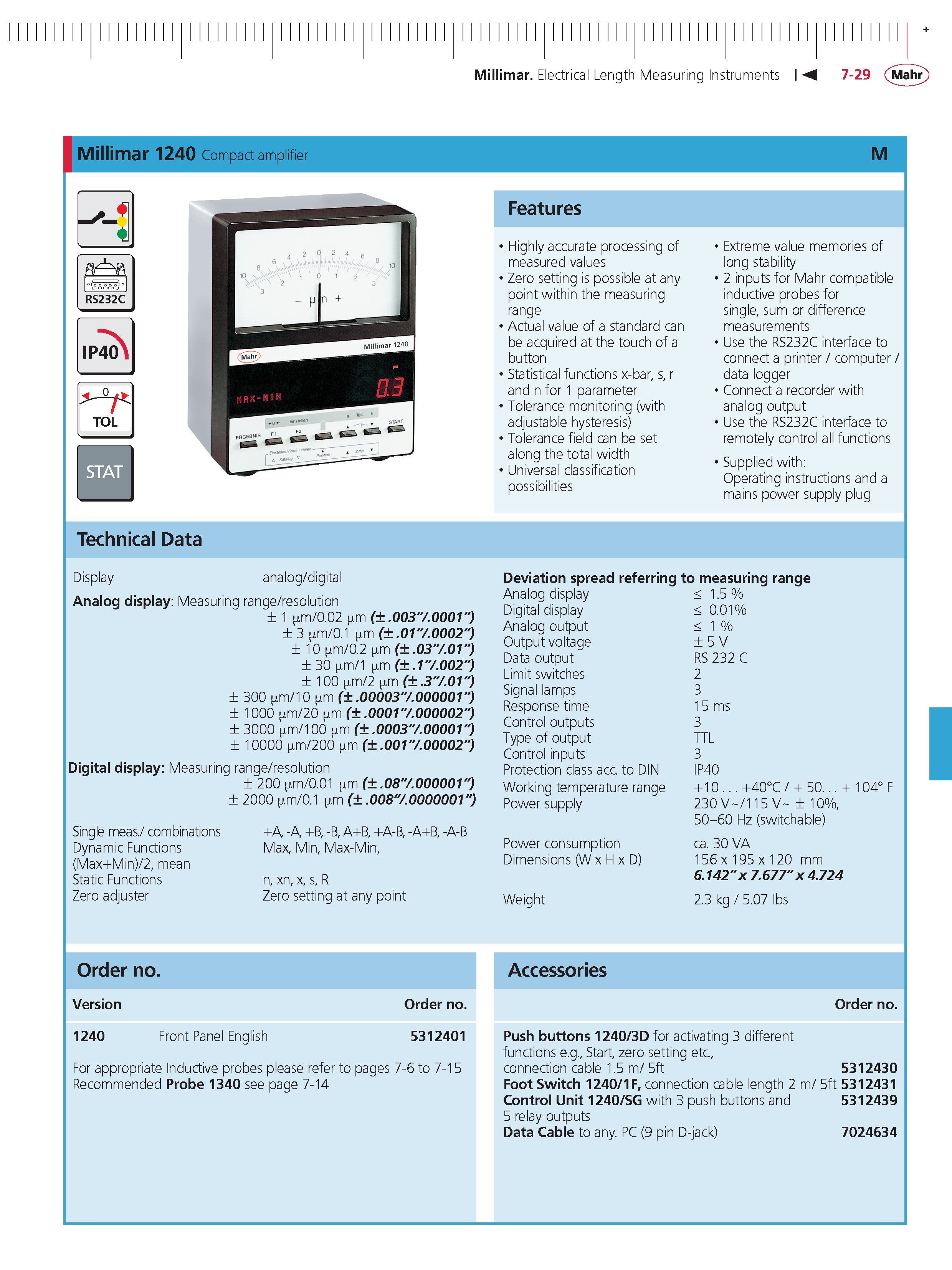

Millimar Electrical Length Measuring Instruments M 7-29 Mahr Millimar 1240 Compact amplifier M f RS232C IP40 Features Highly accurate processing of measured values Zero setting is possible at any point within the measuring range Actual value of a standard can be acquired at the touch of a button Statistical functions x-bar s r and n for 1 parameter Tolerance monitoring (with adjustable hysteresis) Tolerance field can be set along the total width Universal classification possibilities Extreme value memories of long stability 2 inputs for Mahr compatible inductive probes for single sum or difference measurements Use the RS232C interface to connect a printer computer data logger Connect a recorder with analog output Use the RS232C interface to remotely control all functions Supplied with Operating instructions and a mains power supply plug Technical Data Display analog digital Analog display Measuring range resolution 1 .m 0.02 m ( .003" .0001") 3 .m 0.1 m ( .01" .0002") 10 .m 0.2 m ( .03" .01") 30 m 1 m ( .1" .002") 100 m 2 m ( .3" .01") 300 .m 10 m ( .00003" .000001") 1000 m 20 m ( .0001" .000002") 3000 .m 100 m ( .0003" .00001") 10000 m 200 m ( .001" .00002") digital display Measuring range resolution 200 m 0.01 m ( .08" .000001") 2000 m 0.1 m ( .008" .0000001") deviation spread referring to measuring range Analog display 1.5 % Digital display 0.01% Analog output 1 % Output voltage 5 V Data output RS 232 C Limit switches 2 Signal lamps 3 Response time 15 ms Control outputs 3 Type of output TTL Control inputs 3 Protection class acc to DIN IP40 Working temperature range +10 Power supply 230 V +40C + 50. + 104 F 115 V 10% Single meas. combinations Dynamic Functions (Max+Min) 2 mean Static Functions Zero adjuster +A -A +B -B A+B +A-B -A+B -A-1 Max Min Max-Min n xn x s R Zero setting at any point Power consumption Dimensions (W x H x D) Weight 50-60 Hz (switchable) ca. 30 VA 156 x 195 x 120 mm 6.142" x 7.677" x 4.724 2.3 kg 5.07 lbs order no. version 1240 Front Panel English Accessories order no. 5312401 order no. For appropriate Inductive probes please refer to pages 7-6 to 7-15 Recommended Probe 1340 see page 7-14 Push buttons 1240 3D for activating 3 different functions e.g. Start zero setting etc. connection cable 1.5 m 5ft 5312430 Foot Switch 1240 1F connection cable length 2 m 5ft 5312431 Control unit 1240 SG with 3 push buttons and 5312439 5 relay outputs data Cable to any. PC (9 pin D-jack) 7024634 +
