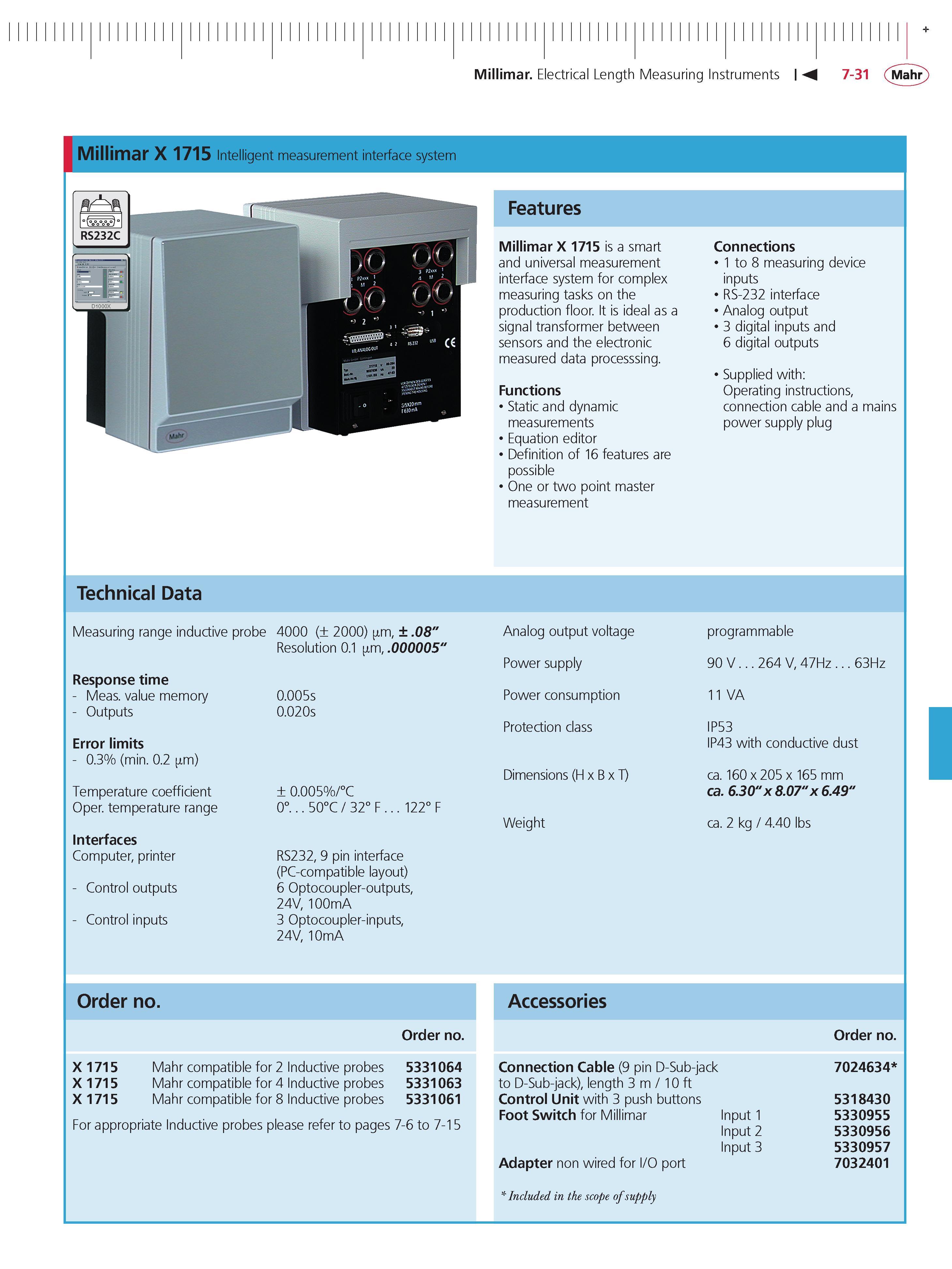

Millimar Electrical Length Measuring Instruments 7-31 Mahr Mil imar X 1715 Intelligent measurement interface system Features Millimar X 1715 is a smart Connections and universal measurement 1 to 8 measuring device interface system for complex inputs measuring tasks on the rS-232 interface production floor. It is ideal as a Analog output signal transformer between 3 digital inputs and sensors and the electronic 6 digital outputs measured data processsing. Supplied with Functions Operating instructions Static and dynamic connection cable and a mains measurements power supply plug Equation editor Definition of 16 features are possible One or two point master measurement Technical Data Measuring range inductive probe Response time - Meas. value memory - Outputs Error limits - 0.3% (min. 0.2 xm) Temperature coefficient Oper. temperature range Interfaces Computer printer - Control outputs - Control inputs 4000 ( 2000) xm .08" Resolution 0.1 xm .000005" 0.005s 0.020s 0.005% C 0. 50C 32 F . 122 F RS232 9 pin interface (PC-compatible layout) 6 Optocoupler-outputs 24V 100mA 3 Optocoupler-inputs 24V 10mA Analog output voltage Power supply Power consumption Protection class Dimensions (H x B x T) Weight programmable 90 V . 264 V 47Hz . 63Hz 11 VA IP53 IP43 with conductive dust ca. 160 x 205 x 165 mm ca. 6.30"x 8.07"x 6.49" ca. 2 kg 4.40 lbs Accessories Connection Cable (9 pin D-Sub-jack to D-Sub-jack) length 3 m 10 ft Control unit with 3 push buttons Foot Switch for Millimar Adapter non wired for O port Included in the scope of supply order no. 7024634 5318430 Input 1 5330955 Input 2 5330956 Input 3 5330957 7032401
