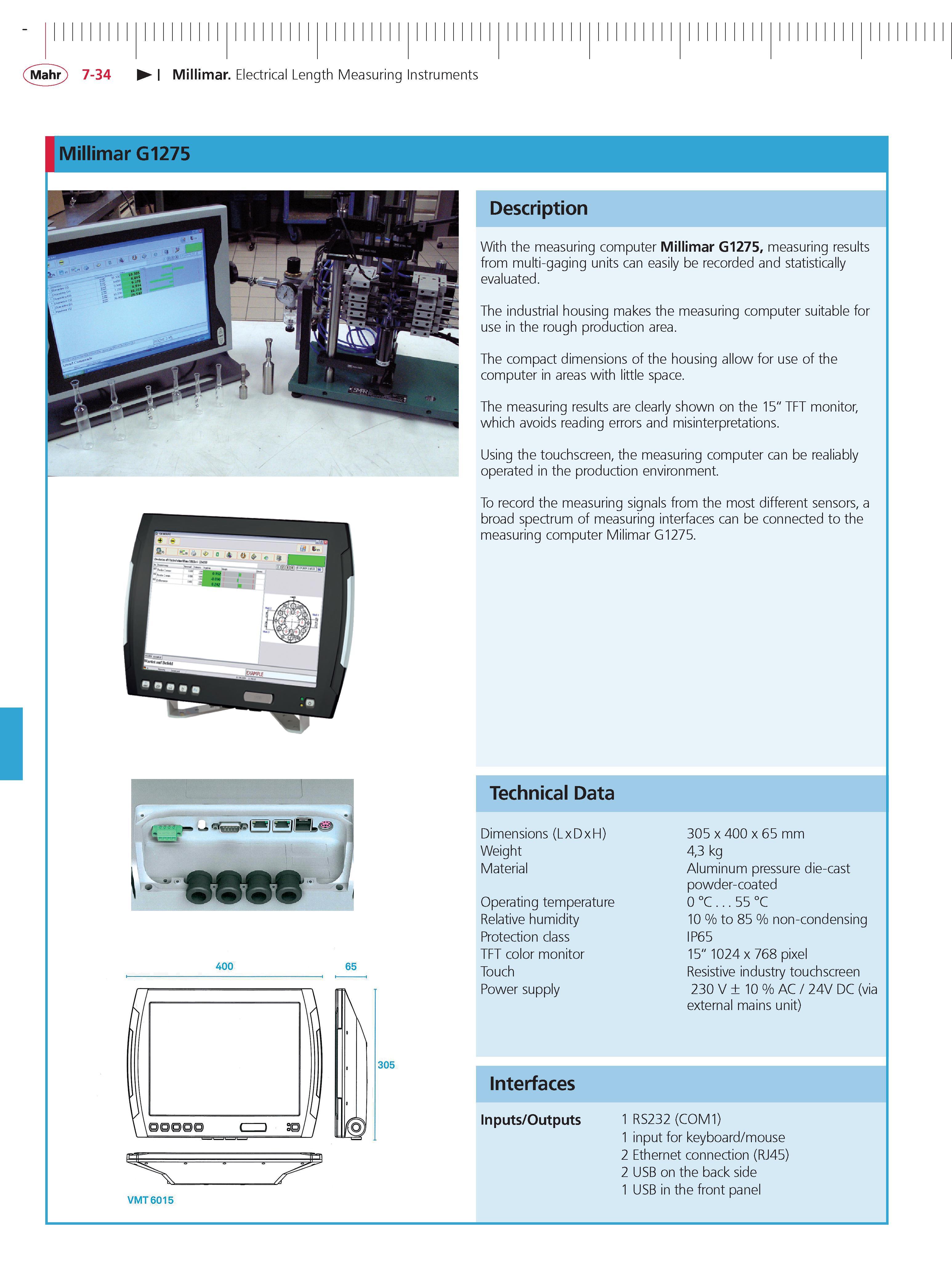

Mahr 7-34 Millimar Electrical Length Measuring Instruments Description With the measuring computer Millimar G1275 measuring results from multi-gaging units can easily be recorded and statistically evaluated. The industrial housing makes the measuring computer suitable for use in the rough production area. The compact dimensions of the housing allow for use of the computer in areas with little space. The measuring results are clearly shown on the 15" TFT monitor which avoids reading errors and misinterpretations. Using the touchscreen the measuring computer can be realiably operated in the production environment. To record the measuring signals from the most different sensors a broad spectrum of measuring interfaces can be connected to the measuring computer Milimar G1275. technical data Dimensions (L x D x H) 305 x 400 x 65 mm Weight 43 kg Material Aluminum pressure die-cast powder-coated Operating temperature 0 C . 55 C Relative humidity 10 % to 85 % non-condensing Protection class IP65 TFT color monitor 15" 1024 x 768 pixel Touch Resistive industry touchscreen Power supply 230 V 10 % AC 24V DC (via external mains unit) Interfaces Inputs outputs 1 RS232 (COM1) 1 input for keyboard mouse 2 Ethernet connection (RJ45) 2 USB on the back side 1 USB in the front panel
