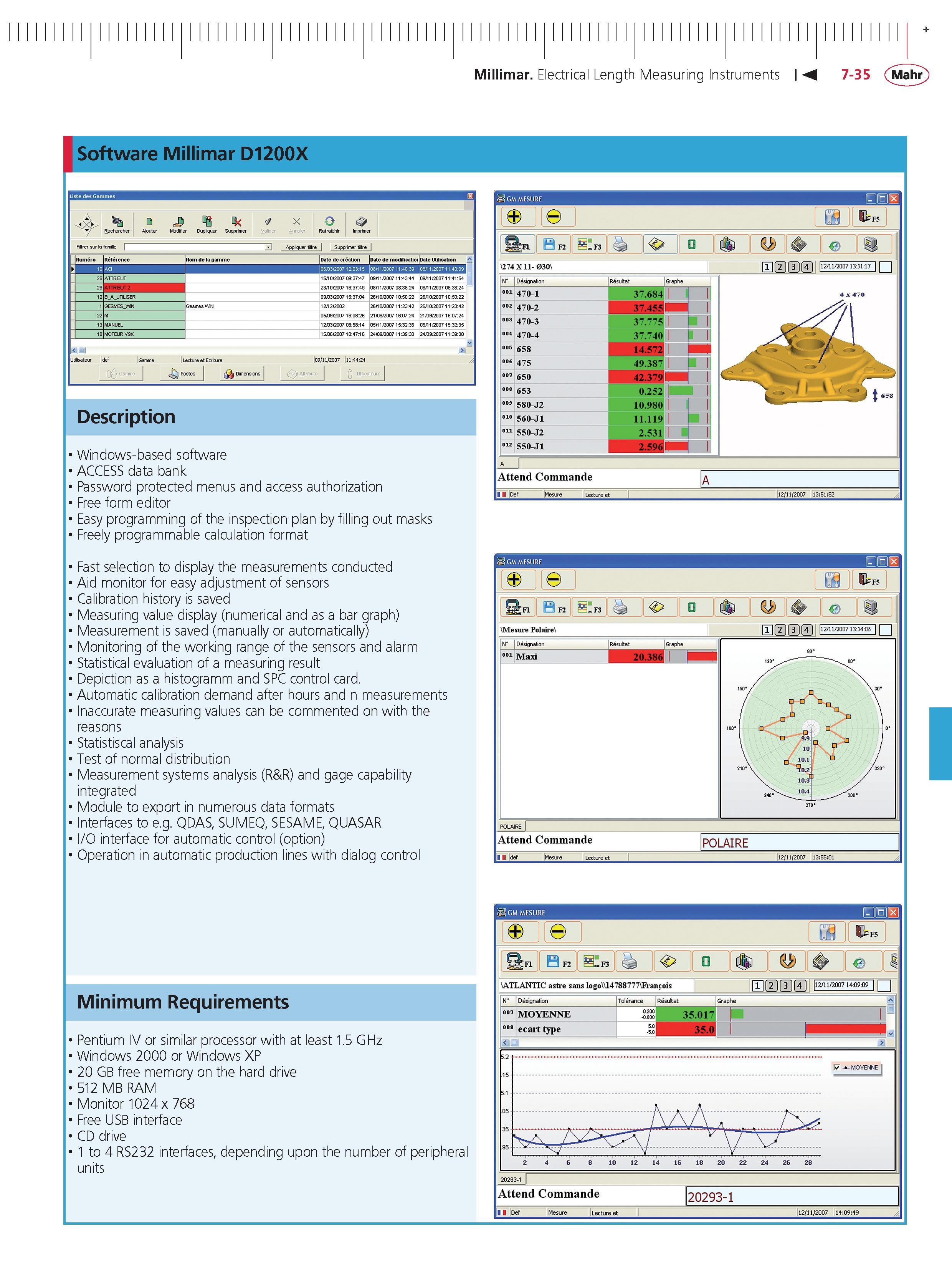

Millimar Electrical Length Measuring Instruments M 7-35 Mahr Software Millimar D1200X Description Windows-based software ACCESS data bank Password protected menus and access authorization Free form editor Easy programming of the inspection plan by filling out masks Freely programmable calculation format Fast selection to display the measurements conducted Aid monitor for easy adjustment of sensors Calibration history is saved Measuring value display (numerical and as a bar graph) Measurement is saved (manually or automatically) Monitoring of the working range of the sensors and alarm Statistical evaluation of a measuring result Depiction as a histogramm and SPC control card. Automatic calibration demand after hours and n measurements Inaccurate measuring values can be commented on with the reasons Statistiscal analysis Test of normal distribution Measurement systems analysis (R&R) and gage capability integrated Module to export in numerous data formats Interfaces to e.g. QDAS SUMEQ SESAME QUASAR O interface for automatic control (option) Operation in automatic production lines with dialog control Minimum Requirements Pentium IV or similar processor with at least 1.5 GHz Windows 2000 or Windows XP 20 GB free memory on the hard drive 512 MB RAM Monitor 1024 x 768 Free USB interface CD drive 1 to 4 RS232 interfaces depending upon the number of peripheral units GM MESURE m a bh Bn & & a O + e 9 274 X11- 03O Li l 2j (Jj liJ l12 11 2007 13:51:17 1 1 1 j N Designation Resultat Graphe 4 X 470 -v 001 470-1 37.684 1 1 1 002 470-2 37.455 1 003 470-3 37.775 1 1 004 470-4 37.740 1 1 1 005 658 14.572 006 475 49.387 i i i 007 650 42.379 i 008 653 0.252 i i 009 580-J2 10.980 i i 010 560-J1 11.119 i n i Oil 550-J2 2.531 H 012 550-J1 2.596 i Attend Commande A Def Mesure Lecture et l2 l 1 2007 l3:51:52 +
