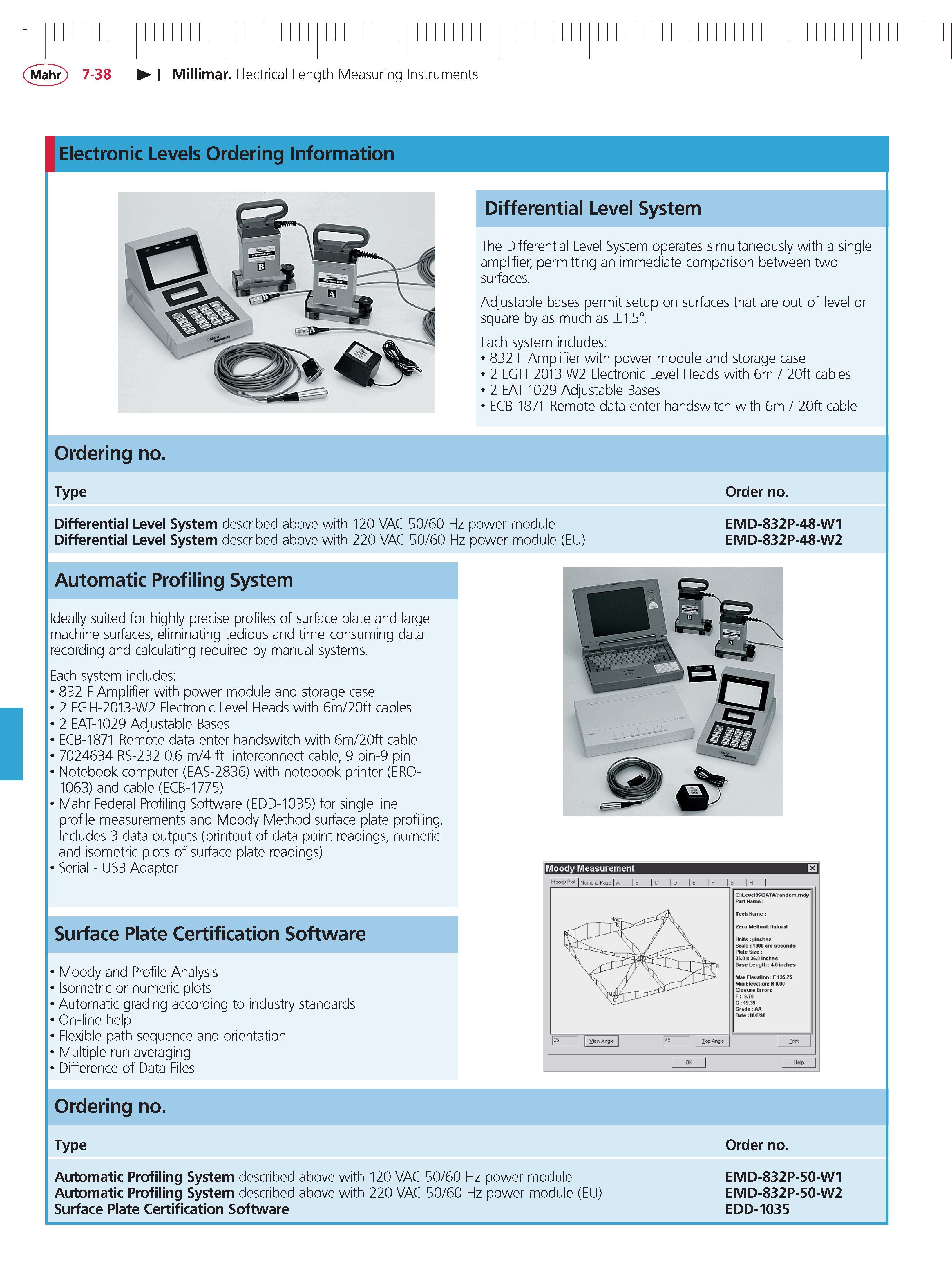

Mahr 7-38 Millimar Electrical Length Measuring Instruments Electronic Levels Ordering Information Differential level System The Differential Level System operates simultaneously with a single amplifier permitting an immediate comparison between two surfaces. Adjustable bases permit setup on surfaces that are out-of-level or square by as much as 1.5. Each system includes 832 F Amplifier with power module and storage case 2 EGH-2013-W2 Electronic Level Heads with 6m 20ft cables 2 EAT-1029 Adjustable Bases ECB-1871 Remote data enter handswitch with 6m 20ft cable ordering no. Type differential level System described above with 120 VAC 50 60 Hz power module differential level System described above with 220 VAC 50 60 Hz power module (EU) order no. EMD-832P-48-w1 EMD-832P-48-w2 Automatic Profiling System Ideally suited for highly precise profiles of surface plate and large machine surfaces eliminating tedious and time-consuming data recording and calculating required by manual systems. Each system includes 832 F Amplifier with power module and storage case 2 EGH-2013-W2 Electronic Level Heads with 6m 20ft cables 2 EAT-1029 Adjustable Bases ECB-1871 Remote data enter handswitch with 6m 20ft cable 7024634 RS-232 0.6 m 4 ft interconnect cable 9 pin-9 pin Notebook computer (EAS-2836) with notebook printer (ERO-1063) and cable (ECB-1775) Mahr Federal Profiling Software (EDD-1035) for single line profile measurements and Moody Method surface plate profiling. Includes 3 data outputs (printout of data point readings numeric and isometric plots of surface plate readings) Serial - USB Adaptor Surface Plate Certification Software Moody and Profile Analysis Isometric or numeric plots Automatic grading according to industry standards On-line help Flexible path sequence and orientation Multiple run averaging Difference of Data Files ordering no. type Automatic Profiling System described above with 120 VAC 50 60 Hz power module Automatic Profiling System described above with 220 VAC 50 60 Hz power module (EU) Surface Plate Certification Software order no. EMD-832P-50-W1 EMD-832P-50-W2 EDD-1035
