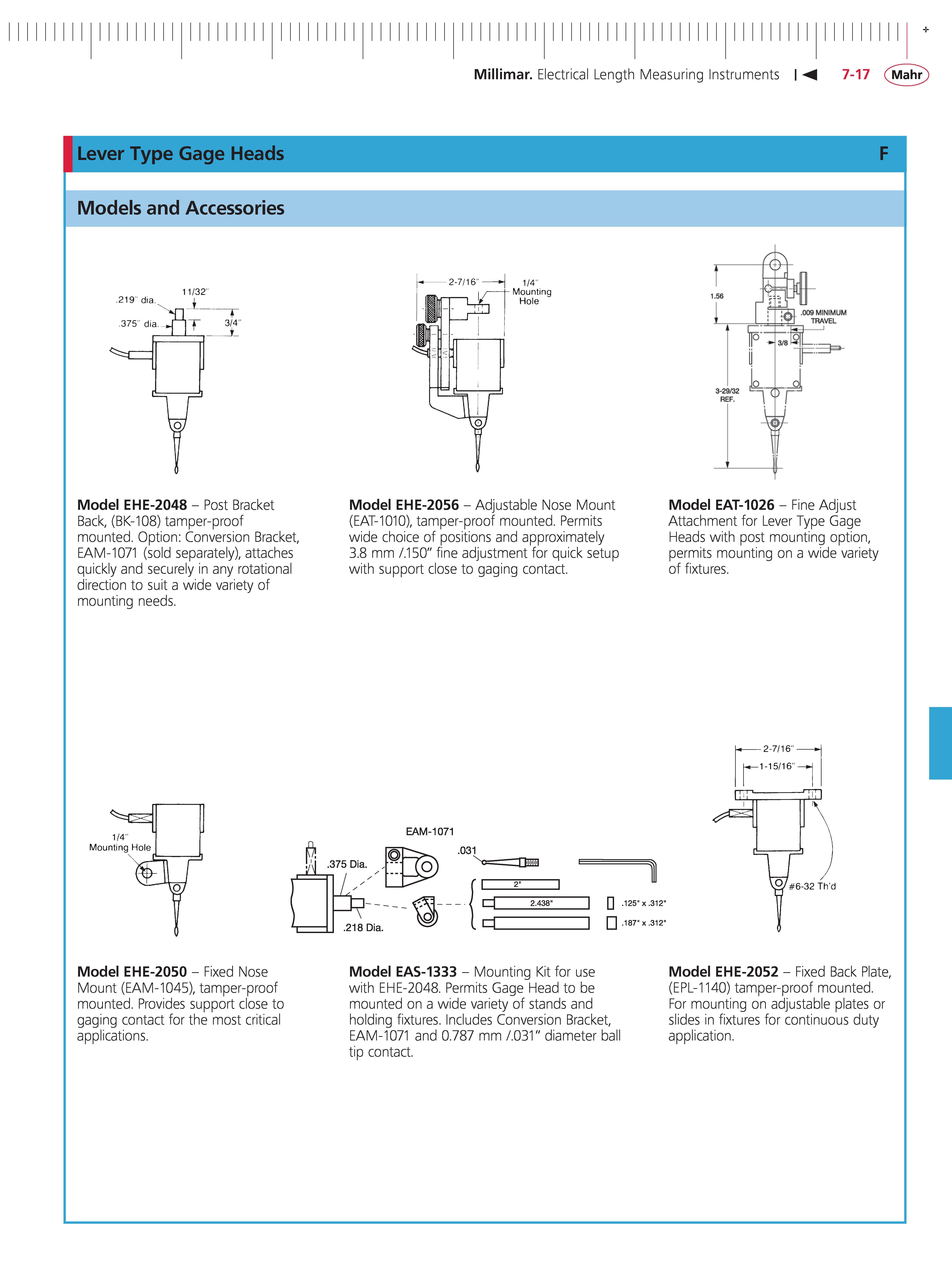

Millimar Electrical Length Measuring Instruments M 7-17 Mahr Lever Type Gage Heads Models and Accessories Model EHE-2048 - Post Bracket Back (BK-108) tamper-proof mounted. Option Conversion Bracket EAM-1071 (sold separately) attaches quickly and securely in any rotational direction to suit a wide variety of mounting needs. Model EHE-2056 - Adjustable Nose Mount (EAT-1010) tamper-proof mounted. Permits wide choice of positions and approximately 3.8 mm .150" fine adjustment for quick setup with support close to gaging contact. Model EAT-1026 - Fine Adjust Attachment for Lever Type Gage Heads with post mounting option permits mounting on a wide variety of fixtures. 1 .375 Dia. EAM-1071 .031 n- jiiiirai .125" x.312" .187" x.312" Model EHE-2050 - Fixed Nose Mount (EAM-1045) tamper-proof mounted. Provides support close to gaging contact for the most critical applications. Model EAS-1333 - Mounting Kit for use with EHE-2048. Permits Gage Head to be mounted on a wide variety of stands and holding fixtures. Includes Conversion Bracket EAM-1071 and 0.787 mm .031" diameter ball tip contact. Model EHE-2052 - Fixed Back Plate (EPL-1140) tamper-proof mounted. For mounting on adjustable plates or slides in fixtures for continuous duty application. + F
